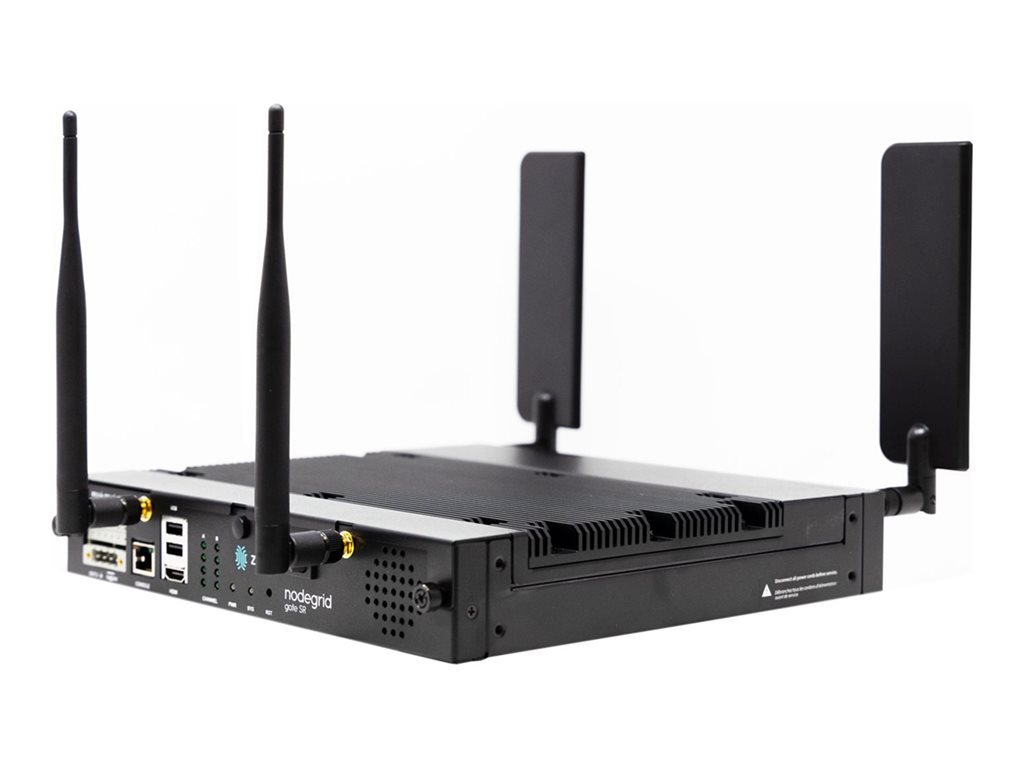

Wireless router 4-port switch - 1GbE
| Main Specifications | |
|---|---|
| Product Description | ZPE Nodegrid Gate SR - wireless router - desktop |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPv6, IPv4, HTTPs, IPSec |
| Remote Management Protocol | SSH, Telnet, SNMP |
| Features | Port sharing, port custom field support, port icon configuration, port search, break-over SSH support, device clustering across multiple Nodegrid units, direct access by port name, Zero Touch Auto Provisioning, NTP support, auto-discovery, user levels of access, RESTful APIs, WAN/ZPE Cloud, gateway mode, DHCP server |
| Compliant Standards | X.509 |
| Power | DC 36 - 75 V |
| Dimensions (WxDxH) | 9.1 in x 9.5 in x 1.7 in |
| Weight | 31.74 oz |
| General | |
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Simultaneous sessions: 1000+ |
| Network / Transport Protocol | TCP/IP, IPv6, IPv4, HTTPs, IPSec |
| Remote Management Protocol | SSH, Telnet, SNMP |
| Encryption Algorithm | 4096-bit RSA, TLS, MD5, SHA |
| Authentication Method | X.509 certificates, LDAP, TACACS+, RADIUS, Kerberos |
| Features | Port sharing, port custom field support, port icon configuration, port search, break-over SSH support, device clustering across multiple Nodegrid units, direct access by port name, Zero Touch Auto Provisioning, NTP support, auto-discovery, user levels of access, RESTful APIs, WAN/ZPE Cloud, gateway mode, DHCP server |
| Compliant Standards | X.509, TLS v1.1, TLS v1.2, TLS v1.0, SSL |
| Processor | 1 x Intel |
| RAM | 8 GB DDR4 SDRAM |
| Hard Drive | 32 GB |
| Expansion / Connectivity | |
| Interfaces | Serial: 8 x RJ-45 ¦ 2 x 10GBase-T - SFP+ ¦ LAN: 5 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 2 x GPIO ¦ 1 x DO ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x HDMI - 19 pin HDMI Type A |
| Power | |
| Voltage Required | DC 36 - 75 V |
| Power Consumption Operational | 45 Watt |
| Software / System Requirements | |
| OS Provided | Nodegrid OS (64-bit) |
| Software Included | Command Line Interface (CLI) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 31.74 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.7 in |
| Shipping Depth | 13.7 in |
| Shipping Height | 7 in |
| Shipping Weight | 7.94 lbs |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
