Console server - 16 ports - 1GbE, RS-232 - rack-mountable - for ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442
| Main Specifications | |
|---|---|

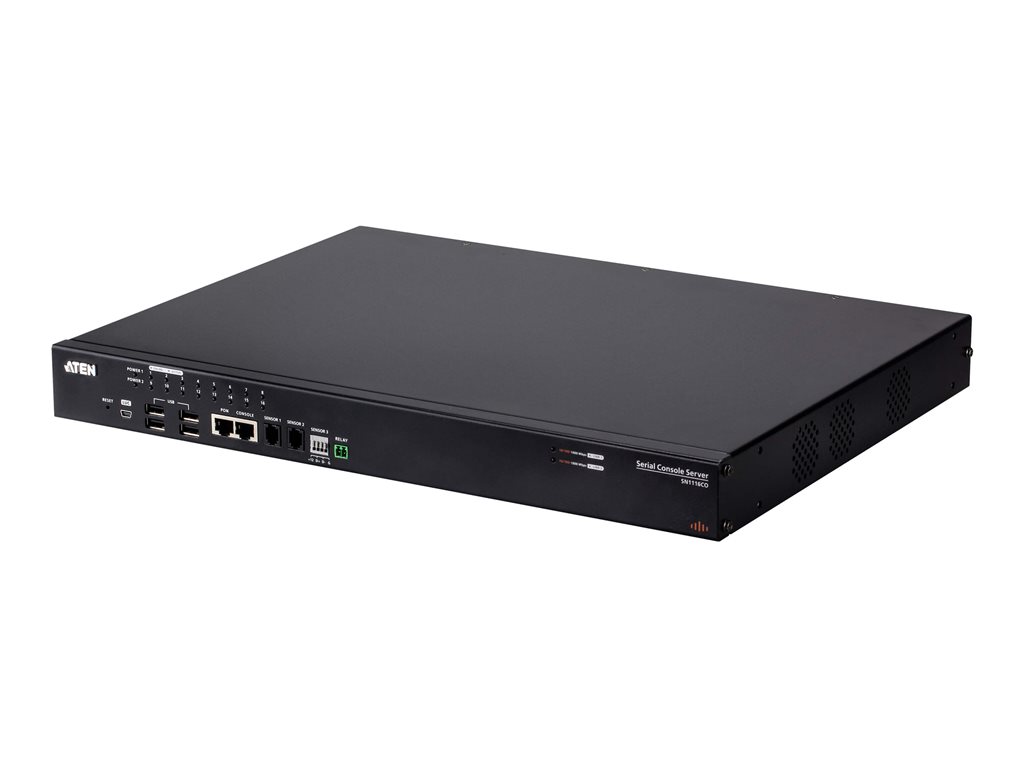

| Product Description | ATEN SN1116CO - console server |
| Device Type | Console server |
| Form Factor | Rack-mountable |
| Ports Qty | 16 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Included Accessories | 2 x power cords, 4 foot pads, rack mount kit |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 12.9 in x 1.7 in |
| Weight | 9.94 lbs |
| Manufacturer Warranty | 3-year warranty |
| Designed For | ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442 |
| General | |
| Device Type | Console server |
| Width | 17.3 in |
| Depth | 12.9 in |
| Height | 1.7 in |
| Weight | 9.94 lbs |
| Expansion / Connectivity | |
| Interfaces | 16 x RS-232 - RJ-45 ¦ 2 x 10/100/1000Base-T - SFP ¦ 1 x console - RJ-45 ¦ 4 x USB - Type A ¦ 1 x management (mini-USB) - Type B ¦ 1 x PON - RJ-45 ¦ 2 x sensor - RJ-11 ¦ 1 x sensor - terminal block ¦ 1 x relay - terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x power cords, 4 foot pads, rack mount kit |
| Cables Included | 1 x USB cable |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 16 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Network / Transport Protocol | IPv4, IPv6, TCP/IP, UDP/IP |
| Remote Management Protocol | Telnet, SSH, Syslog, SNMP 1, SNMP 2c, SNMP 3, SMTP, CLI |
| Status Indicators | Power, LAN, serial |
| Features | Laptop USB Console (LUC) port, reset button, metal housing, MAC address filtering, IP address filtering, SNMP trap, e-mail notification, event log, firmware upgradable, NTP support, LLDP support |
| Encryption Algorithm | TLS 1.2, 2048-bit RSA, FIPS 140-2 Level 1 |
| Authentication Method | RADIUS, TACACS+, LDAP, Active Directory, Kerberos |
| Compliant Standards | IEEE 802.1x |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Compatibility Information | |
| Designed For | ATEN 2A-136G, 2A-137G, CC2000, EA1240, EA1340, EA1440, EA1441, EA1442 |
