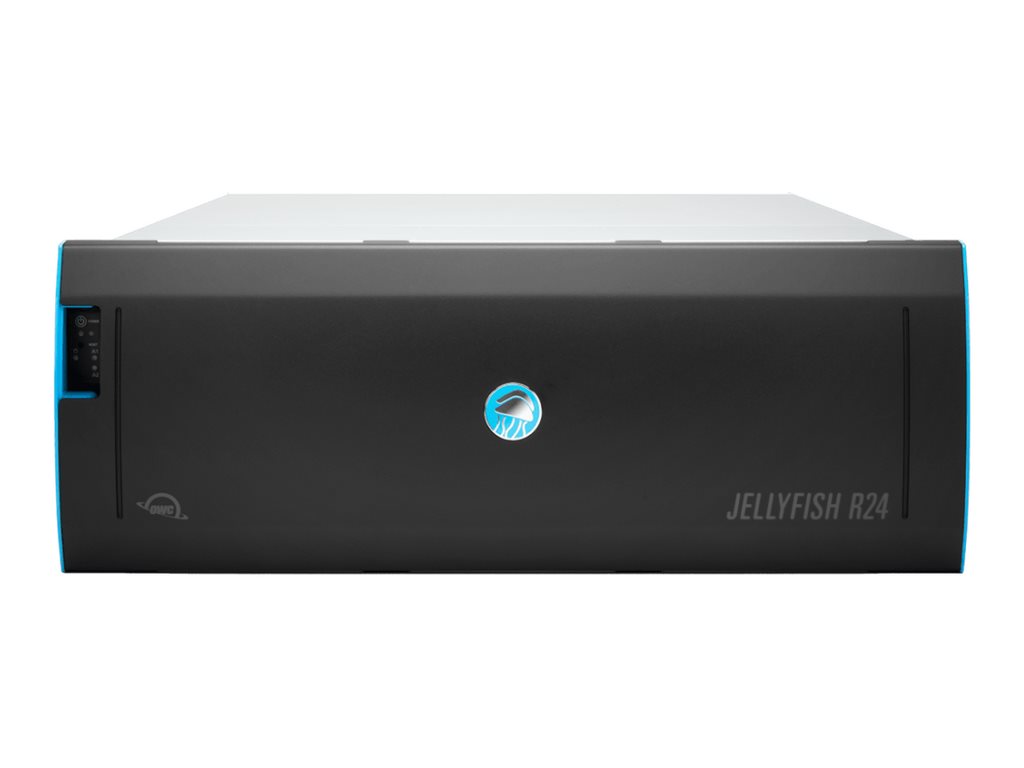

NAS server - 24 bays - 144 TB - rack-mountable - SSD 144 TB - RAID RAID-Z2 - RAM 512 GB - Gigabit Ethernet - 4U
| Main Specifications | |
|---|---|
| Product Description | OWC Jellyfish R24 - NAS server - 144 TB |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total Storage Capacity | 144 TB |
| Max Supported Capacity | 432 TB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Dimensions (WxDxH) | 17 in x 12.5 in x 7.8 in |
| Weight | 35.05 lbs () |
| Processor | 2 x Intel Xeon Silver 2.4 GHz (16-core) |
| Storage Controller | RAID RAID RAID-Z2 |
| Hard Drive | 144 TB |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE |
| RAM | 512 GB |
| Power Redundancy | Yes |
| System Requirements | Windows, Apple MacOS, Linux |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total Storage Capacity | 144 TB |
| Max Supported Capacity | 432 TB |
| Installed Devices / Modules Qty | 0 (installed) / 24 (max) |
| Width | 17 in |
| Depth | 12.5 in |
| Height | 7.8 in |
| Weight | 35.05 lbs () |
| Built-in Devices | LED panel |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.0 ¦ 1 x VGA - HD-15 ¦ 1 x IPMI (management) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | Intelligent Platform Management Interface (IPMI), NLE compatibility |
| Compliant Standards | Plug and Play |
| Included Accessories | 2 x power cables, rack rail kit |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | SMB, NFS, FTP |
| Remote Management Protocol | SSH |
| Features | Rsync compatible, DHCP support |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 875 Watt |
| Software / System Requirements | |
| Software Included | DaVinci Resolve Collaborative, Kyno for OWC Jellyfish, Jellyfish Media Engine, Jellyfish Manager, Jellyfish Connect, Jellyfish Remote Access |
| OS Required | Windows, Apple MacOS, Linux |
| Environmental Parameters | |
| Sound Emission | 71 dB |
| Storage Controller | |
| Type | RAID |
| RAID Level | RAID-Z2 |
| Hard Drive | |
| Type | SSD |
| Capacity | 144 TB |
| Processor / Memory | |
| Processors Installed | 2 x Intel Xeon Silver 2.4 GHz |
| Number of Cores | 16-core |
| Max Supported Qty | 2 |
| RAM | 512 GB DDR4 |
| Features | ECC |
