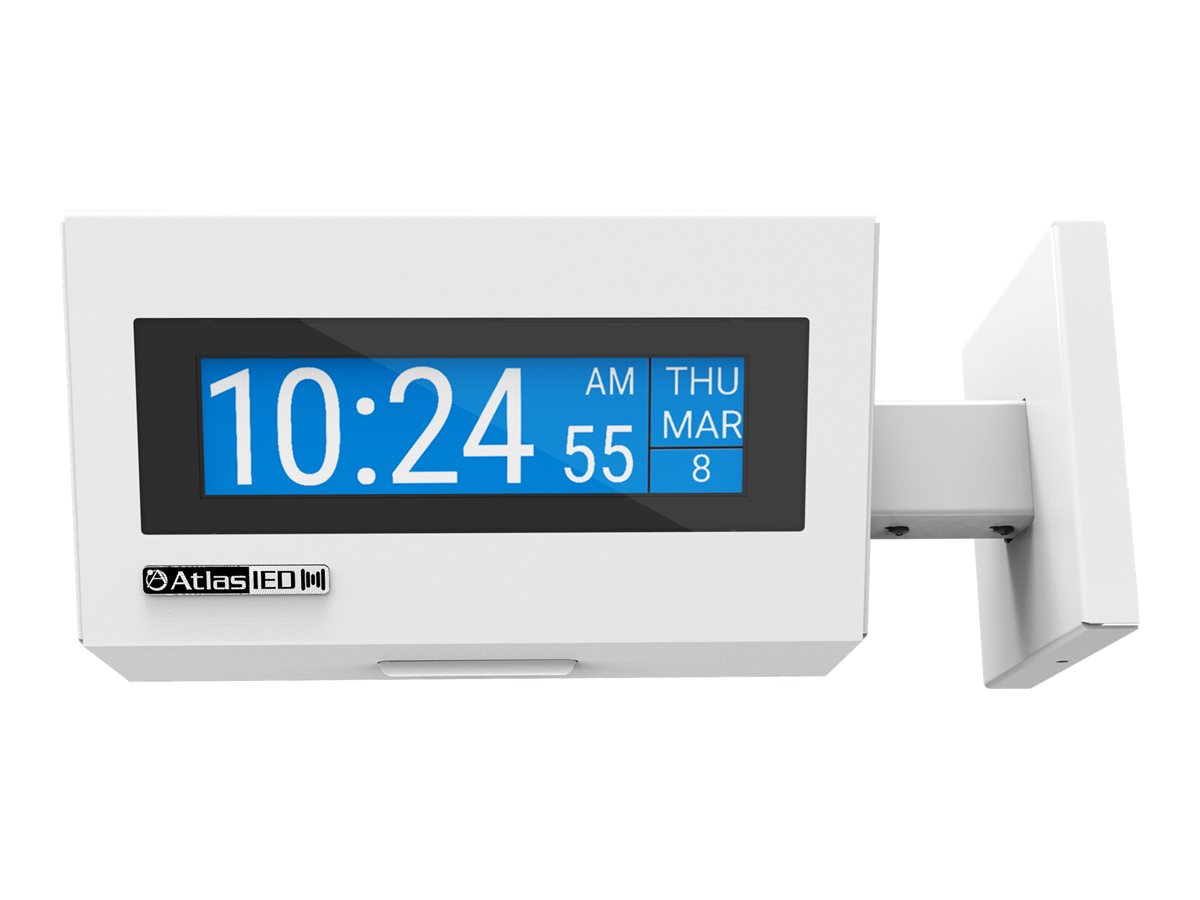

IP intercom display module - dual sided, PoE+ IP compliant, with LED flasher - wired - 10/100 Ethernet - white
| Main Specifications | |
|---|---|
| Product Description | AtlasIED IPX Series IP-DD - IP intercom display module - dual sided, PoE+ IP compliant, with LED flasher - white |
| Product Type | IP intercom display module |
| Environment | Indoor |
| Placing / Mounting | Wall-mounting, ceiling-mounting |
| Functions | Time and date display, scrolling text |
| Integrated Components | LED flasher, amplifier |
| Power Source | PoE |
| Connectivity | Wired - 10/100 Ethernet |
| Display | LCD - 16 million color |
| Color | White |
| Manufacturer Warranty | 1-year warranty |
| Dimensions (WxDxH) | 19.9 in x 7 in x 9.9 in |
| General | |
| Product Type | IP intercom display module |
| Environment | Indoor |
| Functions | Time and date display, scrolling text |
| Integrated Components | LED flasher, amplifier |
| Power Source | PoE |
| Placing / Mounting | Wall-mounting, ceiling-mounting |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet, IEEE 802.3at |
| Display | LCD - 16 million color |
| Interfaces Details | 2 x trigger ¦ Relay output ¦ Balanced audio input ¦ Balanced audio output ¦ 2 x speaker output ¦ LAN |
| Features | Dual sided LCD, Survivable Remote Site Telephony (SRST) support, SIP compliant, PoE, static IP address support, dynamic IP address assignment, TFTP server, HTTP server, DHCP Option 66, DHCP Option 150, DHCP Option 72, SuperLoop Protection (SLP), Live Status Network, convection ventilation cooling, passive cooling, Network Timing Protocol (NTP), VoIP support |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Color | White |
| Voltage Required | DC 24 V |
| Warranty | 1-year warranty |
| Compliant Standards | cETLus, FCC, BAA, EN 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1 CB Scheme, ADA, IEEE 802.3, IEEE 802.1Q, IEEE 802.3at, G.711 U-Law, G.711 A-Law, G.722 |
| Dimensions & Weight | |
| Width | 19.9 in |
| Depth | 7 in |
| Height | 9.9 in |
| Weight | 0.18 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 25.4 in |
| Shipping Depth | 12.8 in |
| Shipping Height | 10.6 in |
| Shipping Weight | 16.09 lbs |
