Digital zone processor / amplifier
| Main Specifications | |
|---|---|

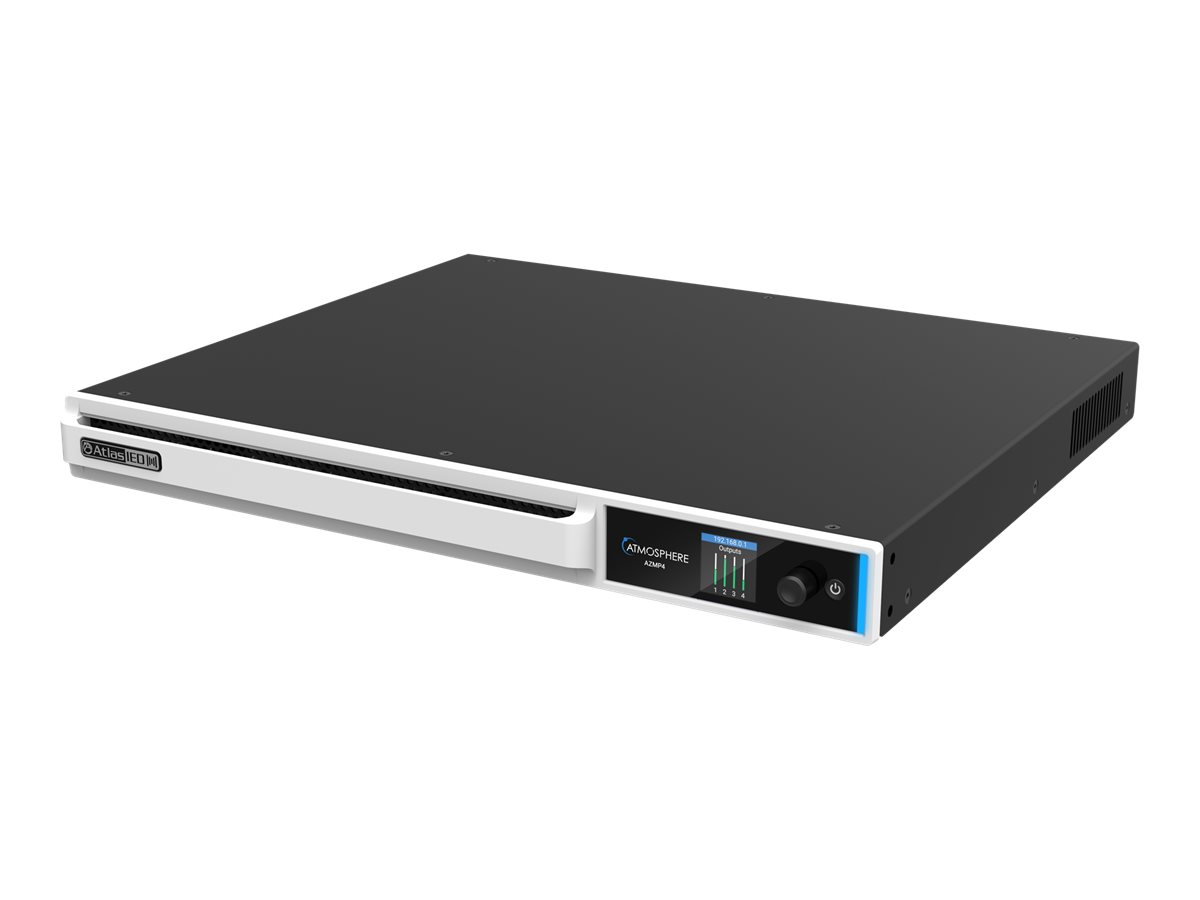

| Product Description | AtlasIED Atmosphere AZMP4 digital zone processor / amplifier |
| Type | Digital zone processor / amplifier |
| Dimensions (WxDxH) | 19 in - 17 in - 1.8 in |
| Weight | 13.01 lbs |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Digital zone processor / amplifier |
| Width | 19 in |
| Depth | 17 in |
| Height | 1.8 in |
| Weight | 13.01 lbs |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50 - 60 Hz |
| Power Consumption | 875 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 18.63 lbs |
| Terminals | |
| Terminals | (4) x audio line-in / microphone - terminal block - balanced ¦ (2) - RCA ¦ (4) x audio line-out - terminal block ¦ (6) x general purpose input - terminal block ¦ (1) x high priority input - terminal block ¦ (2) x accessory port - RJ-45 ¦ (2) x amplified output port - RJ-45 ¦ (4) x amplified output |
| Studio & Production Equipment | |
| Features | Built-in 600 watts audio amplifier, Power Sharing technology, system self test, bell scheduler, message player, subwoofer support, auto noise compensation, loud noise detection, accessory self-heal, Dante audio encoding, 4 processed system zones, rack-mountable, 1RU frame |
