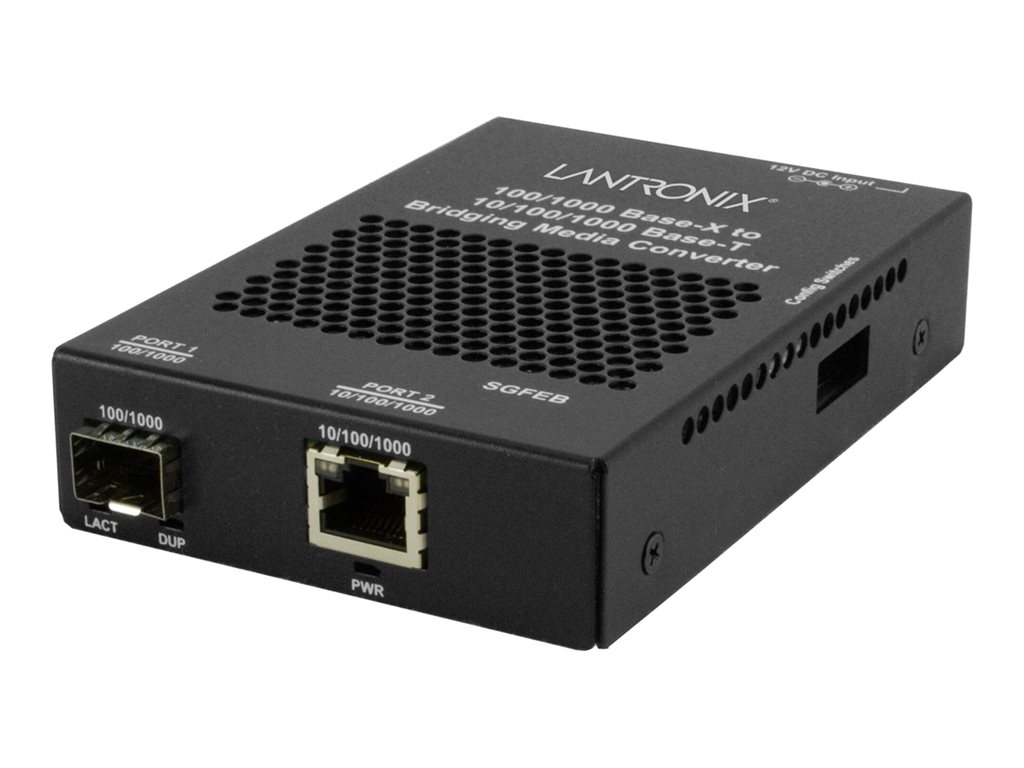

Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 100/1000Base-X - RJ-45 / SFP (mini-GBIC) - up to 328 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix SGFEB Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / SFP (mini-GBIC) |
| Form Factor | External |
| Localization | Latin America |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 100/1000Base-X |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Max Transfer Distance | 328 ft |
| Dimensions (WxDxH) | 1 in x 4.8 in x 3.2 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Latin America |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-X - SFP female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Power supply |
| Compliant Standards | EN 55022 Class A, EN55024, FCC Class A certified, UL 60950, CSA, NDAA |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 100/1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 328 ft |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Pass-Through, Far End Fault (FEF), Remote-Fault-Detection (RFD), 8 dB link budget, Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 2.2 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 1 in |
| Depth | 4.8 in |
| Height | 3.2 in |
| Weight | 31.74 oz |
