Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

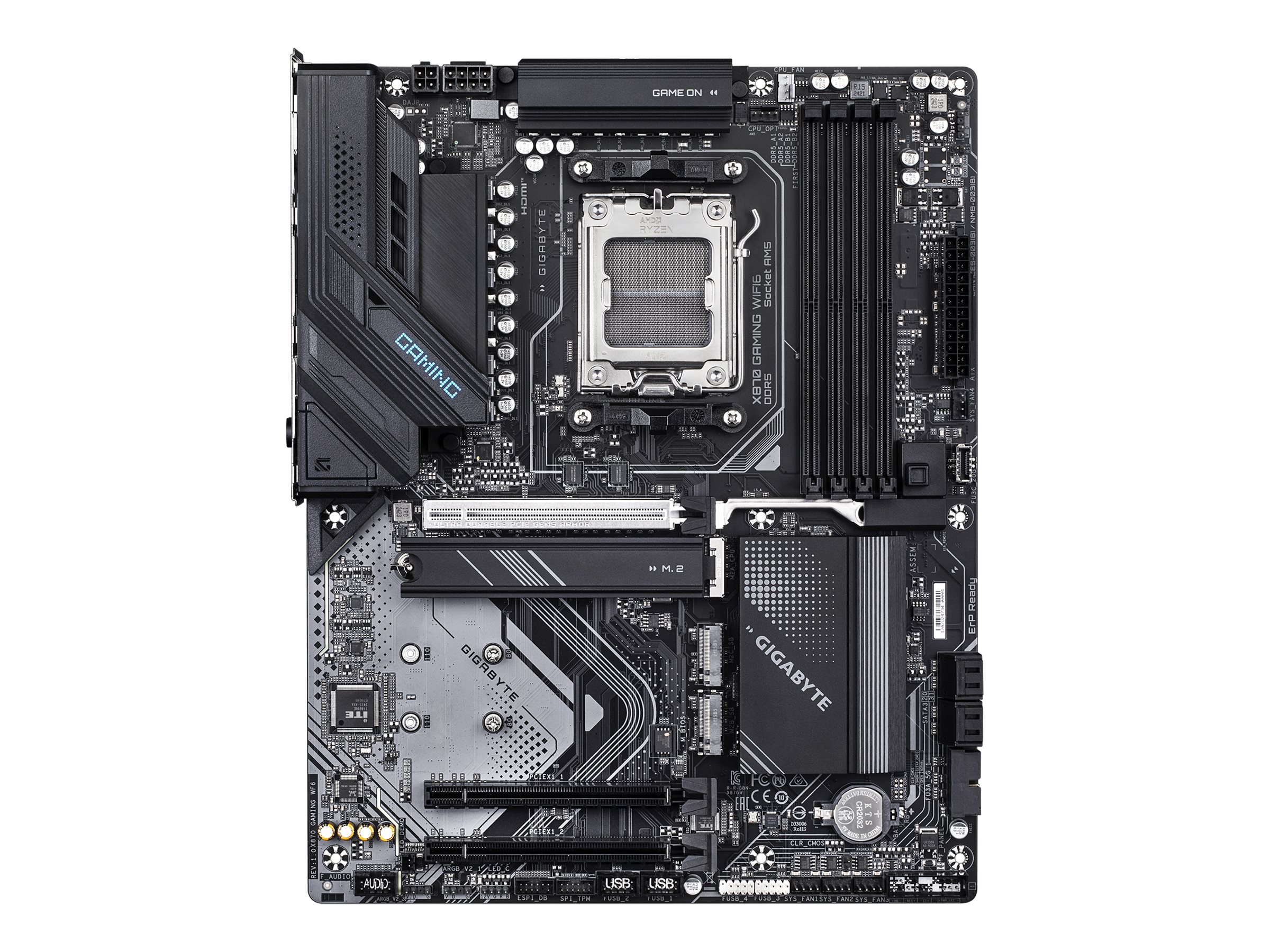

| Product Description | Gigabyte X870 GAMING WIFI6 - motherboard - ATX - Socket AM5 - AMD X870 |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 2 x antenna ¦ 1 x HDMI ¦ 1 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Miscellaneous | |
| Included Accessories | Wi-Fi antenna, G-Connector, M.2 screw package |
| Cables Included | 2 x SATA Express cable |
| Software Included | HWiNFO, GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | DisplayPort 1.4, HDCP 2.3 |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| Hardware Features | Q-Flash, Q-Flash Plus, Q-Flash Plus button, 8+2+2 Phase Power Design, WIFI EZ-Plug, M.2 EZ Latch plus, PCIe EZ Latch Plus, 2x Copper PCB, M.2 EZ Latch click, M.2 Thermal Guard, VRM Thermal Armor Advanced, DIY Friendly Design, EZ Debug LED, GIGABYTE Smart Fan 6, RGB FUSION, AI SNATCH Engine, Ultra Durable, VRM heatsink design |
| LAN | |
| Network Controller | Realtek RTL8851BE |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
