Network surveillance camera - PTZ - color - 2 MP - 1920 x 1080 - manual iris - motorized - audio - HDMI, 3G-SDI - LAN - USB 3.0 - H.264, MJPEG - DC 12 V / PoE
| Main Specifications | |
|---|---|
| Product Description | Marshall CV620-BI2 - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom |
| Audio | Yes: built-in microphone |
| Camera Mount Type | Ceiling mount, surface mount |
| Dimensions (WxDxH) | 6.9 in x 7.1 in x 7.7 in |
| Weight | 4.19 lbs |
| Color | Black |
| Connectivity Technology | Wired |
| Camera | Color |
| Optical Zoom | 20 x |
| Max Resolution | 1920 x 1080 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 1080i, 1080p, 720p |
| Optical Sensor Type | 1/2.8" - 2 MP |
| Focal Length Control | Motorized zoom |
| Focal Length | 5.33 mm - 110 mm |
| Focus Adjustment | Automatic, manual (min distance 5 ft) |
| Lens Iris | F/1.6-3.8 - manual iris |
| Panning Range (degree) | -170 to +170 |
| Tilting Range (degree) | -30 to 90 |
| Interfaces | USB 3.0, HDMI, 3G-SDI, LAN |
| Control Interface | RS-422, RS-232 |
| Voltage | DC 12 V / PoE |
| Features | Sony IMX327 sensor, FreeD protocol support, tally light, 3D Noise Reduction Technology, auto exposure control, auto gain control, auto white balance, manual exposure, manual gain control, manual white balance, Wide Dynamic Range (WDR), 128 preset positions, image flip, infrared remote control, Multicast Streaming, ONVIF (Profile S) support, VISCA over IP, VISCAIP protocol support, reset button, security lock slot (cable lock sold separately), firmware upgradable |
| Manufacturer Warranty | 3-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: built-in microphone |
| Audio Formats | AAC, G.711 |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Width | 6.9 in |
| Depth | 7.1 in |
| Height | 7.7 in |
| Weight | 4.19 lbs |
| Expansion / Connectivity | |

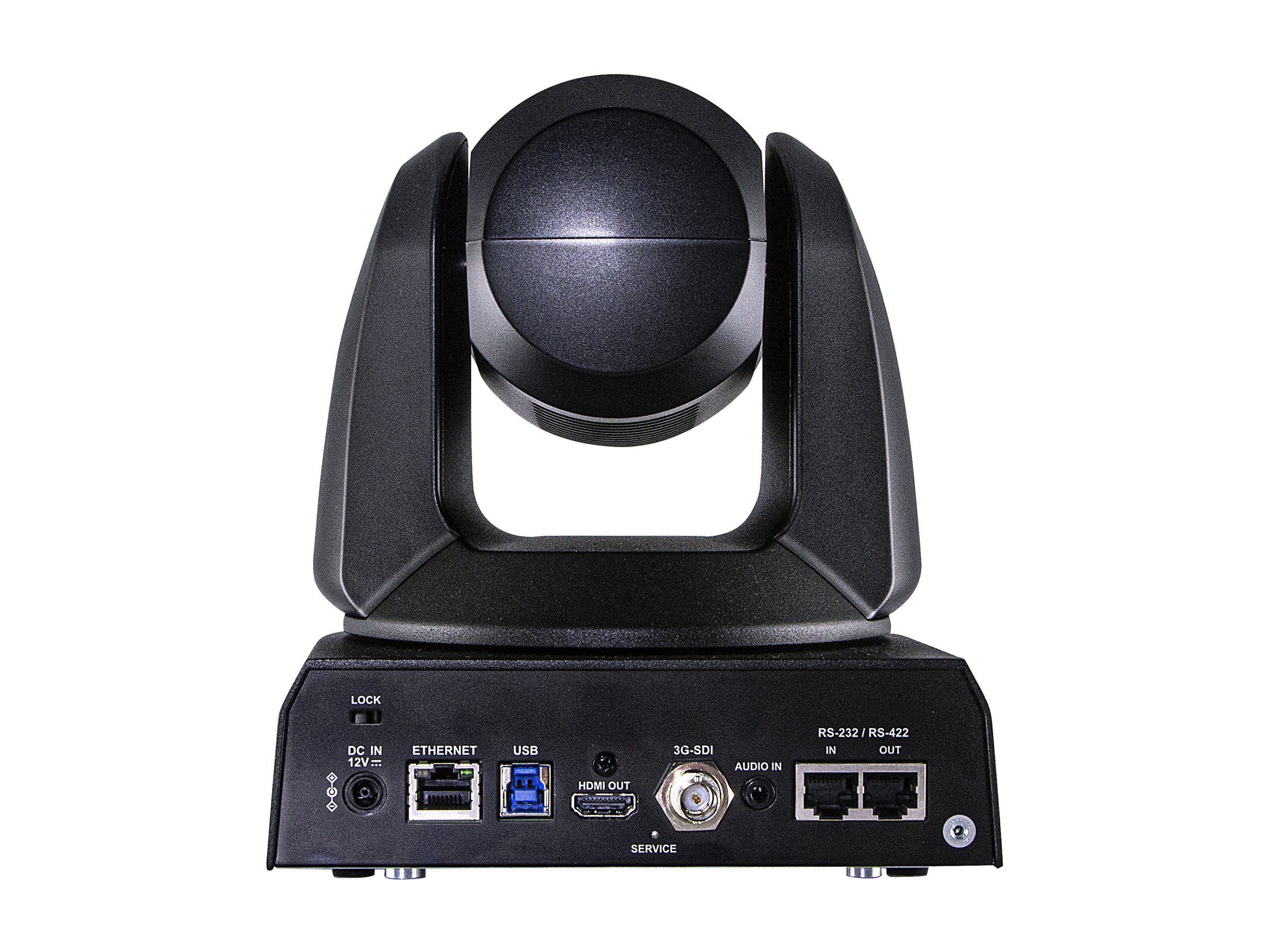

| Ports | HDMI output - HDMI Type A ¦ 3G-SDI - BNC ¦ Serial RS-232/RS-422 input ¦ Serial RS-232/RS-422 output ¦ USB 3.0 - 9 pin USB Type B ¦ LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm stereo jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control, mounting hardware |
| Compliant Standards | FCC Part 15 |
| Color | Black |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | Power adapter - external 10 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264, MJPEG |
| Max Digital Video Resolution | 1920 x 1080 |
| Video Modes | 1080i, 1080p, 720p |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Video Capture | 1920 x 1080 @ 50/60 fps ¦ 1280 x 720 @ 50/60 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps |
| Features | Sony IMX327 sensor, FreeD protocol support, tally light, 3D Noise Reduction Technology, auto exposure control, auto gain control, auto white balance, manual exposure, manual gain control, manual white balance, Wide Dynamic Range (WDR), 128 preset positions, image flip, infrared remote control, Multicast Streaming, ONVIF (Profile S) support, VISCA over IP, VISCAIP protocol support, reset button, security lock slot (cable lock sold separately), firmware upgradable |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 5.33 mm - 110 mm |
| Lens Iris | F/1.6-3.8 manual iris |
| Focus Adjustment | Automatic, manual |
| Min Focus Distance | 5 ft |
| Horizontal Field of View (degree) | 3.7 - 57 |
| Image Sensor | |
| Type | 2 MP 1/2.8" |
| Interfaces | |
| Video | HDMI, 3G-SDI |
| Network Interface | LAN |
| Network Protocols | HTTP, RTSP, RTMP, RTP, TCP, UDP, SRT, RTMPS, CGI |
| Computer Interface | USB 3.0 |
| Control Interface | RS-422, RS-232 |
| Panning | |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 225 |
| Tilting | |
| Range (degree) | -30 to 90 |
| Speed (degree/sec) | Up to 225 |
