Interface adapter - M.2 NVMe Card - RAID 0 - PCIe 4.0 x16
| Main Specifications | |
|---|---|

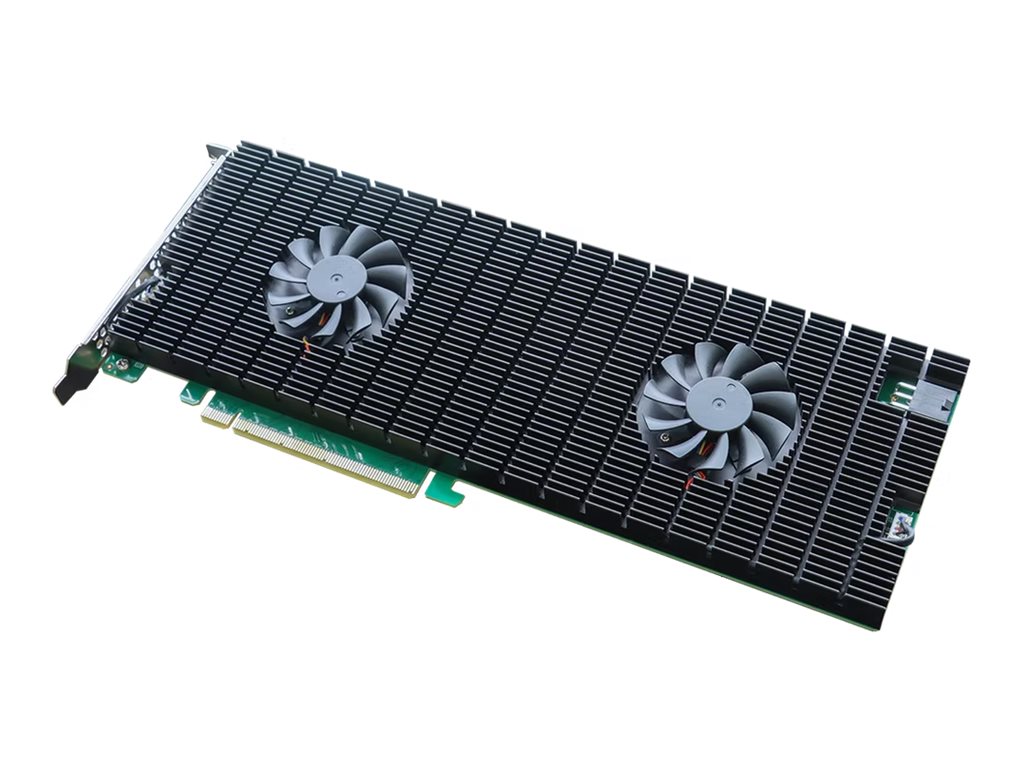

| Product Description | HighPoint RocketAIC 7540HW - interface adapter - M.2 NVMe Card - PCIe 4.0 x16 |
| Device Type | Interface adapter - plug-in card |
| Bus Type | PCIe 4.0 x16 |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 28 GBps |
| Supported Devices | Disk array (RAID), solid state drive |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0 |
| System Requirements | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Hyper-V Server, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux, Red Hat Enterprise Linux |
| Dimensions (WxDxH) | 11.2 in x 0.9 in x 4.4 in |
| Weight | 29.59 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Interface adapter - plug-in card |
| Host Bus | PCIe 4.0 x16 |
| Expansion / Connectivity | |
| Interfaces | 8 x M.2 Card - M.2 Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Features | SecureBoot, configurable RAID auto-rebuilding priority, event log, global hot spare disk support, multiple RAID partitions supported, online array roaming, S.M.A.R.T. support, Self-Encrypting Drive (SED) support |
| MTBF | 1.500.000 hours |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Microsoft Windows Hyper-V Server, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux, Red Hat Enterprise Linux |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 131 °F |
| Storage Controller | |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 28 GBps |
| Supported Devices | Disk array (RAID), solid state drive |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0 |
| Dimensions & Weight | |
| Width | 11.2 in |
| Depth | 0.9 in |
| Height | 4.4 in |
| Weight | 29.59 oz |
