Network surveillance camera - PTZ - indoor, outdoor - tamper / dust / water / shock / wind / corrosion / vandal resistant - color (Day&Night) - 8 MP - 3840 x 2160 - 4K - motorized - audio - LAN 10/100 - H.264, H.265, MJPEG - DC 54 V / AC 24 V / PoE++ Class 6
| Main Specifications | |
|---|---|

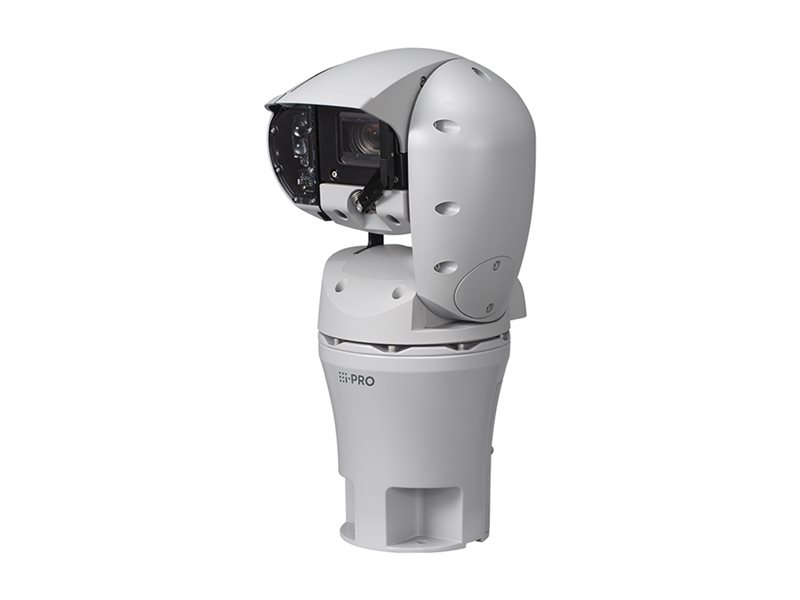

| Product Description | i-PRO Aero WV-X67711-Z3L3 - network surveillance camera |
| Device Type | Network surveillance camera - pan / tilt / zoom - indoor, outdoor - tamper / dust / water / shock / wind / corrosion / vandal resistant |
| Audio | Yes: two-way audio capability |
| Dimensions (WxDxH) | 8.9 in x 10.5 in x 17.7 in |
| Weight | 17.86 lbs |
| Color | Gray (Munsell N7) semi-gloss |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Optical Zoom | 30 x |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Video Modes | 4K |
| Optical Sensor Type | CMOS - 1/2.8" - 8 MP |
| Minimum Illumination | 0.13 lux - color - F1.8 - 30 IRE - shutter 1/30 sec ¦ 0.19 lux - color - F1.8 - 50 IRE - shutter 1/30 sec ¦ 0.1 lux - B&W - F1.8 - 50 IRE - shutter 1/30 sec ¦ 0 lux - IR |
| Focal Length Control | Motorized zoom |
| Focus Adjustment | (min distance 10 ft) |
| Lens Iris | F/1.8-4.7 |
| Panning Range (degree) | 360 |
| Tilting Range (degree) | -90 to +90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 54 V / AC 24 V / PoE++ Class 6 |
| Features | Device Certificate GlobalSign pre-installed, HTTPs encryption, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, AI Tracking, rugged housing, white LED, Auto Tracing White Balance, Automatic White Balance Control (AWC), Intelligent Auto Tracking, Super Dynamic technology, 132 dB dynamic range, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, Automatic Gain Control (AGC), AI Sound Classification, Audio Detection, digital noise reduction, glass-break detection, gunshot detection, Scene Change Detection (SCD), Video Motion Detection (VMD), AI face detection, AI occupancy detection, AI people detection, AI Privacy Guard, AI vehicle detection, AI Video Motion Detection (AI-VMD), 12.8m identify distance (wide), 127.8m detect distance (wide), 1407.9m observe distance (tele), 25.6m recognize distance (wide), 32 privacy zones, 3519.7m detect distance (tele), 352m identify distance (tele), 51.1m observe distance (wide), 703.9m recognize distance (tele), Auto VIQS, built-in OSD menu, DORI coverage, Gyroscopic Image Stabilizer, 256 preset positions, 4 video streams, Ambarella CV22 SoC, auto pan function, auto patrol, full duplex audio, half duplex audio, preset sequence, self return, Smart GOP, Smart P-picture control, up to 14 users, Variable Image Quality on Specified area (VIQS), 802.1x authentication, 16:9 aspect ratio, heavy salt damage resistance, AI Engine, audio alarm |
| Manufacturer Warranty | 7-year warranty |
| Environmental Parameters (operating) | -58 °F - 149 °F; 10 - 100% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, G.711 |
| Connectivity Technology | Wired |
| Width | 8.9 in |
| Depth | 10.5 in |
| Height | 17.7 in |
| Weight | 17.86 lbs |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 ¦ Audio line in ¦ Audio line out |
| Encryption Algorithm | FIPS 140-2 Level 3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, UL 62368-1, C-UL, CSA C22.2 No. 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 Class A, EN 55032 Class A, EN 55035, IEEE 802.3bt Type 3, IEEE 802.3bt Type 4, IP68, IP66, IEC 60529, UL 50E Type 4X, UL 50E Type 6P, NEMA Type 4X, NEMA Type 6P, IK10, IEC 62262, NEMA TS-2, ISO 14993, NDAA |
| Color | Gray (Munsell N7) semi-gloss |
| Power | |
| Power Requirements | DC 54 V / AC 24 V / PoE++ Class 6 |
| Power Device | 79.2 Watt |
| Software / System Requirements | |
| OS Required | Android, Apple iOS 8.0 or higher |
| Environmental Parameters | |
| Min Operating Temperature | -58 °F |
| Max Operating Temperature | 149 °F |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom - indoor, outdoor - tamper / dust / water / shock / wind / corrosion / vandal resistant |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Minimum Illumination | 0.13 lux - color - F1.8 - 30 IRE - shutter 1/30 sec ¦ 0.19 lux - color - F1.8 - 50 IRE - shutter 1/30 sec ¦ 0.1 lux - B&W - F1.8 - 50 IRE - shutter 1/30 sec ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 525 ft |
| Video Capture | 3840 x 2160 @ 25/30 fps ¦ 2560 x 1440 @ 25/30 fps ¦ 1920 x 1080 @ 25/30 fps ¦ 1280 x 720 @ 25/30 fps ¦ 640 x 360 @ 25/30 fps ¦ 320 x 180 @ 25/30 fps |
| Supported Image Formats | JPEG |
| Features | Device Certificate GlobalSign pre-installed, HTTPs encryption, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, AI Tracking, rugged housing, white LED, Auto Tracing White Balance, Automatic White Balance Control (AWC), Intelligent Auto Tracking, Super Dynamic technology, 132 dB dynamic range, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, Automatic Gain Control (AGC), AI Sound Classification, Audio Detection, digital noise reduction, glass-break detection, gunshot detection, Scene Change Detection (SCD), Video Motion Detection (VMD), AI face detection, AI occupancy detection, AI people detection, AI Privacy Guard, AI vehicle detection, AI Video Motion Detection (AI-VMD), 12.8m identify distance (wide), 127.8m detect distance (wide), 1407.9m observe distance (tele), 25.6m recognize distance (wide), 32 privacy zones, 3519.7m detect distance (tele), 352m identify distance (tele), 51.1m observe distance (wide), 703.9m recognize distance (tele), Auto VIQS, built-in OSD menu, DORI coverage, Gyroscopic Image Stabilizer, 256 preset positions, 4 video streams, Ambarella CV22 SoC, auto pan function, auto patrol, full duplex audio, half duplex audio, preset sequence, self return, Smart GOP, Smart P-picture control, up to 14 users, Variable Image Quality on Specified area (VIQS), 802.1x authentication, 16:9 aspect ratio, heavy salt damage resistance, AI Engine, audio alarm |
| Lens Construction | |
| Type | Motorized zoom |
| Optical Zoom | 30 x |
| Lens Iris | F/1.8-4.7 |
| Min Focus Distance | 10 ft |
| Horizontal Field of View (degree) | 2.5 - 62 |
| Vertical Field of View (degree) | 1.4 - 37 |
| Image Sensor | |
| Type | 8 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, FTP, SFTP, LLDP, MQTT, IPv4, RTSP, RTCP, DHCP, DDNS, UPnP, IGMP, SRTP, NTCIP, SNMP 1, SNMP 2, SNMP 3 |
| Alarm Inputs Qty | 3 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 200 |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Android, iOS |
| Tilting | |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 200 |
