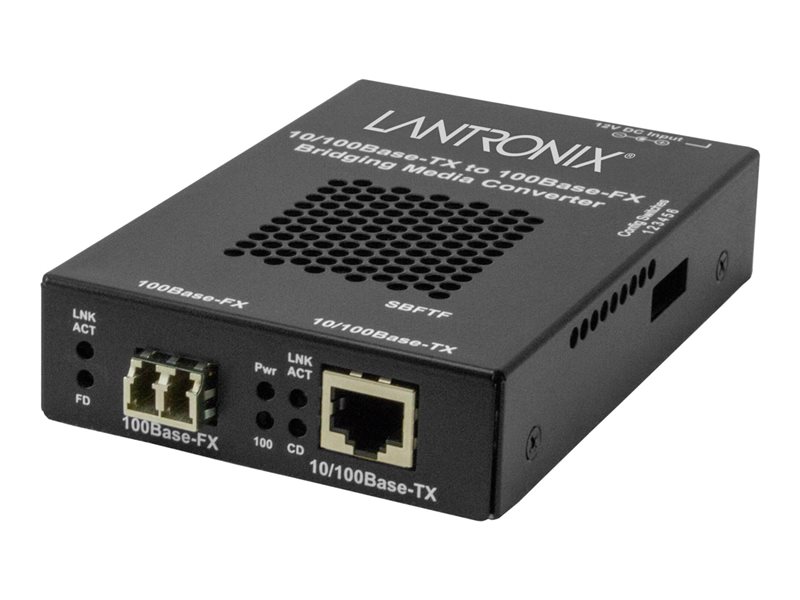

Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-FX - RJ-45 / LC multi-mode - up to 1.2 miles - 1300 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix SBFTF Series - fiber media converter - 10Mb LAN, 100Mb LAN - TAA Compliant |
| Device Type | Fiber media converter - RJ-45 / LC multi-mode |
| Form Factor | External |
| Localization | North America |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1300 nm |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 1.2 miles |
| Dimensions (WxDxH) | 3.2 in x 4.8 in x 1 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 2 x Ethernet 100Base-FX - LC multi-mode female ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, UL, FCC Class A certified, VCCI, CISPR 22 Class A, EN 55022 Class A, EN55024, EN 61000 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 100Base-FX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1300 nm |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Power, link/activity, fiber duplex, copper duplex, copper |
| Features | 11 dB link budget, 512KB packet buffer, half duplex mode, full duplex mode, auto-negotiation, Link Pass-Through, Far End Fault (FEF) |
| Compliant Standards | IEEE 802.3 |
| Power | |
| Power Device | External power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 4.8 in |
| Height | 1 in |
| Weight | 31.74 oz |
