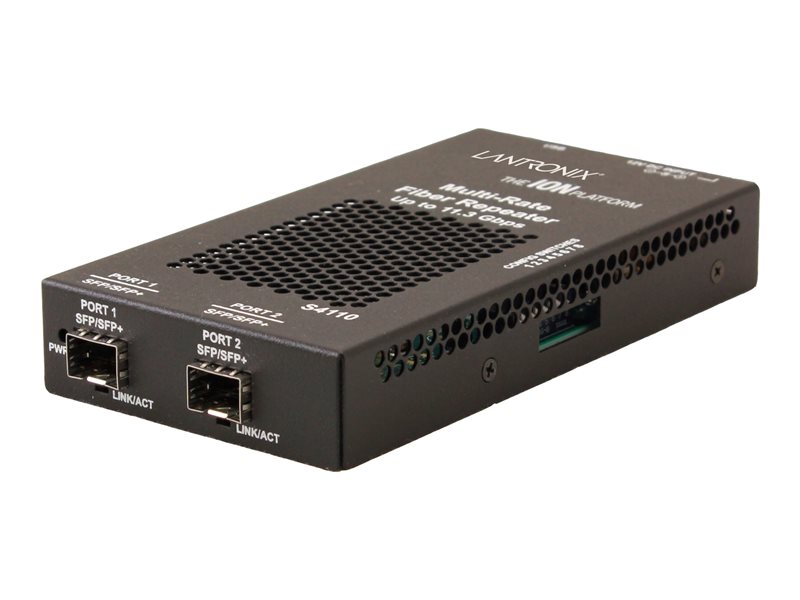

Fiber media converter - 10GbE, SONET, OC-48, OC-192 - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 10GBase-X, Fibre Channel - SFP/SFP+ / SFP/SFP+ - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix ION S4110 Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, SONET, OC-48, OC-192 - TAA Compliant |
| Device Type | Fiber media converter - SFP/SFP+ / SFP/SFP+ |
| Form Factor | External |
| Localization | Europe |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 10GBase-X, Fibre Channel |
| Data Transfer Rate | 11.5 Gbps |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, SONET, OC-48, OC-192 |
| Power | AC 120-240 V |
| Dimensions (WxDxH) | 3.2 in x 6.5 in x 1 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Europe |
| Expansion / Connectivity | |
| Interfaces | 2 x 1Gb Ethernet / 10Gb Ethernet / 10Gb Fibre Channel / 8Gb Fibre Channel / 4Gb Fibre Channel / 2Gb Fibre Channel / 1Gb Fibre Channel - SFP/SFP+ female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, ITU-T G.709, SFF-8431, MSA, FCC Class A certified, EN 55022 Class A, EN55024 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-SX, 10GBase-X, Fibre Channel |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, SONET, OC-48, OC-192 |
| Data Transfer Rate | 11.5 Gbps |
| Status Indicators | Power, link/activity |
| Features | Built-in DIP switch, 3R signal regeneration (Re-amplifying, Re-shaping, Re-timing), specific CWDM wavelength |
| Compliant Standards | IEEE 802.3ae |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120-240 V |
| Power Consumption Operational | 4.2 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.2 in |
| Depth | 6.5 in |
| Height | 1 in |
| Weight | 31.74 oz |
