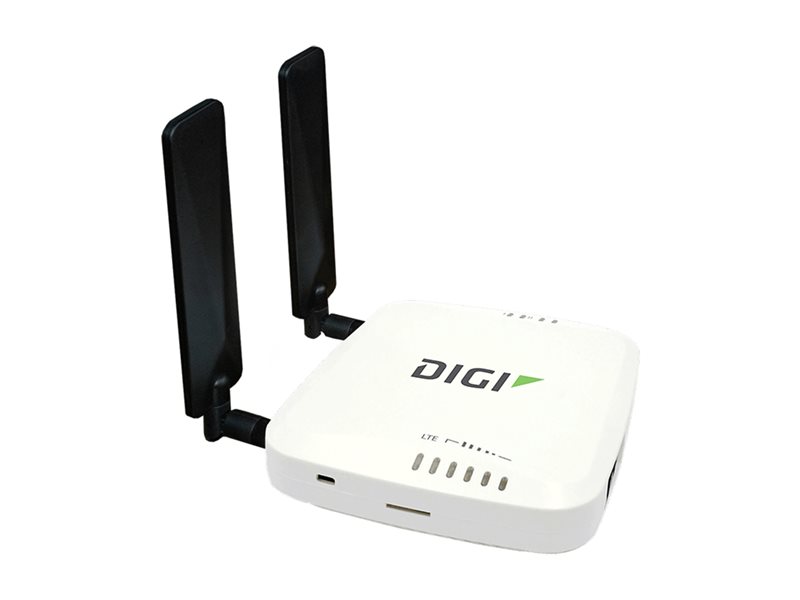

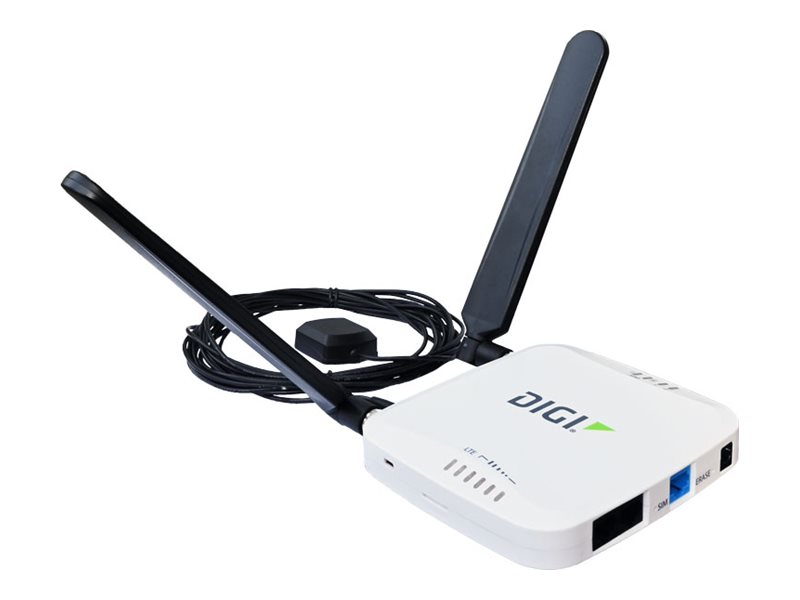

Router - WWAN 1GbE, 2.5GbE - 3G, 4G AT&T, T-Mobile, Verizon Wireless - for P/N: 170011
| Main Specifications | |
|---|---|
| Product Description | Digi EX15 - router - WWAN - 3G, 4G - desktop |
| Device Type | Router - wireless cellular modem |
| Enclosure Type | Desktop |
| Service Provider | AT&T, T-Mobile, Verizon Wireless |
| Cellular Protocol | LTE Advanced Cat 7, WCDMA |
| Generation | 3G, 4G |
| Cellular Band | WCDMA B2, WCDMA B5, LTE B12, LTE B13, LTE B2, LTE B25, LTE B26, LTE B4, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71 |
| WAN Ports Qty | 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | FTP, NTP |
| Routing Protocol | RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS |
| Remote Management Protocol | Syslog, SMTP, HTTP, HTTPS, CLI, SSH, SNMP 3 |
| Features | Plastic housing, FTP client, SCP, SNTP support, scalable, ZTP, passive PoE supported |
| Dimensions (WxDxH) | 5.6 in x 5 in x 1.2 in |
| Weight | 7.05 oz |
| Localization | United States |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: 170011 |
| General | |
| Device Type | Router |
| Service Provider | AT&T, T-Mobile, Verizon Wireless |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | FTP, NTP |
| Routing Protocol | RIP, RIPng, OSPFv2, OSPFv3, BGP, Babel, IS-IS |
| Remote Management Protocol | Syslog, SMTP, HTTP, HTTPS, CLI, SSH, SNMP 3 |
| Features | Plastic housing, FTP client, SCP, SNTP support, scalable, ZTP, passive PoE supported |
| Compliant Standards | PTCRB, FCC Part 15 B Class A, RCM, CAN ICES-3(B)/NMB3(B) |
| RAM | 256 MB |
| Flash Memory | 512 MB |
| Status Indicators | LAN, WAN, LTE, SIM1, SIM2, signal strength |
| Expansion / Connectivity | |
| Interfaces | LAN: 2 x 2.5G Gigabit Ethernet - RJ-45 ¦ Serial: 1 x RS-232 - RJ-45 ¦ Antenna: 2 x SMA - LTE |
| Expansion Slots | 2 (total) / 2 (free) x Mini-SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | PoE injector, 2 x cellular antennas, mounting kit, power plug tips |
| Localization | United States |
| Power | |
| Power Device | External power adapter |
| Software / System Requirements | |
| Software Included | Digi Remote Manager |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE Advanced Cat 7, WCDMA |
| Generation | 3G, 4G |
| Cellular Band | WCDMA B2, WCDMA B5, LTE B12, LTE B13, LTE B2, LTE B25, LTE B26, LTE B4, LTE B41, LTE B42, LTE B43, LTE B48, LTE B5, LTE B66, LTE B7, LTE B71 |
| Max Transfer Rate | 300 Mbps |
| Dimensions & Weight | |
| Width | 5.6 in |
| Depth | 5 in |
| Height | 1.2 in |
| Weight | 7.05 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Compatibility Information | |
| Designed For | P/N: 170011 |
