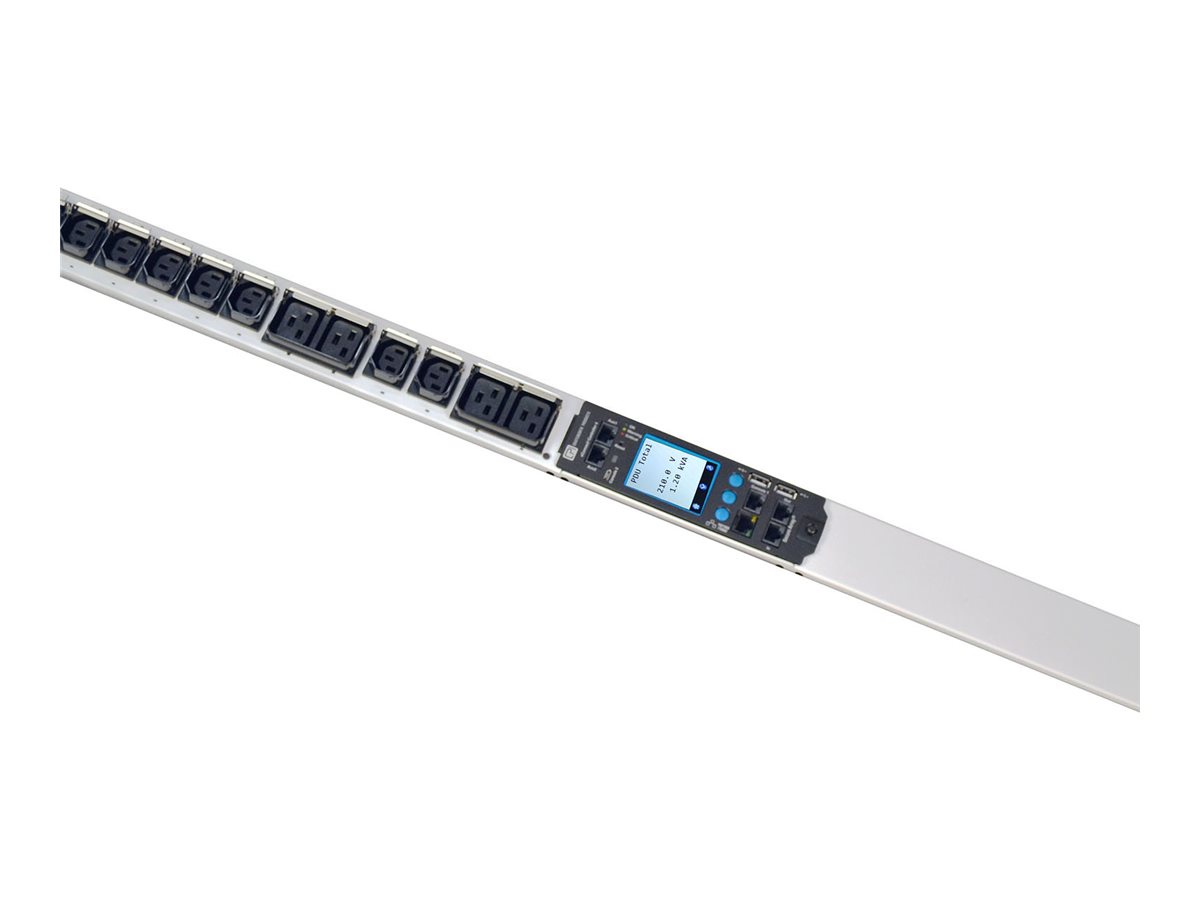

Power distribution unit (rack-mountable) - vertical - AC 208 V - 17.2 kW - 3-phase - Ethernet 10/100/1000, serial, USB - input: IEC 60309 3P+E - output connectors: 36 (power IEC 60320 C13) - 45U - 10 ft cord - North America - glacier white - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | CPI Switched Pro eConnect PDU EA-6137-E - power distribution unit - vertical - 17.2 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 45U |
| Weight | 22.05 lbs |
| Localization | North America |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Power Capacity | 17.2 kW |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 36 x power IEC 60320 C13 |
| Networking | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTPS, LDAP, RADIUS, HTTP, SSH, RESTful API |
| Included Accessories | 2 x toolless mounting buttons |
| Color | Glacier white |
| TAA Compliant | TAA Compliant |
| Dimensions (WxDxH) | 2.2 in x 2.8 in x 77.1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 45U |
| Cord Length | 10 ft |
| Color | Glacier white |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 2 x AUX - RJ-45 ¦ 1 x management (USB) - mini-USB Type B ¦ 1 x serial - RJ-45 ¦ 2 x Secure Array - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x toolless mounting buttons |
| Cables Included | Power cable 10 ft |
| Features | Vertical orientation, tool-less, for indoor use, password security, power LED status, Secure Array technology, simplified load balancing, electronic lock integration, vertical orientation, monitored per outlet, switched per outlet, outlet grouping, replaceable controller, SD-card transfers PDU identity, Branch Circuit Monitoring System (BCMS), locking outlets, Hydraulic-Magnetic breakers, 5kAIC breaker, current meter, voltage monitoring, power measuring, energy meter, power factor meter, individually switchable sockets, LED indicators, LCD display, environmental sensor ready, bistable latching relays, grounded, firmware upgradable, field-replaceable module, color-coded labels |
| Compliant Standards | IEC 62368, UL 62368, UL 489, cUL, FCC Part 15 A, EN55022, RoHS |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, serial, USB |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2, CLI, HTTPS, LDAP, RADIUS, HTTP, SSH, RESTful API |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 36 x power IEC 60320 C13 |
| Max Electric Current | 60 A |
| Power Capacity | 17.2 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 2.8 in |
| Height | 77.1 in |
| Weight | 22.05 lbs |
