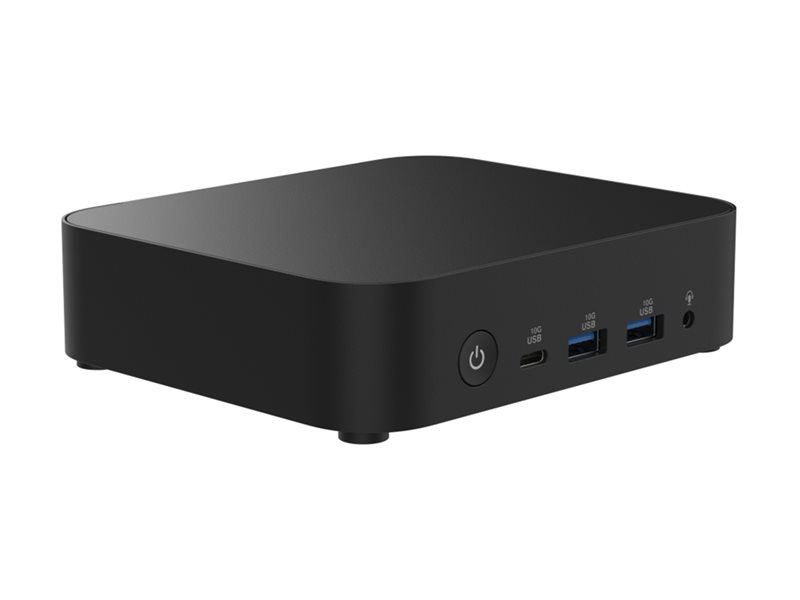

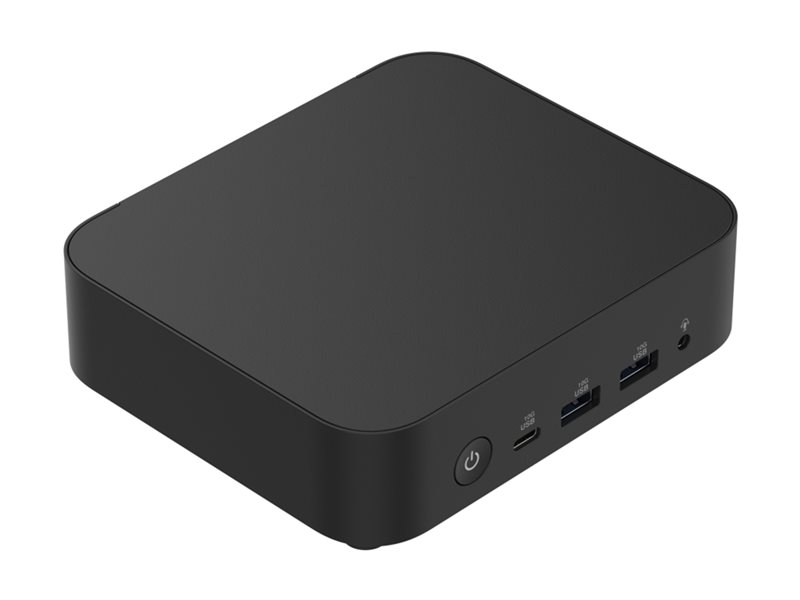

Barebone - mini PC 1 x N-series N97 / up to 3.6 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - black
| Main Specifications | |
|---|---|
| Product Description | ASUS NUC 14 Essential Kit RNUC14MNK970000U - mini PC N-series N97 - 0 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel N-series N97 (up to 3.6 GHz, (Quad-Core) |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 0 GB (installed) / 16 GB (max) - DDR5 SDRAM |
| Storage Controller | SATA/NVMe (SATA-600 / PCIe) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6E, Bluetooth 5.3 |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 5.3 in x 4.5 in x 1.4 in |
| Weight | 16.58 oz |
| Environmental Standards | EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Color | Black |
| Expansion / Connectivity | |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2280 (SATA/PCIe 3.0 x4 (NVMe)) |
| Interfaces | 4 x USB 3.2 Gen 2 (2 front, 2 rear) ¦ 2 x USB-C 3.2 Gen 2 (1 front, 1 rear) ¦ 1 x HDMI (1 rear) ¦ 1 x DisplayPort (1 rear) ¦ 1 x headphones/microphone (1 front) ¦ 1 x USB 2.0 (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | VESA mounting kit, power adapter, power cord |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | DisplayPort 1.4 |
| RAM | |
| Installed Size | 0 GB (installed) / 16 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (total) / 1 (empty) |
| Networking | |
| Ethernet Controller | Realtek RTL8125BG-CG |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 65 watt |
| Storage Controller | |
| Type | SATA/NVMe |
| Controller Interface Type | SATA-600 / PCIe |
| Channel Qty | 1 |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 3 |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 5.3 in |
| Depth | 4.5 in |
| Height | 1.4 in |
| Weight | 16.58 oz |
| Processor / Chipset | |
| CPU | Intel N-series N97 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
