With MTAC-003U00 mCard and US accessory kit - gateway - IP67 - 100Mb LAN - LoRaWAN, Wi-Fi, Bluetooth, Bluetooth - 4G, 3G - 2.4 GHz, 5 GHz - HSPA+ B2/B4/B5 / LTE B12/B13/B14/B2/B4/B5/B66/B71 - for P/N: CA-NTYPE-MF-1, LGT-ARRST-5, MB-ANT-IP67-1, MB-ANT-IP67-5, PS-56V-POE-NAM-5
| Main Specifications | |
|---|---|

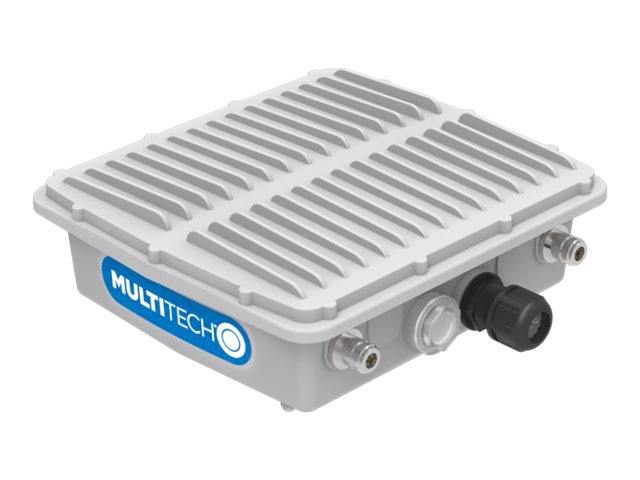

| Product Description | Multi-Tech Conduit MTCDTIP-L4N1-267A-915.R3 - with MTAC-003U00 mCard and US accessory kit - gateway - IP67 - LoRaWAN, Wi-Fi, Bluetooth, Bluetooth |
| Device Type | Gateway |
| Form Factor | External - outdoor |
| Localization | United States, Canada |
| Processor | ARM ARM9 400 MHz |
| RAM | 128 MB |
| Flash Memory | 256 MB |
| Data Link Protocol | Bluetooth 4.1 LE, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, LoRaWAN |
| Frequency Band | 2.4 GHz, 5 GHz, 915 MHz |
| Performance | Downlink bandwidth: 150 Mbps ¦ Uplink bandwidth: 50 Mbps |
| Capacity | Channels supported: 8 |
| Mobile Broadband Access | Yes |
| Generation | 4G, 3G |
| Cellular Protocol | LTE, HSPA+ |
| Cellular Band | HSPA+ B2/B4/B5 / LTE B12/B13/B14/B2/B4/B5/B66/B71 |
| Included Accessories | Mounting brackets, 2 x LoRA antennas, 2 x cellular antennas, GNSS antenna |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 3.6 in x 10.3 in x 10.1 in |
| Weight | 6.06 lbs |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: CA-NTYPE-MF-1, CA-NTYPE-MF-5, LGT-ARRST-1, LGT-ARRST-5, MB-ANT-IP67-1, MB-ANT-IP67-5, MTKIT-IP67-MF, MTUDK2-ST-MDOT, PS-56V-POE-NAM-1, PS-56V-POE-NAM-5 |
| General | |
| Device Type | Gateway |
| Ruggedized Design | Outdoor |
| Built-in Devices | GNSS receiver |
| Width | 3.6 in |
| Depth | 10.3 in |
| Height | 10.1 in |
| Weight | 6.06 lbs |
| Localization | United States, Canada |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Micro SIM card |
| Interfaces | 1 x 100Base-TX (PoE) - RJ-45 ¦ LoRa RF - N connector ¦ 1 x USB - Type A ¦ Antenna - N connector |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Mounting brackets, 2 x LoRA antennas, 2 x cellular antennas, GNSS antenna |
| Compliant Standards | IP67, FCC Part 15 Class B, ICES-003 Class B, FCC Part 22, FCC Part 24, FCC Part 27, ISED, UL 60950-1, UL/CUL 62368-1, MIL-STD 810G, SAE J1455, IEC 68-2-1, IEC 68-2-2, IEEE 802.3at |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | Bluetooth 4.1 LE, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, LoRaWAN |
| Frequency Band | 2.4 GHz, 5 GHz, 915 MHz |
| Performance | Downlink bandwidth: 150 Mbps ¦ Uplink bandwidth: 50 Mbps |
| Capacity | Channels supported: 8 |
| Status Indicators | Power, status, user 1, user 2 |
| Features | GPS/GLONASS/SBAS/QZSS support, half duplex mode, aluminum housing |
| Compliant Standards | IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power injector (not included) |
| Power Provided | 25 Watt |
| Software / System Requirements | |
| Software Included | mPower Edge Intelligence |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Communications | |
| Mobile Broadband Access | Yes |
| Generation | 4G, 3G |
| Cellular Protocol | LTE, HSPA+ |
| Cellular Band | HSPA+ B2/B4/B5 / LTE B12/B13/B14/B2/B4/B5/B66/B71 |
| Processor / Memory / Storage | |
| Processors Installed | ARM ARM9 400 MHz |
| RAM | 128 MB |
| Flash Memory | 256 MB |
| Antenna | |
| Antenna | External detachable |
| Compatibility Information | |
| Designed For | P/N: CA-NTYPE-MF-1, CA-NTYPE-MF-5, LGT-ARRST-1, LGT-ARRST-5, MB-ANT-IP67-1, MB-ANT-IP67-5, MTKIT-IP67-MF, MTUDK2-ST-MDOT, PS-56V-POE-NAM-1, PS-56V-POE-NAM-5 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat 4, LoRaWAN |
