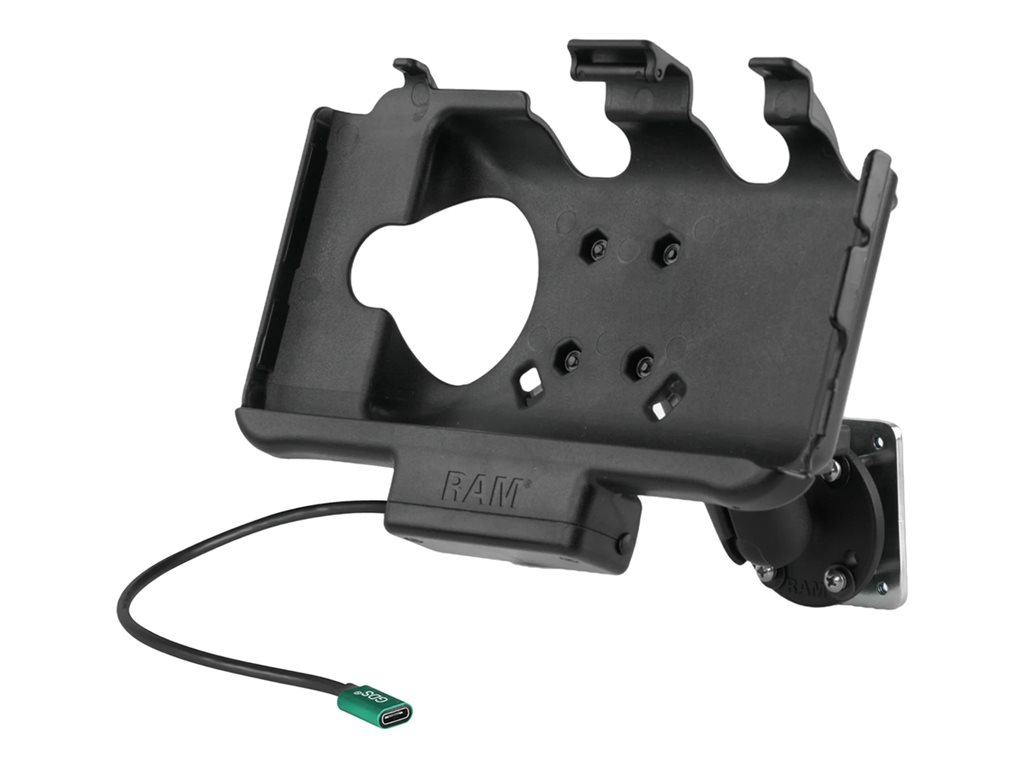

Charging cradle - USB-C - 500 mA - USB BC 1.2, QC 2.0, AFC (Pogo)
| Main Specifications | |
|---|---|
| Product Description | RAM EZ-Roll'r charging cradle - USB-C - Pogo |
| Product Type | Charging cradle |
| Designed For | Tablet |
| Weight | 30.09 oz |
| Output Connector Type | Pogo |
| Voltage Required | DC 5.3 - 5.4 V |
| Voltage Provided | DC 5 V |
| Max Electric Current | 500 mA |
| Fast Charge Technology | USB Battery Charging 1.2, Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging |
| Cables | USB-C cable - 8.5 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Charging cradle |
| Designed For | Tablet |
| Weight | 30.09 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Packaging Type | Poly bag |
| Material | High-strength composite, marine grade aluminum, steel |
| Included Accessories | 2.10" x 2.60" steel backing plate, 4 x #8 flat washer, 4 x #8 split lock washer, 4 x #8-32 x 1" screw, C size double ball mount, cable clamp, modular hardwire charger |
| Cables Included | USB-C cable - 8.5 in |
| Compliant Standards | E Mark, FCC, IC, RoHS, SAE J1113, UKCA, UL/IEC 62368-1, USB / USB 2.0 |
| Power Device | |
| Voltage Required | DC 5.3 - 5.4 V |
| Input Connectors | 24 pin USB-C |
| Input Connectors Qty | 1 |
| Voltage Provided | DC 5 V |
| Output connectors | Pogo |
| Max Electric Current | 500 mA |
| Fast Charge Technology | USB Battery Charging 1.2, Qualcomm Quick Charge 2.0, Samsung Adaptive Fast Charging |
| Features | Portrait/landscape orientation, overvoltage protection, short circuit protection, dedicated charging port (DCP) support |
