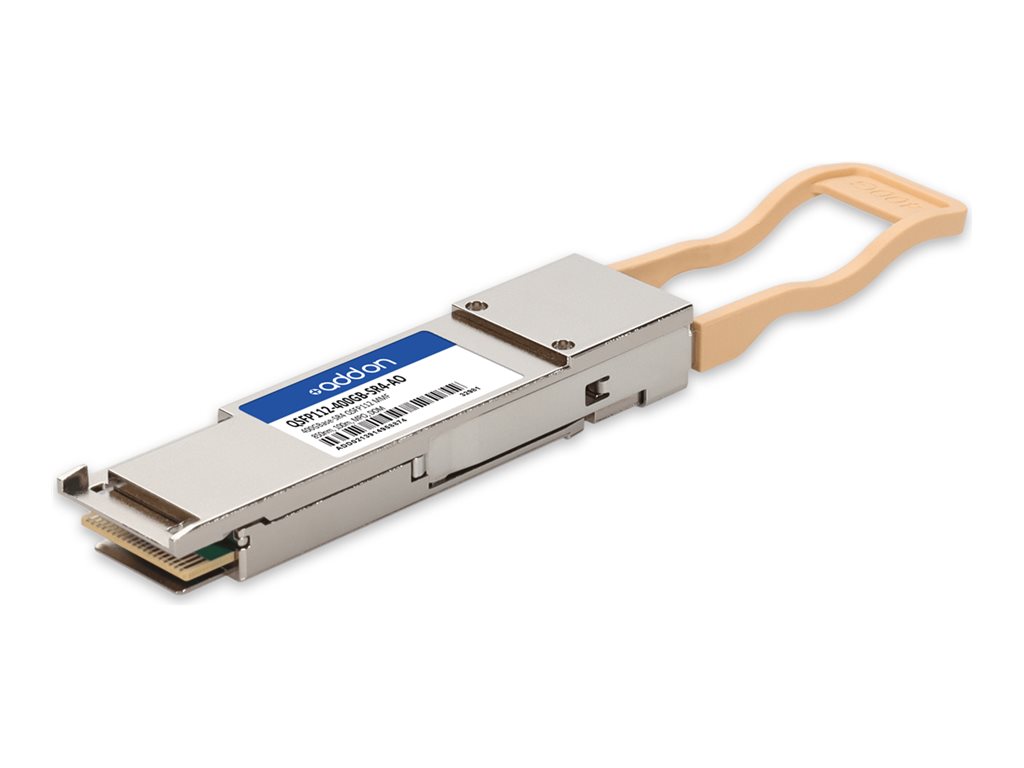

QSFP112 transceiver module - 400GbE - Ethernet 400GBASE-SR4 - MPO multi-mode - up to 328 ft - 850 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | AddOn - QSFP112 transceiver module - 400GbE - TAA Compliant |
| Device Type | QSFP112 transceiver module - MPO multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | Ethernet 400GBASE-SR4 |
| Data Transfer Rate | 400 Gbps |
| Optical Wave Length | 850 nm |
| Data Link Protocol | 400GbE |
| Max Transfer Distance | 328 ft |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP112 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 400GBASE-SR4 - MPO multi-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | MSA, CMIS 5.0 |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 400GBASE-SR4 |
| Data Link Protocol | 400GbE |
| Data Transfer Rate | 400 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 328 ft |
| Features | Flat top |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 2.8 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.2 in |
| Shipping Weight | 6.38 oz |
