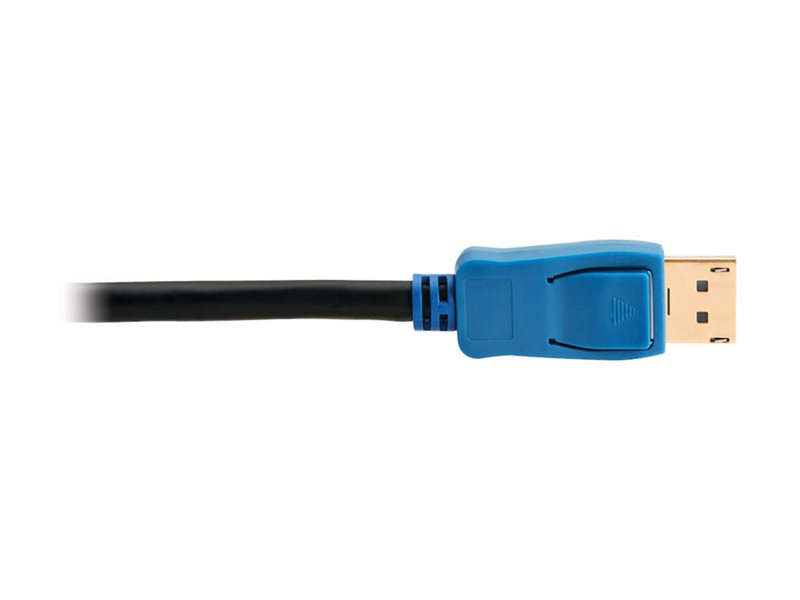

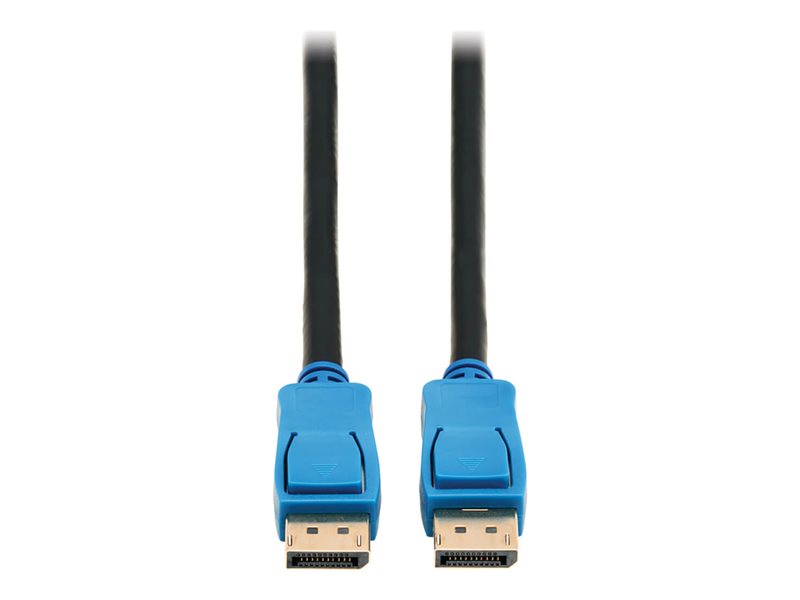

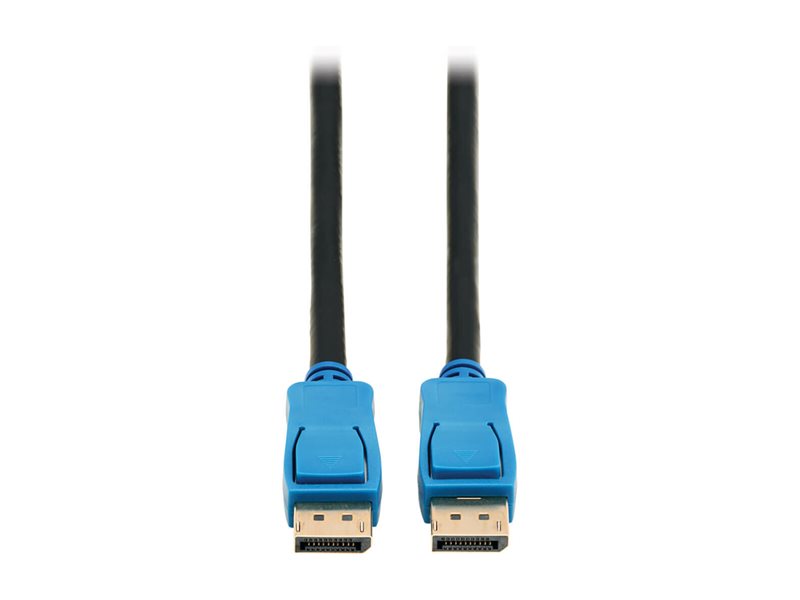

DisplayPort cable - DisplayPort (M) to DisplayPort (M) - DisplayPort 1.4 - 25 ft - 8K support, passive - black - for P/N: B156-002-8K, B156-002-HDMI, B156E-002-8K-K, B156E-003-8K-K
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series DisplayPort Cable with Latching Connectors (M/M), 8K 60 Hz, HDR, HBR3, 4:4:4, HDCP 2.2, 25 ft. (7.6 m), Black - DisplayPort cable - DisplayPort to DisplayPort - 25 ft |
| Type | DisplayPort cable |
| Technology | Double shielded |
| Features | 8K support, passive cable, Ultra HD (8K) support, HDR support, Chroma subsampling (4:4:4), EMI/RFI protection, 24-bit True Color, 32.4 Gb/s total bandwidth |
| Length | 25 ft |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
| Compliant Standards | DisplayPort 1.4 |
| Color | Black |
| Package Type | Polybag |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: B156-002-8K, B156-002-HDMI, B156E-002-8K-K, B156E-003-8K-K |
| General | |
| Type | DisplayPort cable |
| Technology | Double shielded |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 26 |
| Plated Connector | Gold |
| Features | 8K support, passive cable, Ultra HD (8K) support, HDR support, Chroma subsampling (4:4:4), EMI/RFI protection, 24-bit True Color, 32.4 Gb/s total bandwidth |
| Length | 25 ft |
| Outside Diameter | 0.29 in |
| Color | Black |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.4, HDCP 2.2, ITU-R BT.2020, Plug and Play, RoHS, UKCA, WEEE, VW-1 |
| Package Details | Polybag |
| Connectivity | |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7 in |
| Shipping Depth | 0.5 in |
| Shipping Height | 9 in |
| Shipping Weight | 16.93 oz |
| Service & Support | Limited lifetime warranty |
| Compatibility Information | |
| Designed For | P/N: B156-002-8K, B156-002-HDMI, B156E-002-8K-K, B156E-003-8K-K |
