All-in-one Core i5 i5-14400T / up to 4.5 GHz - RAM 8 GB - SSD 1 TB - UHD Graphics 730 - IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 - Win 11 - monitor: LCD 21.5" 1920 x 1080 (Full HD) touchscreen - white
| Main Specifications | |
|---|---|
| Product Description | DT Research Medical-Grade Integrated LCD System 502TF - all-in-one Core i5 i5-14400T 1.5 GHz - 8 GB - SSD 1 TB - LCD 21.5" |
| Type | Personal computer - all-in-one |
| Processor | Intel Core i5 (14th Gen) i5-14400T / 1.5 GHz (up to 4.5 GHz, (10-core) |
| Cache Memory | 20 MB |
| Cache Per Processor | 20 MB |
| RAM | 8 GB (installed) / 64 GB (max) |
| Hard Drive | SSD 1 TB |
| Optical Storage | No optical drive |
| Monitor | 21.5" - LCD - 1920 x 1080 (Full HD) - touchscreen |
| Graphics Controller | Intel UHD Graphics 730 |
| Networking | 802.11b/g/n, Wi-Fi 6, Wi-Fi 5, Bluetooth 5.3, 802.11a, 10Mb LAN |
| OS Provided | Windows 11 |
| Color | White |
| Dimensions (WxDxH) | 20.4 in x 1.6 in x 12.8 in |
| Weight | 13.4 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | White |
| Expansion / Connectivity | |

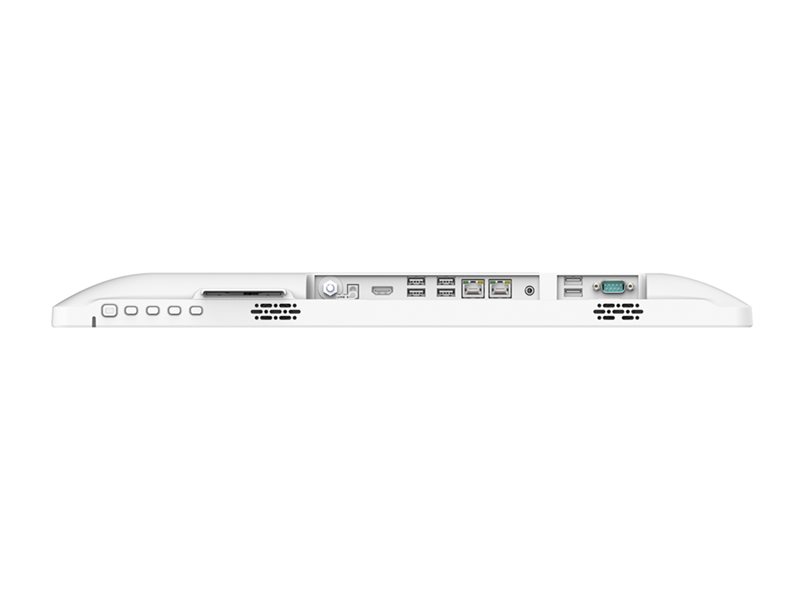

| Interfaces | 4 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 2.0 - Type A ¦ 1 x USB 2.0 - Type C ¦ 1 x serial ¦ 1 x headphones - mini-jack ¦ 1 x HDMI ¦ 2 x LAN |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| VESA Mounting Interface | 100 x 100 mm |
| Compliant Standards | IP65 front, IPX2, ANSI/AAMI ES60601-1, IEC 60601-1, IEC 60601-1-2, FCC part 18, FCC Part 15 Class B, GB 17625.1, GB 4943.1, GB/T9254, EMC, RED, RCM, CCC |
| RAM | |
| Installed Size | 8 GB (installed) / 64 GB (max) |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11ac, IEEE 802.11b, Bluetooth 5.3, IEEE 802.11a, Ethernet |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Cache Memory | |
| Installed Size | 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LCD |
| Touchscreen | Yes |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Monitor Features | Fanless cooling, antimicrobial enclosure, capacitive touch screen |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 |
| Video Interfaces | HDMI |
| Operating System / Software | |
| OS Provided | Windows 11 |
| Hard Drive | |
| Type | SSD |
| Capacity | 1 x 1 TB |
| Audio Input | |
| Type | Microphone |
| Dimensions & Weight | |
| Width | 20.4 in |
| Depth | 1.6 in |
| Height | 12.8 in |
| Weight | 13.4 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (14th Gen) i5-14400T |
| Clock Speed | 1.5 GHz (P-core) / 1.1 GHz (E-core) |
| Max Turbo Speed | 4.5 GHz (P-core) / 3.2 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
