Wireless access point - 1GbE, 2.5GbE - Wi-Fi 6 - Wi-Fi 6E, Bluetooth - 5 GHz, 6 GHz - remanufactured - rail mountable
| Main Specifications | |
|---|---|

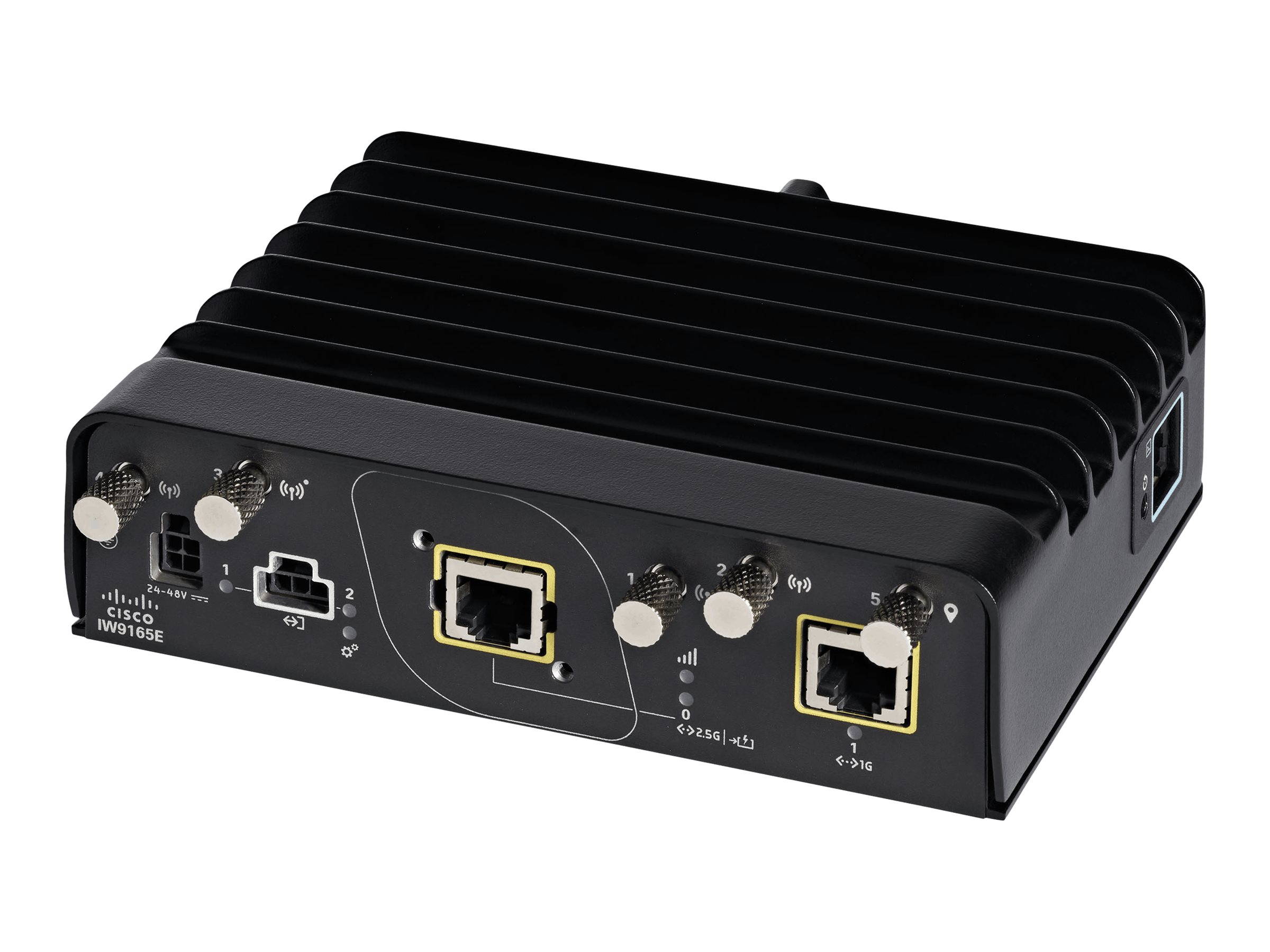

| Product Description | Cisco Catalyst IW9165E Rugged - wireless access point - Wi-Fi 6E, Bluetooth |
| Device Type | Wireless access point |
| Form Factor | DIN rail mountable - indoor |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.0 LE |
| Frequency Band | 5 GHz, 6 GHz |
| Capacity | Spatial streams: 2 |
| Power Over Ethernet (PoE) Supported | UPOE / PoE+ |
| Pricing Type | Remanufactured |
| Dimensions (WxDxH) | 6 in x 4.9 in x 1.7 in |
| Weight | 26.45 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Built-in Devices | GNSS receiver |
| Width | 6 in |
| Depth | 4.9 in |
| Height | 1.7 in |
| Weight | 26.45 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x 100/1/2.5GBase-T (UPOE) - RJ-45 ¦ 1 x 10/100/1000Base-T - RJ-45 ¦ 4 x antenna - RP-SMA ¦ 2 x GPIO ¦ 1 x management - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | IP30, WEEE, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-27, AS/NZ CISPR 32 Class A, CISPR 11 class A, CISPR 16 class A, CISPR 32 Class A, KS C 9832:2019, EN 300 386, CNS 13438 Class A, ICES-003 Class A, CISPR 35, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-19, EN 55035, KS C 9835:2019, KS X 3124, KS X 3126, DIN 5510-2, EN 45545-3, EN 61000-4-29, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 62311, EN 62368-1, IEC 61000-4-17, IEC 61000-4-18, IEC 61000-4-9, IEC 62368-1, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AAR S9401, AREMA C&S Manual Section 11.5.1, EN 50155, EN 61373, EN 50121-4, EN 50121-3-2, FCC CFR Part 15.247, FCC CFR Part 15.407, RSS-247 Issue 5, AS/NZ 4268:2018, NCC LP0002:2018, FCC OET Bulletin 65c, RSS-102 |
| Pricing Type | Remanufactured |
| Networking | |
| Form Factor | DIN rail mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 3.6 Gbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.0 LE |
| Frequency Band | 5 GHz, 6 GHz |
| Capacity | Spatial streams: 2 |
| Status Indicators | System, port status |
| Features | High Availability, zero packet loss, low power consumption, rugged, image signing, secure boot, Cisco Trust Anchor module, 2x2 MIMO technology, Dying Gasp support, workgroup bridge, self-identifiable antennas (SIA) support, Received Signal Strength Indication (RSSI) support, reset button, surge protection, Wi-Fi Multimedia (WMM) support, Workgroup bridge (WGB) |
| Encryption Algorithm | TLS, TTLS, MSCHAPv2, PEAP, EAP-FAST, EAP-GTC, EAP-SIM |
| Authentication Method | Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3bz, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 6E, IEEE 802.3af, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | UPOE / PoE+ |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Antenna | |
| Antenna | External detachable |
| Gain Level | 15 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
