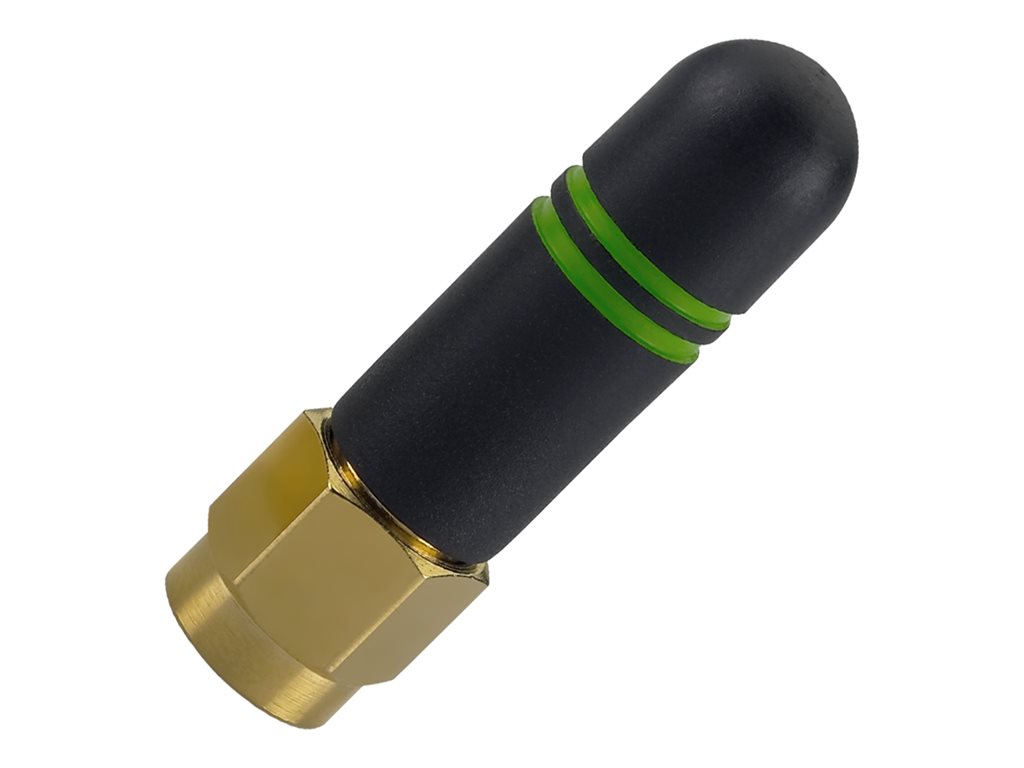

Antenna - 2.4 GHz, RP-SMA(M) - monopole - Wi-Fi, Bluetooth - 3.42 dBi - terminal mount
| Main Specifications | |
|---|---|
| Product Description | Taoglas GW.26 - antenna - 2.4 GHz, RP-SMA(M) |
| Product Type | Antenna - 2.4 GHz, RP-SMA(M) |
| Dimensions (WxDxH) | 0.3 in x 0.3 in x 1.2 in |
| Weight | 0.14 oz |
| Product Material | Thermoplastic polyurethane (TPU) |
| Form Factor | Monopole |
| Intended For | Wi-Fi, Bluetooth |
| Antenna Placing / Mounting | Terminal mount |
| Compatibility | Bluetooth, Wi-Fi |
| Frequency Range | 2.4 GHz |
| Gain | 3.42 dBi |
| General | |
| Product Type | Antenna - 2.4 GHz, RP-SMA(M) |
| Product Material | Thermoplastic polyurethane (TPU) |
| Width | 0.3 in |
| Depth | 0.3 in |
| Height | 1.2 in |
| Weight | 0.14 oz |
| Miscellaneous | |
| Features | Straight, linear polarization, PE bag package |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Cabling & Wiring | |
| Connector Provided | 1 x RP-SMA male |
| Antenna | |
| Form Factor | Monopole |
| Intended For | Wi-Fi, Bluetooth |
| Antenna Placing / Mounting | Terminal mount |
| Compatibility | Bluetooth, Wi-Fi |
| Frequency Range | 2.4 GHz |
| Gain | 3.42 dBi |
| Impedance | 50 ohm |
