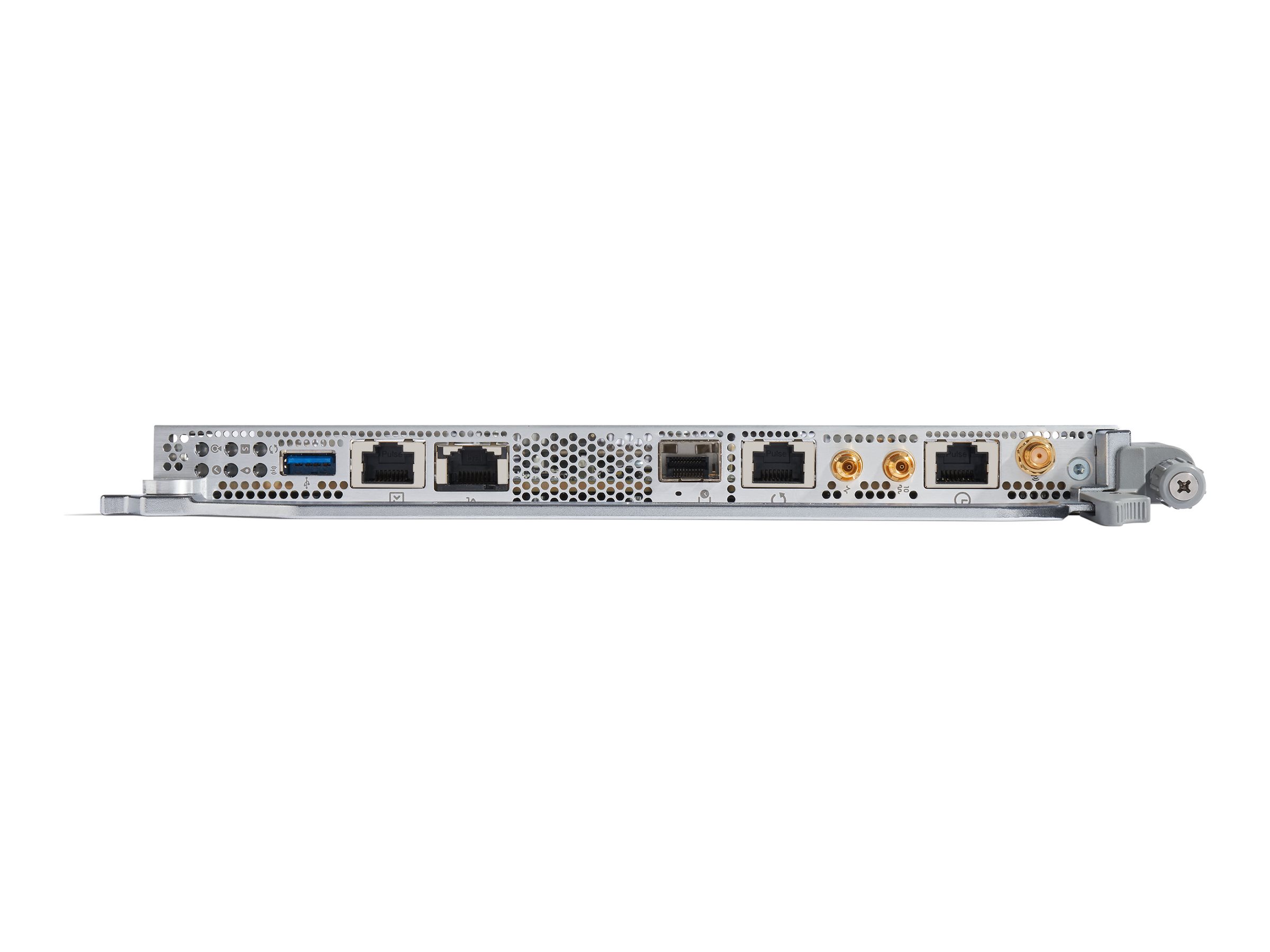

Control processor - 1GbE - plug-in module
| Main Specifications | |
|---|---|
| Product Description | Cisco 8608 - control processor |
| Device Type | Control processor |
| Form Factor | Plug-in module |
| Processor | 1 x Intel 2.5 GHz |
| RAM | 64 GB |
| Hard Drive | 256 GB |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Dimensions (WxDxH) | 9.3 in x 9.9 in x 1.7 in |
| Weight | 4.19 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Control processor |
| Width | 9.3 in |
| Depth | 9.9 in |
| Height | 1.7 in |
| Weight | 4.19 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x 10/100/1000Base-T - RJ-45 ¦ 1 x management ¦ 1 x console ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | AS/NZS 62368-1, AS/NZS CISPR32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 62368-1, EN55032 Class A, FCC CFR47 Part 15 Class A, GB 4943.1-2022, IEC 62368-1, UL 60950-1, UL 62368-1, CISPR 32 Class A, ICES-003 Class A, VCCI Class A, KS C 9832 Class A, EN 61000-3-2, EN61000-3-3, CNS 15936 Class A, EN 300 386, EN55035, CISPR 35, EN 61000-6-1, KS C 9835, RoHS R6 |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel 2.5 GHz |
| RAM | 64 GB |
| Hard Drive | SSD 256 GB |
