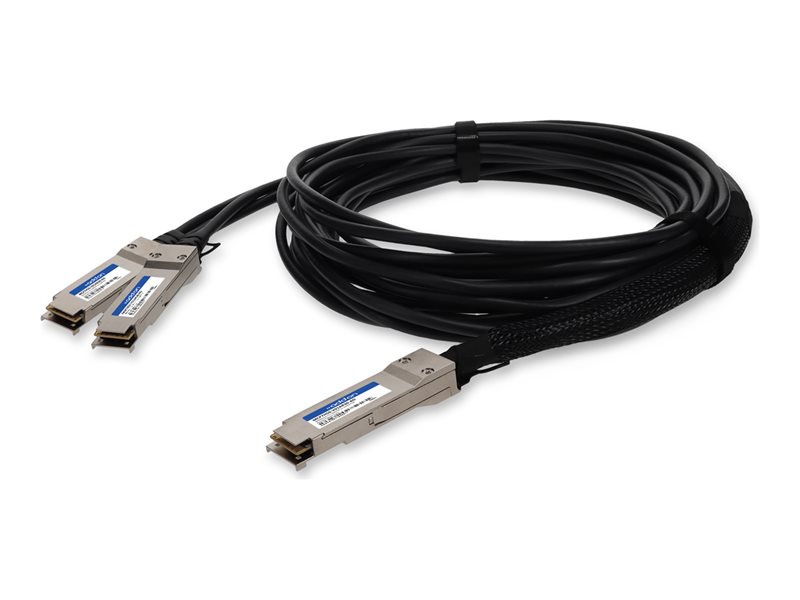

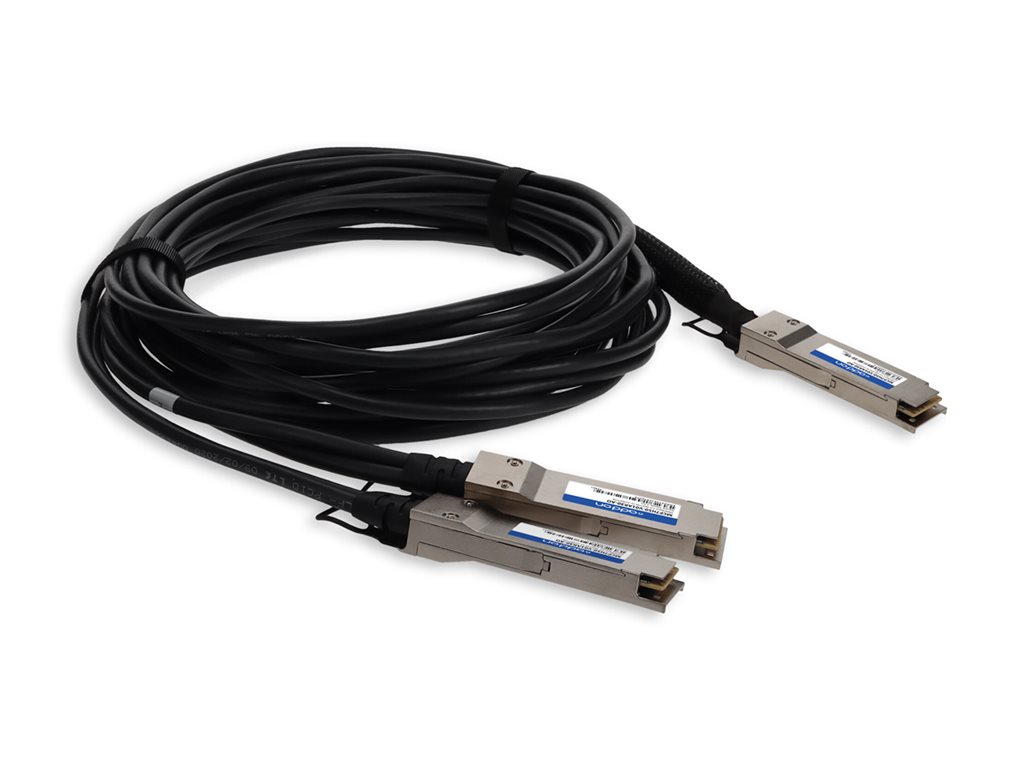

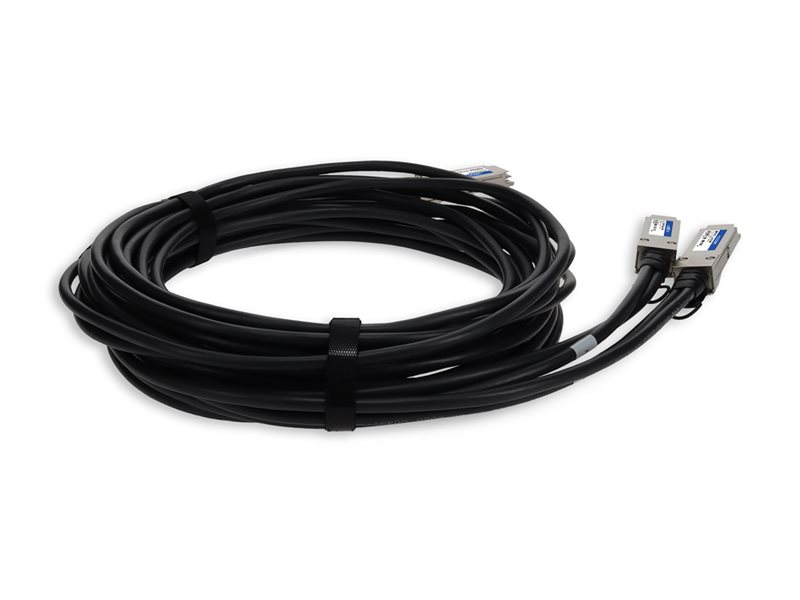

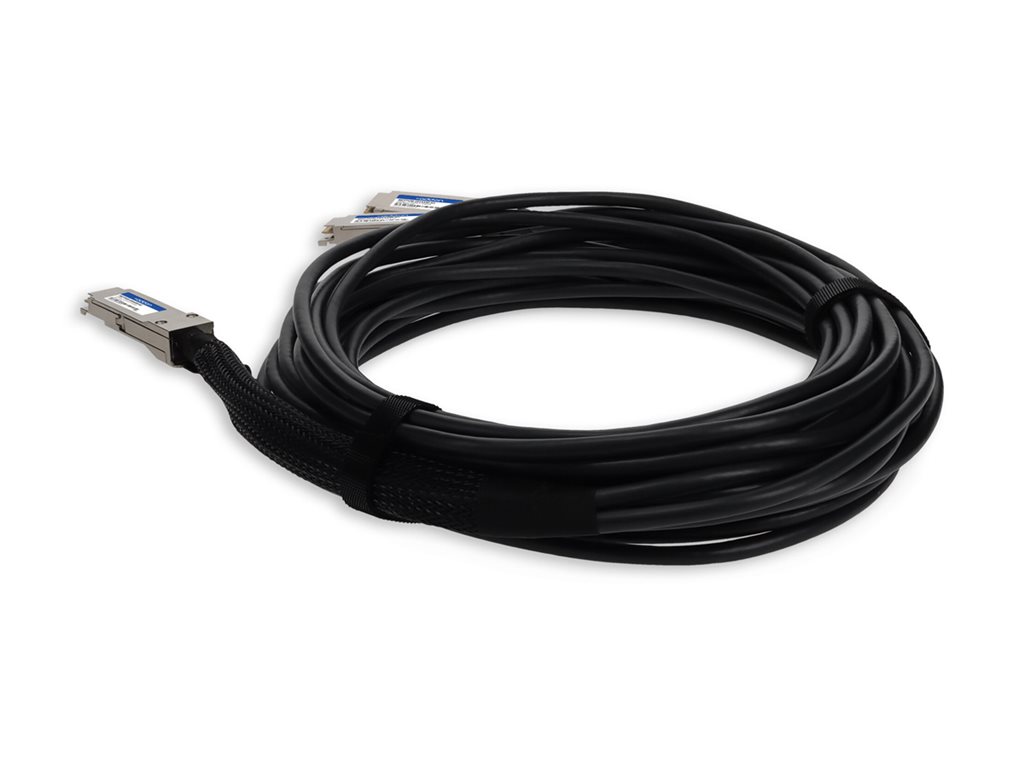

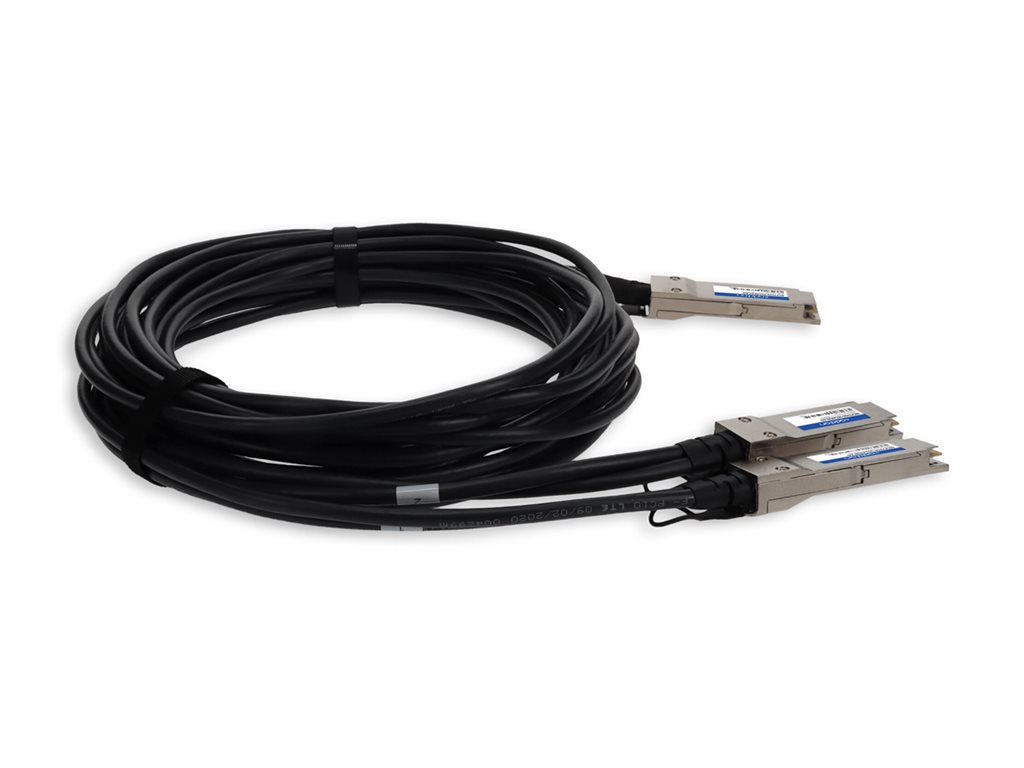

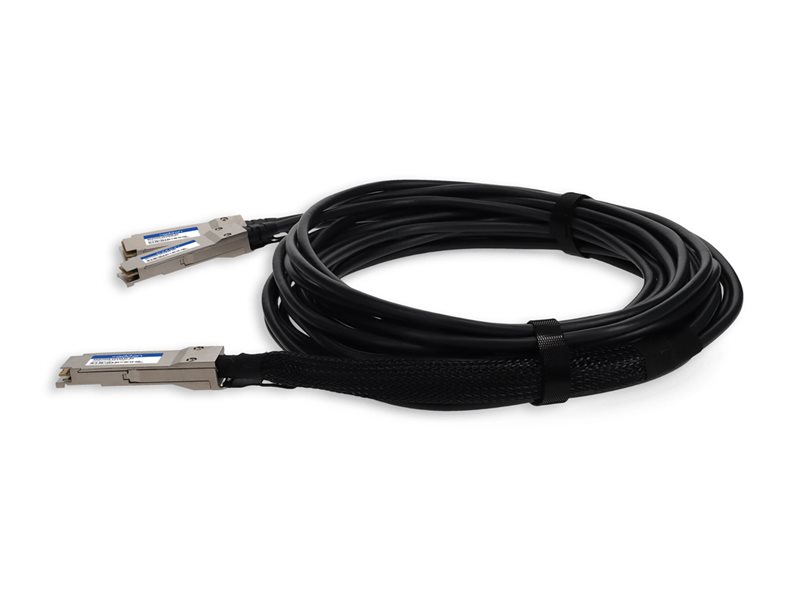

200GBase-CU direct attach cable - TAA Compliant - QSFP56 to QSFP56 - 5 ft - twinaxial - passive, halogen-free - for NVIDIA Spectrum-2 SN3700; Spectrum-3 SN4700
| Main Specifications | |
|---|---|
| Product Description | AddOn 200GBase-CU direct attach cable - TAA Compliant - 5 ft |
| Type | 200GBase-CU direct attach cable |
| Technology | Twinaxial |
| Features | Passive cable, halogen-free, InfiniBand HDR support, Hot-pluggable, low crosstalk, low power consumption |
| Length | 5 ft |
| Connector | QSFP56 |
| Connector (Second End) | 2 x QSFP56 |
| OEM Manufacturer Equivalent Part Number | Mellanox MCP7H50-V01AR30 |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | NVIDIA Spectrum-2 SN3700; Spectrum-3 SN4700 |
| General | |
| Network Cable Type | 200GBase-CU direct attach cable |
| Technology | Twinaxial |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Features | Passive cable, halogen-free, InfiniBand HDR support, Hot-pluggable, low crosstalk, low power consumption |
| Length | 5 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Mellanox MCP7H50-V01AR30 |
| Compliant Standards | WEEE, ISO 9001:2015, RoHS, REACH, MSA, SFF-8636, IEEE 802.3cd, Lead-Free |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -13 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP56 |
| Connector (Second End) | 2 x QSFP56 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9 in |
| Shipping Depth | 12 in |
| Shipping Height | 1.5 in |
| Shipping Weight | 6.38 oz |
| Compatibility Information | |
| Designed For | NVIDIA Spectrum-2 SN3700 ¦ NVIDIA Spectrum-3 SN4700 |
