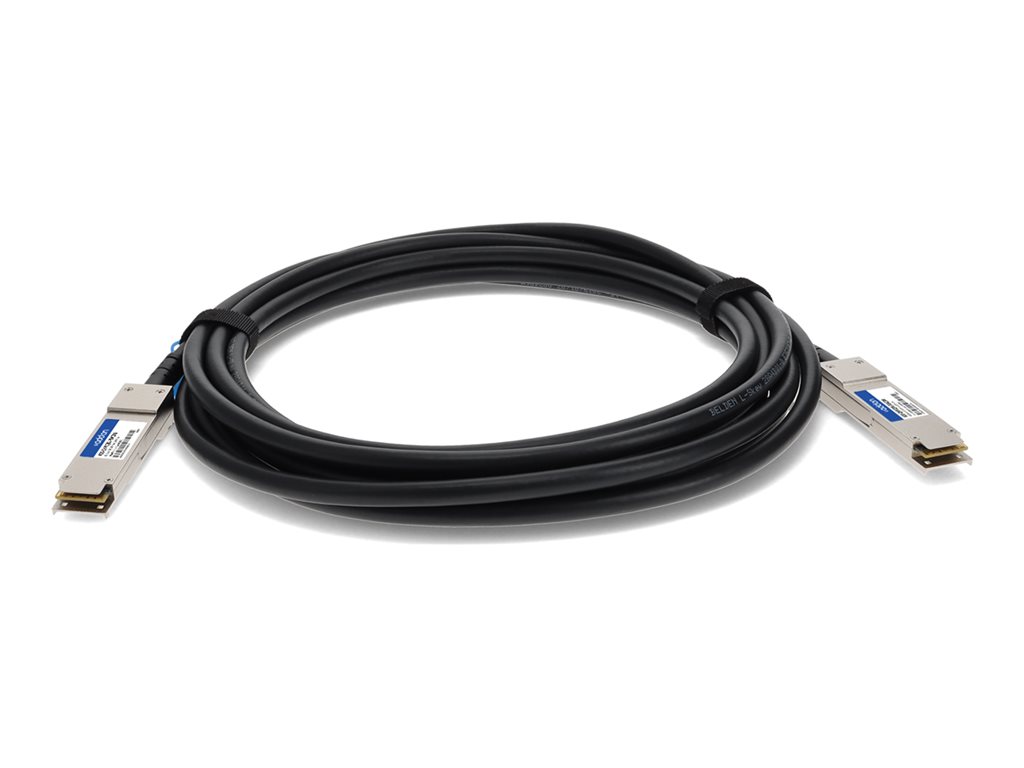

40GBase-CU direct attach cable - TAA Compliant - QSFP+ to QSFP+ - 10 ft - twinaxial - passive - for HPE Apollo 4200, 4200 Gen10; Edgeline e920; FlexFabric 12900E 36, 12XXX; ProLiant e910t 2U
| Main Specifications | |
|---|---|
| Product Description | AddOn 40GBase-CU direct attach cable - TAA Compliant - 10 ft |
| Type | 40GBase-CU direct attach cable |
| Technology | Twinaxial |
| Features | Passive cable, Hot-pluggable, copper conductors, low power consumption |
| Cable Length | 10 ft |
| Connector | QSFP+ |
| Connector (Second End) | QSFP+ |
| OEM Manufacturer Equivalent Part Number | HP JG327A, Palo Alto Networks PAN-QSFP-DAC-3M |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | HPE SN2100M 100, SN2410M 25; Apollo 4200, 4200 Gen10; Edgeline e920; FlexFabric 12900E 36, 12XXX, 5700, 5710 24, 5710 48, 59XX, 59XX 2-slot, 59XX 32QSFP28, 59XX 48SFP28, 79XX; FlexNetwork 10XXX, 75XX; ProLiant e910t 2U; StoreFabric SN2010, SN2100, SN2100M 100, SN2410, SN2410bM 10, SN2410M 25 |
| General | |
| Network Cable Type | 40GBase-CU direct attach cable |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 28 |
| Impedance | 100 ohm |
| Features | Passive cable, Hot-pluggable, copper conductors, low power consumption |
| Cable Length | 10 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | HP JG327A, Palo Alto Networks PAN-QSFP-DAC-3M |
| Compliant Standards | RoHS, Lead-Free, MSA, SFF-8436 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP+ |
| Connector (Second End) | QSFP+ |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9 in |
| Shipping Depth | 12 in |
| Shipping Height | 1 in |
| Shipping Weight | 6.38 oz |
| Compatibility Information | |
| Designed For | HPE 6125XLG Blade Switch, HB Module, HF Module, SN2100M 100GbE 16QSFP28 Switch, SN2410M 25GbE 48SFP28 8QSFP28 DC Switch, SN2410M 25GbE 48SFP28 8QSFP28 Switch ¦ HPE Altoline 6921 48SFP+ 6QSFP+ x86 ONIE AC Back-to-Front, 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back, 6921 48SFP+ 6QSFP+ x86 ONIE AC Front-to-Back Switch, 6921 48XGT 6QSFP+ x86 ONIE AC Back-to-Front, 6941 32QSFP+ x86 ONIE AC Back-to-Front, 6941 32QSFP+ x86 ONIE AC Front-to-Back Switch ¦ HPE Apollo 4200 Gen10 192TB Qumulo Hybrid Node, 4200 Gen10 336TB Archive Node with 25Gb NIC for Qumulo, 4200 Gen10 Qumulo Archive Node, 4200 Gen10 Qumulo Hybrid Node, 4200 Qumulo Archive Node, 4200 Qumulo Hybrid Node, 4200 Qumulo Node ¦ HPE Edgeline e920, e920d ¦ HPE FlexFabric 12900E, 12900E 36-Port 100GbE QSFP28 Type X Module, 12900E 36-Port 40GbE QSFP+ Type X Module, 12900E HB 59xx Slot Module, 12900E HD 59xx Slot Module, 5700-32XGT-8XG-2QSFP+ TAA, 5700-40XG-2QSFP+ TAA, 5700-48G-4XG-2QSFP+ TAA, 5710 24SFP+ 6QS+/2QS28, 5710 24XGT 6QSFP+ or 2QSFP28, 5710 48SFP+ 6QS+/2QS28, 5900AF-48XG-4QSFP+ Switch, 5930 2QSFP+ 2-slot, 5930 32QSFP+, 5930-2Slot+2QSFP+ TAA, 5930-32QSFP+ TAA, 5940 2-slot, 5945 2-slot, 5945 32QSFP28, 5945 48SFP28 8QSFP28, 5950 16-port QSFP+ Module, 5950 48SFP28 8QSFP28, 5950 MACsec Module, 5980, 7904 Switch Chassis, 7910 Switch Chassis ¦ HPE FlexNetwork 10500 M2SG Module, 10504 Switch Chassis, 10508 Switch Chassis, 10508-V Switch Chassis, 5510 24G PoE+ 4SFP+ HI 1-slot Switch, 5510 48G PoE+ 4SFP+ HI 1-slot Switch, 7502, 7503, 7503 Chassis, 7506 Chassis, 7506 Switch with 2x2.4Tbps Fabric and Main Processing Unit, 7510 Switch with 2x2.4Tbps Fabric and Main Processing Unit ¦ HPE ProLiant e910t 2U Node ¦ HPE StoreFabric SN2010M, SN2100M 100GbE 16 QSFP28 Half Width, SN2100M 100GbE 8 QSFP28 Half Width, SN2100M Half Width, SN2410bM, SN2410bM 10GbE 24SFP+ 4QSFP28, SN2410bM 10GbE 48SFP+ 8QSFP28, SN2410M, SN2410M 25GbE 24SFP28 4QSFP28, SN2410M 25GbE 48SFP28 8QSFP28 |
