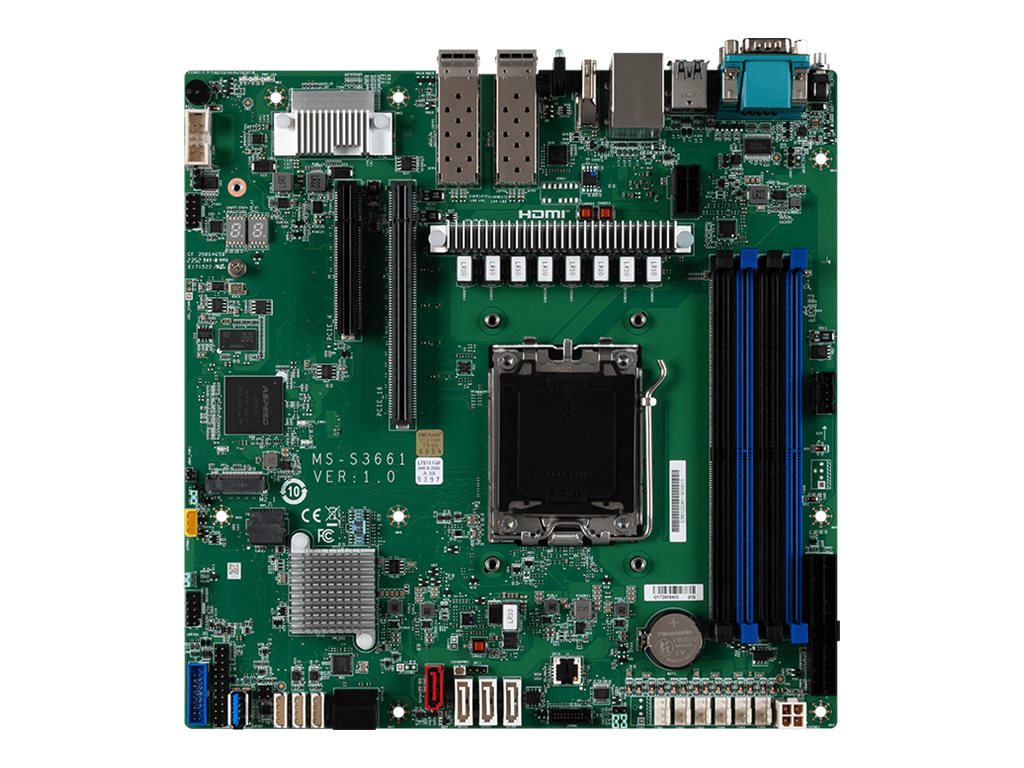

Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1 - 2 x 25 Gigabit LAN - onboard graphics
| Main Specifications | |
|---|---|
| Product Description | MSI D3052 - motherboard - micro ATX - Socket AM5 - AMD B650 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | Ryzen, EPYC |
| Max RAM Size | 192 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, ECC, unbuffered |
| Storage Ports | 4 x SATA-600, 2 x SATA-300, 1 x M.2 |
| USB / FireWire Ports | 4 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers) |
| Graphics | ASPEED AST2600 |
| LAN | 2 x 25 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen, EPYC |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x8 (x4 mode) ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-300 -connectors: 2 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x serial ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x management ¦ 2 x LAN (25Gigabit Ethernet) - SFP28 ¦ 1 x HDMI |
| Internal Interfaces | 1 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x GPIO - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories | IO shield |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC Class A certified |
| Width | 9.6 in |
| Depth | 9.6 in |
| Features | |
| BIOS Features | IPMI 2.0 support |
| LAN | |
| Network Controller | Intel E810-XXVAM2 |
| Network Interfaces | 2 x 25 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 2600 MHz, 1800 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
