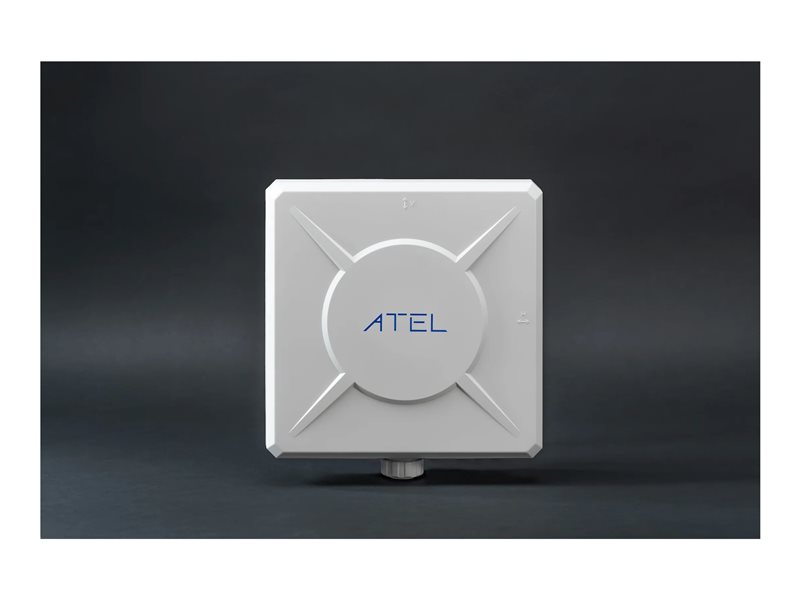

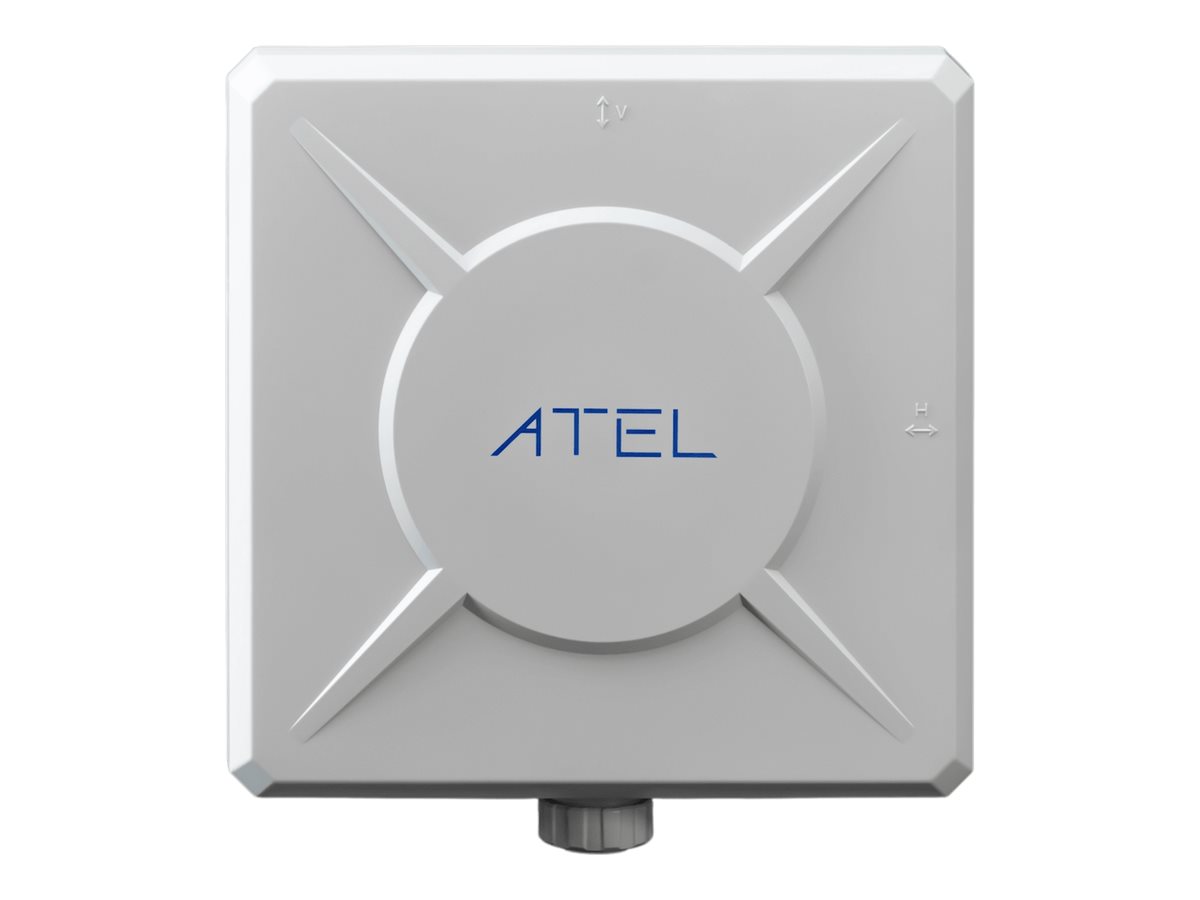

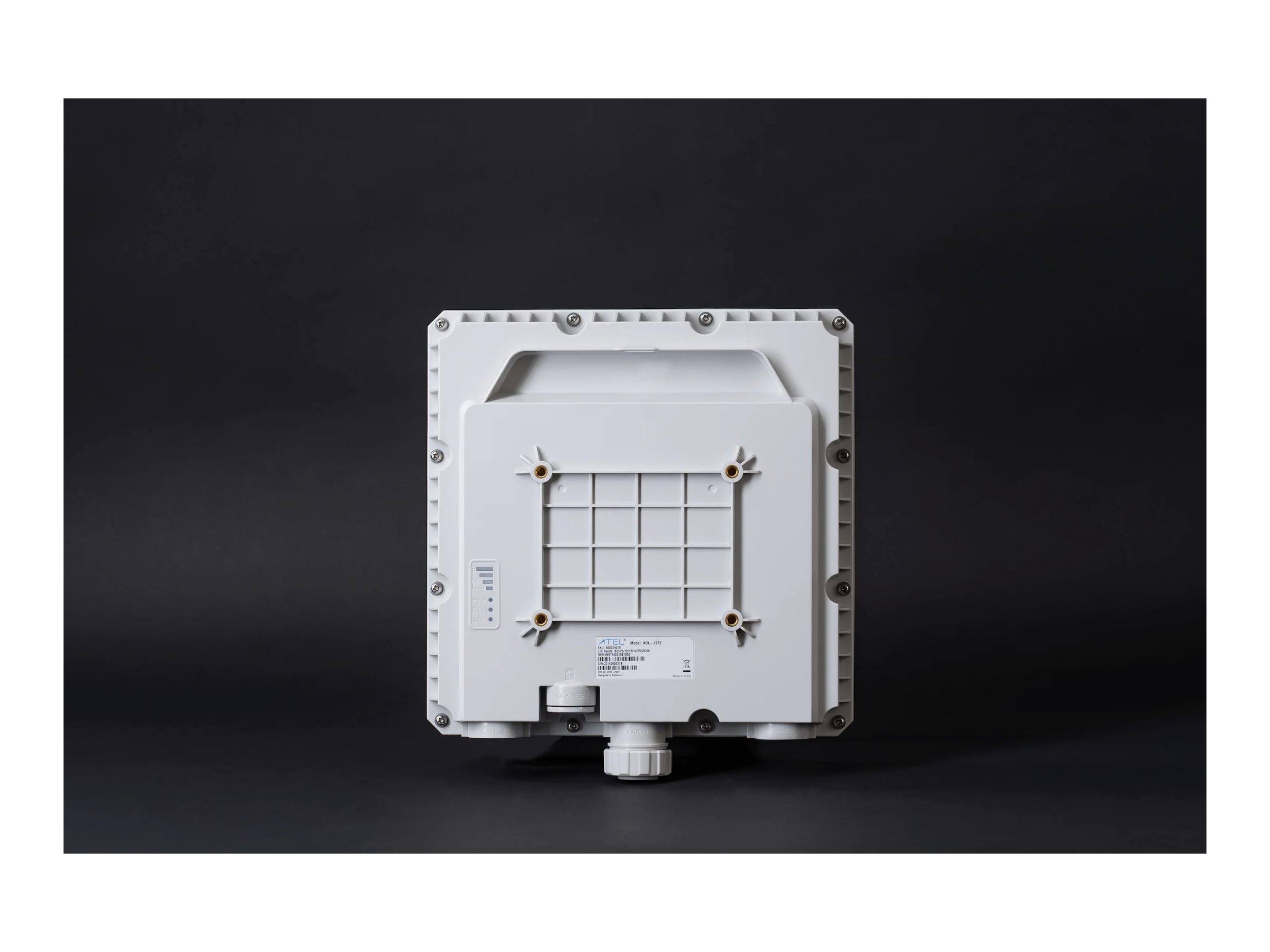

Wireless router - WWAN 1GbE - 4G - pole-mountable
| Main Specifications | |
|---|---|
| Product Description | ATEL Aire Pro AOL-J Series AOL-J912 - wireless router - WWAN - 4G - pole-mountable |
| Device Type | Wireless router - wireless cellular modem |
| Enclosure Type | Pole-mountable |
| Cellular Protocol | LTE CAT12, LTE CAT6, LTE Cat7 |
| Generation | 4G |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Downlink bandwidth: 600 Mbps ¦ Uplink bandwidth: 150 Mbps ¦ Bandwidth: 5 / 10 / 15 / 20 Mhz |
| Features | PoE powered, outdoor, 4x4 MIMO technology, waterproof, dustproof, 3GPP Release 12, TR-069 Remote Management, firmware upgradable, LED status indicators, reset button, plastic housing, UV stabilized enclosure |
| Color | Off-white |
| Dimensions (WxDxH) | 10.4 in x 3 in x 10.4 in |
| General | |
| Device Type | Wireless router |
| Enclosure Type | Pole-mountable |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Downlink bandwidth: 600 Mbps ¦ Uplink bandwidth: 150 Mbps ¦ Bandwidth: 5 / 10 / 15 / 20 Mhz |
| Features | PoE powered, outdoor, 4x4 MIMO technology, waterproof, dustproof, 3GPP Release 12, TR-069 Remote Management, firmware upgradable, LED status indicators, reset button, plastic housing, UV stabilized enclosure |
| Compliant Standards | IP67, IEEE 802.3af |
| Expansion / Connectivity | |
| Interfaces | LAN: 1 x 10/100/1G Ethernet - RJ-45 |
| Miscellaneous | |
| Enclosure Color | Off-white |

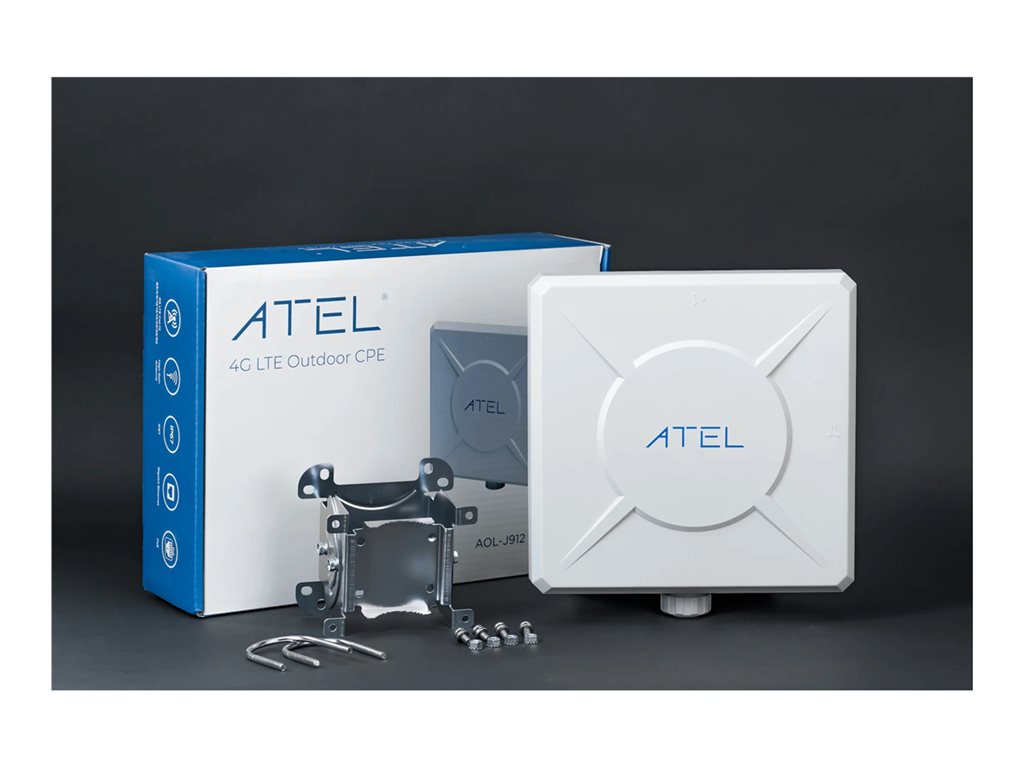

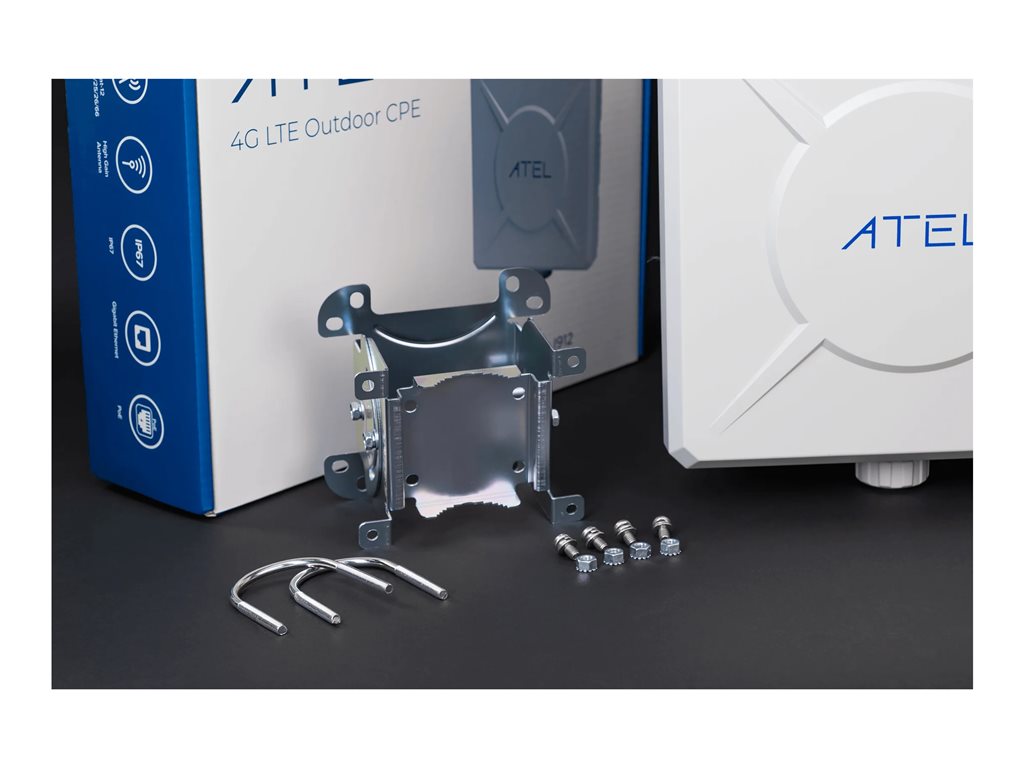

| Included Accessories | Fittings kit |
| Power | |
| Power Consumption Operational | 8 watt |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% |
| Communications | |
| Type | Wireless cellular modem |
| Cellular Protocol | LTE CAT12, LTE CAT6, LTE Cat7 |
| Generation | 4G |
| Dimensions & Weight | |
| Width | 10.4 in |
| Depth | 3 in |
| Height | 10.4 in |
