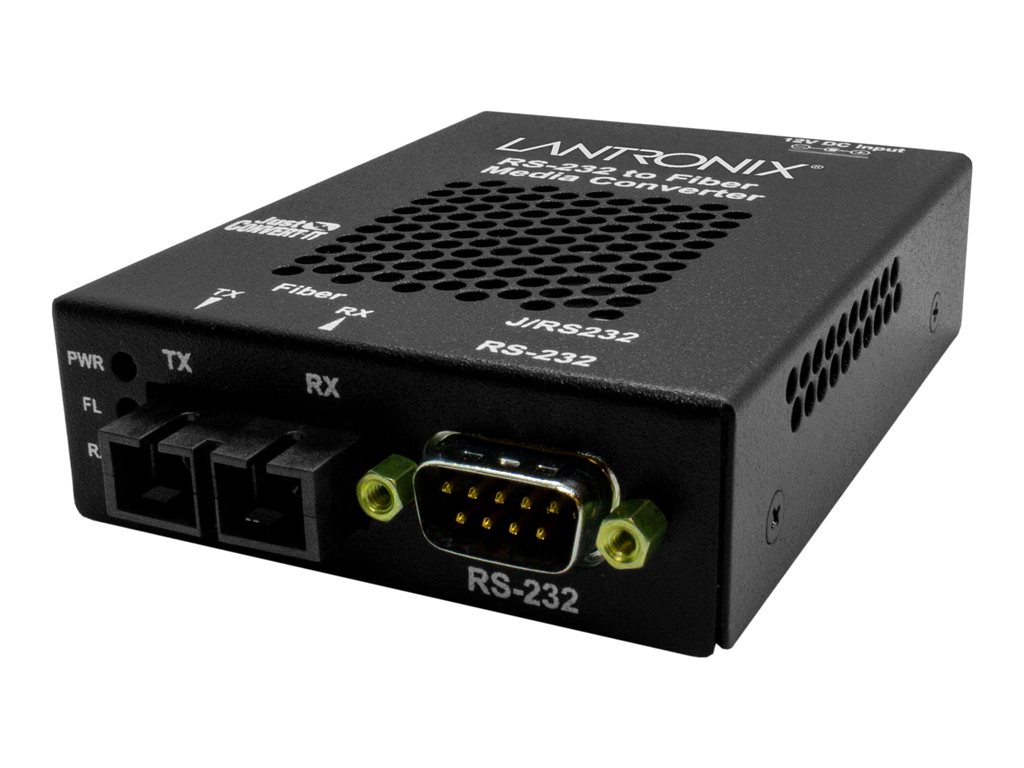

Media converter - RS-232 - serial RS-232 - RS-232 / SC multi-mode - up to 1.2 miles - 1300 nm - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix J/RS232 Series - media converter - RS-232 - TAA Compliant |
| Device Type | Media converter - RS-232 / SC multi-mode |
| Form Factor | External |
| Localization | North America |
| Cabling Type | Serial RS-232 |
| Data Transfer Rate | 120 Kbps |
| Optical Wave Length | 1300 nm |
| Data Link Protocol | RS-232 |
| Max Transfer Distance | 1.2 miles |
| Power | AC 120-240 V |
| Dimensions (WxDxH) | 3 in x 3.9 in x 1 in |
| Weight | 31.74 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Localization | North America |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - DB-9 male ¦ 1 x network - SC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | NDAA, UL, CSA, CISPR 22 Class A, EN 55022 Class A, EN55024, EN 60950 Class A, FCC Class A certified |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Serial RS-232 |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 120 Kbps |
| Optical Wave Length | 1300 nm |
| Max Transfer Distance | 1.2 miles |
| Status Indicators | Power, link, data, fiber |
| Features | Half duplex mode, full duplex mode, 11 dB link budget |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120-240 V |
| Power Consumption Operational | 3 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 31.74 oz |
