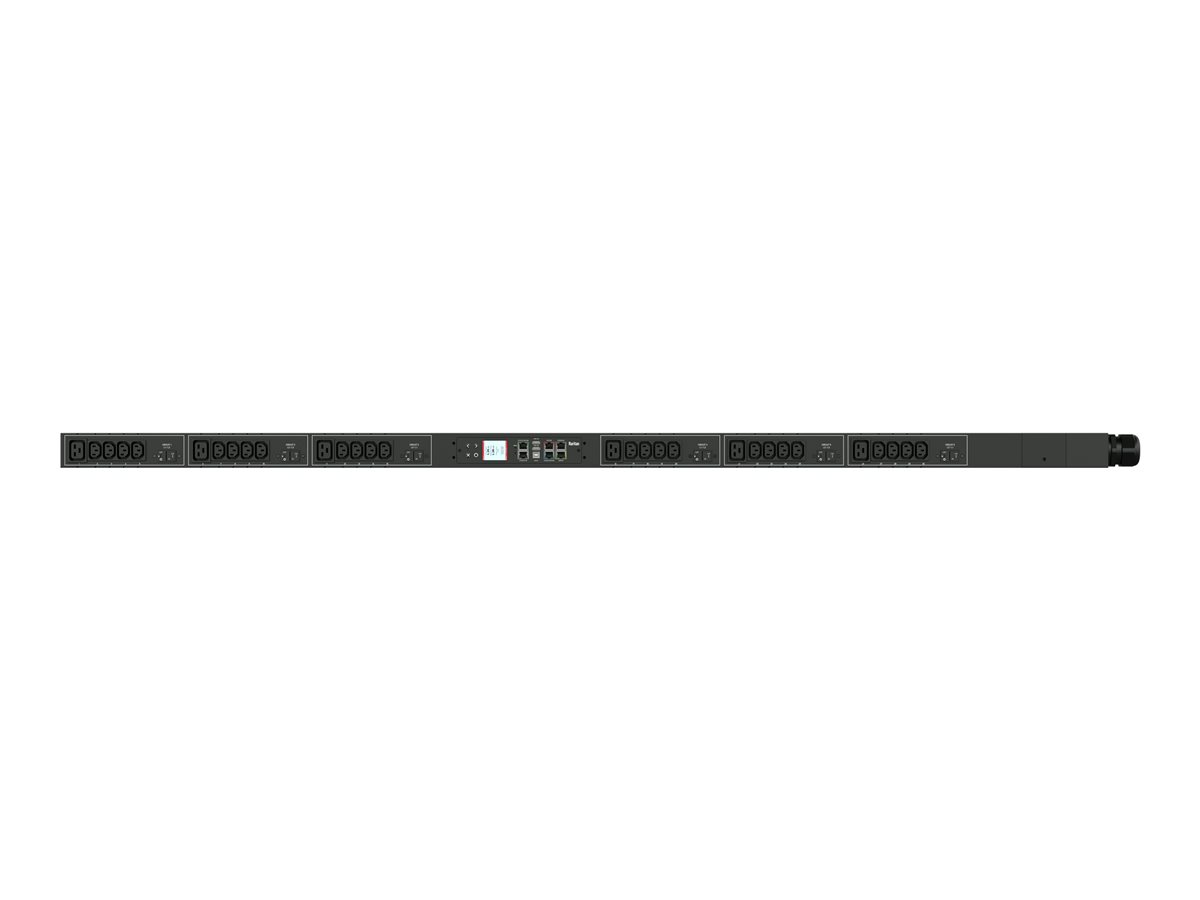

Power distribution unit (rack-mountable) - AC 208 V - 17300 VA - 3-phase delta - Ethernet 10/100, Ethernet 10/100/1000, USB, RS-232 - input: IEC 60309 3P+E - output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19) - 0U - 10 ft cord - red
| Main Specifications | |
|---|---|
| Product Description | Raritan PX3-1976V-V2 - power distribution unit - 17300 VA |
| Device Type | Power distribution unit - rack-mountable |
| Cord Length | 10 ft |
| Rack Size | 0U |
| Weight | 25.35 lbs |
| Input Wiring | 3-phase delta |
| Input Voltage | AC 208 V |
| Output Voltage | AC 240 V |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Output connectors | 24 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A |
| Networking | Ethernet 10/100, Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Dimensions (WxDxH) | 2.3 in x 3.1 in x 70.1 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Cord Length | 10 ft |
| Color | Red |
| Image Color Disclaimer | The displayed product image may be a different color |
| Expansion / Connectivity | |
| Interfaces | 1 x sensor - RJ-45 ¦ 1 x modem - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 10 ft |
| Rack Mounting Kit | Included |
| Features | Vertical orientation, voltage monitoring, current meter, active power meter, real power meter, energy meter, power factor meter, metering per input line, cascadable, LCD display, monitored, metering per branch circuit breaker, 6 x LEGBX66-20 overload protection, Raritan SecureLock Ready, replaceable controller, cord retention, bottom-bottom feed cord entry, watertight plug |
| Compliant Standards | ICES-003, FCC Part 15 A, RoHS, cULus, IEC 62053-21, ISO 62053-21, IP67, UL |
| Networking | |
| Remote Management Interface | Ethernet 10/100, Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, SNMP 3, Telnet, SNMP 2, SSH, SMTP, JSON-RPC, Modbus |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 85% |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E |
| Power Output Connectors Details | 24 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A |
| Output Voltage | AC 240 V |
| Max Electric Current | 60 A |
| Power Capacity | 17300 VA |
| Power Capacity Details | 17.3 kVA at 208 V, 20 kVA at 240 V |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.3 in |
| Depth | 3.1 in |
| Height | 70.1 in |
| Weight | 25.35 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 14.5 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 82.8 in |
| Shipping Weight | 33.07 lbs |
