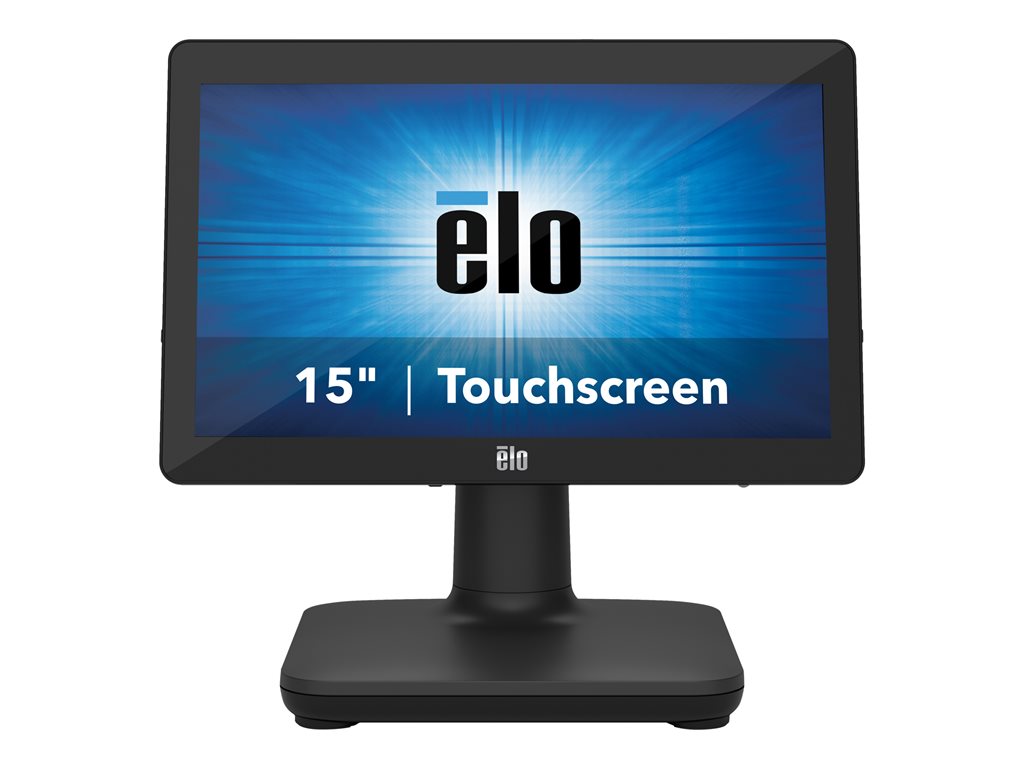

With Stand & I/O Hub - all-in-one 1 x Celeron J4125 / up to 2.7 GHz - RAM 8 GB - SSD 256 GB - UHD Graphics 600 - Gigabit Ethernet - Win 10 IoT Enterprise LTSB 64-bit - monitor: LED 15.6" 1366 x 768 (HD) @ 60 Hz touchscreen - black
| Main Specifications | |
|---|---|
| Product Description | EloPOS System - with Stand & I/O Hub - all-in-one Celeron J4125 2 GHz - 8 GB - SSD 256 GB - LED 15.6" |
| Type | Point of sale terminal - all-in-one |
| Processor | 1 x Intel Celeron J4125 / 2 GHz (up to 2.7 GHz, (Quad-Core) |
| Cache Memory | 4 MB |
| Cache Per Processor | 4 MB |
| RAM | 8 GB (installed) / 8 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 256 GB - SATA 6Gb/s - M.2 |
| Optical Storage | No optical drive |
| Monitor | 15.6" - LED - 1366 x 768 (HD) @ 60 Hz - 16:9 - touchscreen |
| Graphics Controller | Intel UHD Graphics 600 |
| Audio Output | Stereo |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0 |
| Power | (50/60 Hz) |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Color | Black |
| Dimensions (WxDxH) | 15.2 in x 8.7 in x 14.5 in |
| Weight | 10.8 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Built-in Devices | Dual 2 W speakers |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones/microphone ¦ 2 x serial - RJ-45 ¦ 1 x DisplayPort/USB-C 3.0 (up to 27W power) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Cable cover locking screw |
| Cables Included | RJ-45 to DB-9 cable |
| VESA Mounting Interface | 75 mm |
| Compliant Standards | UL, TUV, VCCI, cUL, Mexico NOM, CB, CCC, FCC, S Mark, RCM, C-Tick |
| RAM | |
| Installed Size | 8 GB (installed) / 8 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 1200 MHz |
| Rated Memory Speed | 1333 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Gigabit Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 180 watt |
| Power Consumption Operational | 24 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 20 - 80% |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Cache Memory | |
| Installed Size | 4 MB |
| Cache Per Processor | 4 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1366 x 768 (HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 90 |
| Vertical Viewing Angle | 50 |
| Response Time | 10 ms |
| Image Brightness | 187 cd/m² |
| Image Contrast Ratio | 400:1 |
| Monitor Features | TouchPro technology, Projected Capacitive Touch (PCT) technology |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 600 |
| Video Interfaces | USB-C |
| Audio Output | |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | SATA 6Gb/s |
| SSD Endurance | 80 TB |
| Dimensions & Weight | |
| Dimensions & Weight Details | 15.2 in - 8.7 in - 14.5 in - 10.8 lbs - with stand ¦ 15.2 in - 2.9 in - 9.8 in - 6.4 lbs - without stand |
| Width | 15.2 in |
| Depth | 8.7 in |
| Height | 14.5 in |
| Weight | 10.8 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 18.2 in |
| Shipping Depth | 11.8 in |
| Shipping Height | 18.5 in |
| Shipping Weight | 16.09 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron J4125 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.7 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.1 |
