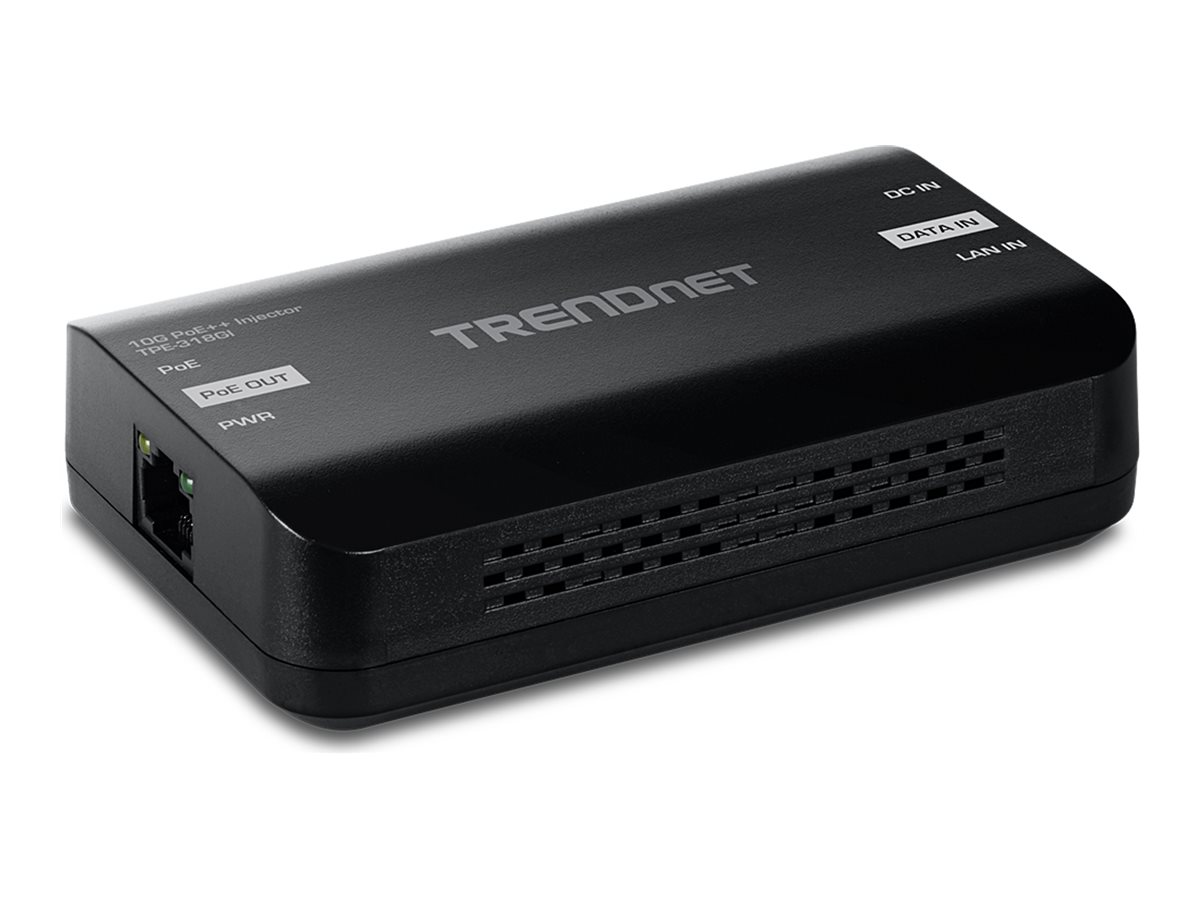

Version v1.0R - PoE injector - 10G - DC 54 V - 90 Watt - output connectors: 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | TRENDnet TPE-318GI - Version v1.0R - PoE injector - 10G - 90 Watt - TAA Compliant |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ |
| Weight | 23.7 oz |
| Input Voltage | DC 54 V |
| Power Capacity | 90 Watt |
| Input Connectors | 1 x power DC jack |
| Output connectors | 1 x RJ-45 |
| Included Accessories | Power adapter |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 4.3 in x 2.8 in x 1.1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x 10 Gigabit LAN - RJ-45 ¦ 1 x 10 Gigabit LAN (PoE++) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Features | Up to 100 m distance, wall mountable, magnetic wall-mount design, LED indicators, 90W PoE budget, Auto-Sensing Technology |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, NDAA, IEEE 802.3af, FCC, UKCA |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Power Device | |
| Input Voltage | DC 54 V |
| Input Connectors | 1 x power DC jack |
| Power Output Connectors Details | 1 x RJ-45 |
| Max Electric Current | 1.67 A |
| Power Capacity | 90 Watt |
| Dimensions & Weight | |
| Width | 4.3 in |
| Depth | 2.8 in |
| Height | 1.1 in |
| Weight | 23.7 oz |
