For Xbox - DLP projector - UHP - 4000 ANSI lumens - 3840 x 2160 - 16:9 - 4K
| Main Specifications | |
|---|---|
| Product Description | ViewSonic PX749-4K - for Xbox - DLP projector |
| Device Type | DLP projector - 4K |
| Smart Capable | Yes |
| Built-in Devices | Keypad |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 12000:1 (dynamic) |
| Resolution | 3840 x 2160 |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors |
| Lamp Type | UHP 240 Watt |
| Lamp Life Cycle | Up to 4000 hours - normal mode ¦ Up to 20000 hours - economic mode |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Speakers | Speaker(s) - external |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 310 Watt |
| Dimensions (WxDxH) | 12.3 in x 8.7 in x 4.3 in |
| Weight | 6.61 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector - 4K |
| Smart Capable | Yes |
| Built-in Devices | Keypad |
| Networking | Ethernet |
| Expansion / Connectivity | |

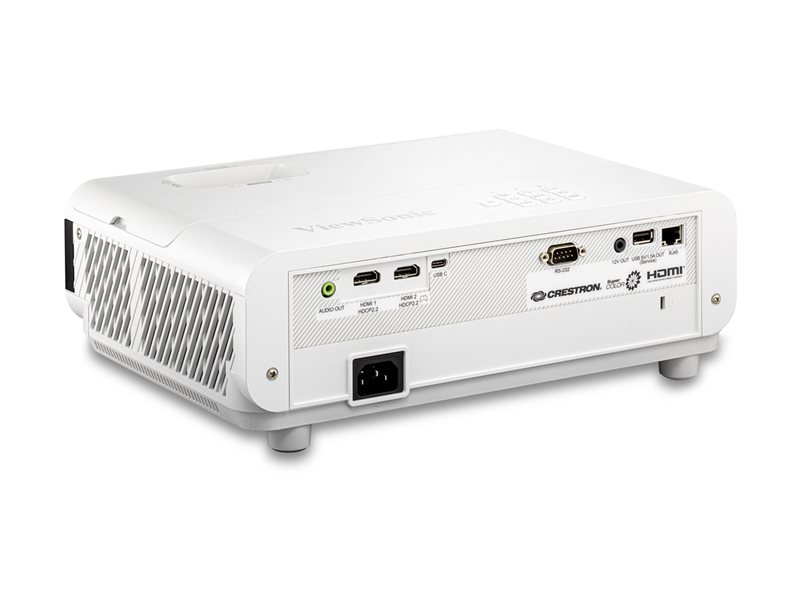

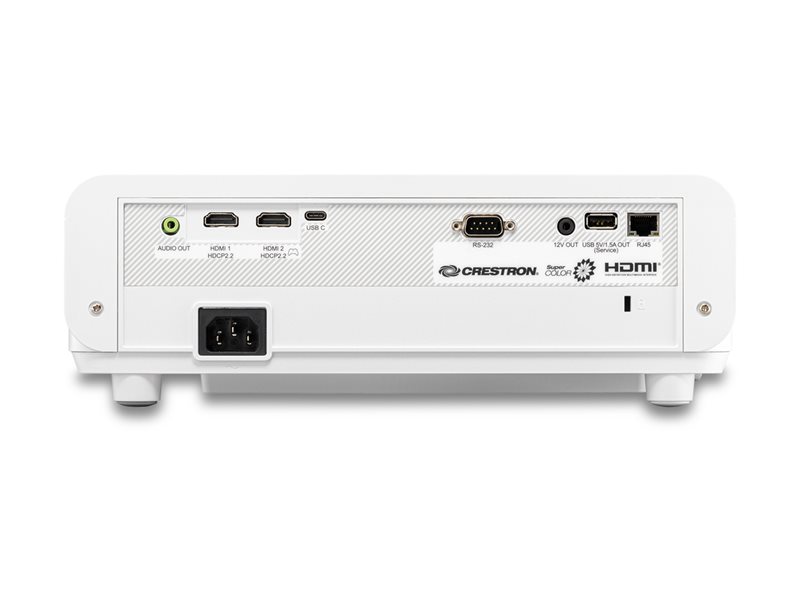

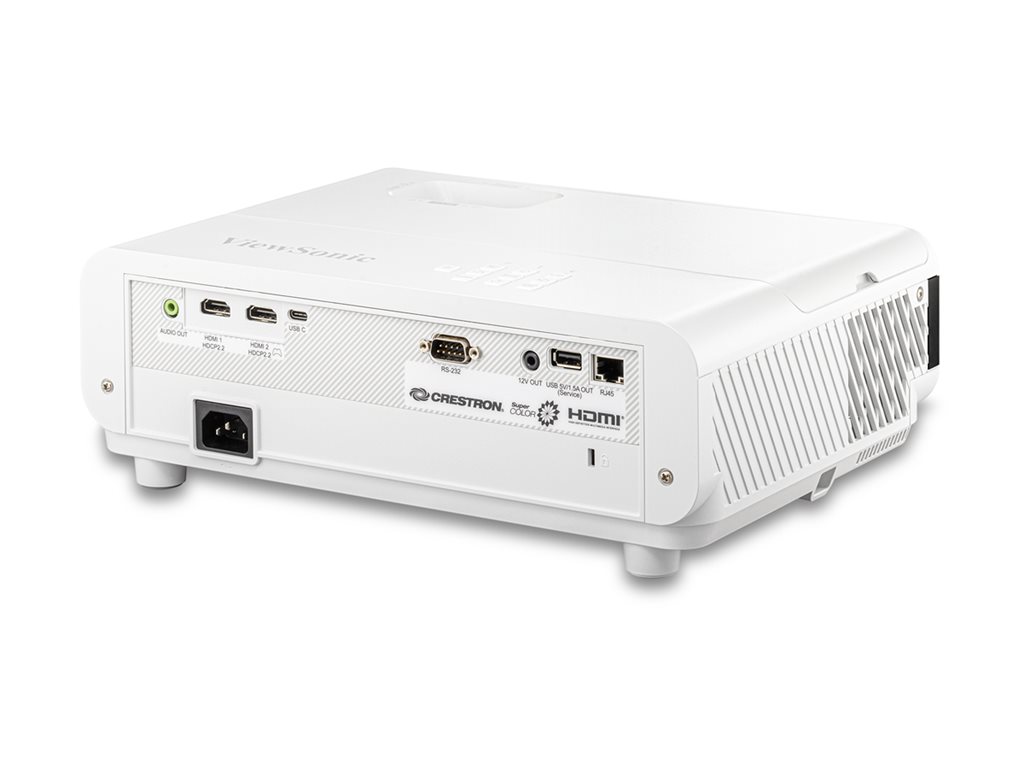

| Interfaces | 1 x USB-C - 24 pin USB-C ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x 12V programmable trigger - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB (service) - 4 pin USB Type A (management) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Remote control |
| Cables Included | 1 x USB-C cable - 3.3 ft |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | cTUVus |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 310 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Video Input | |
| Video Interfaces | HDMI, USB-C |
| Video Modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Dimensions & Weight | |
| Width | 12.3 in |
| Depth | 8.7 in |
| Height | 4.3 in |
| Weight | 6.61 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 16.3 in |
| Shipping Depth | 6.6 in |
| Shipping Height | 11.7 in |
| Shipping Weight | 8.6 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 4000 ANSI lumens |
| Contrast Ratio | 12000:1 (dynamic) |
| Image Size | 29.9 in - 300 in |
| Projection Distance | 2.5 ft - 32 ft |
| Throw Ratio | 1.13 - 1.47:1 |
| Resolution | Ultra HD 4K - 3840 x 2160 (native) / 3840 x 2160 (resized) |
| Native Aspect Ratio | 16:9 |
| Color Support | 1.07 billion colors |
| Max Sync Rate (V x H) | 240 Hz x 135 kHz |
| Lamp Type | UHP 240 Watt |
| Lamp Life Cycle | Up to 4000 hours - normal mode ¦ Up to 20000 hours - economic mode |
| Controls & Adjustments | Keystone correction, zoom, focus |
| OSD Languages | English, French, German, Spanish, Russian, Chinese (traditional), Chinese (simplified), Vietnamese, Swedish, Dutch, Turkish, Portuguese, Finnish, Indonesian, Italian, Japanese, Polish, Czech, Arabic, Korean |
| Features | High Dynamic Range (HDR), Hybrid Log-Gamma (HLG), 4.2 ms input lag, anti-warping stabilization, ViewSonic SuperColor |
| Lens | |
| Focus Type | Manual |
| Zoom Type | Manual |
| Zoom Factor | 1.3x |
| Keystone Correction Direction | Vertical, horizontal |
| Vertical Keystone Correction | -40 / +40 |
| Horizontal Keystone Correction | -40 / +40 |
| Speakers | |
| Type | External |
| Sound Output Mode | Stereo |
| Output Power / Channel | 10 Watt |
