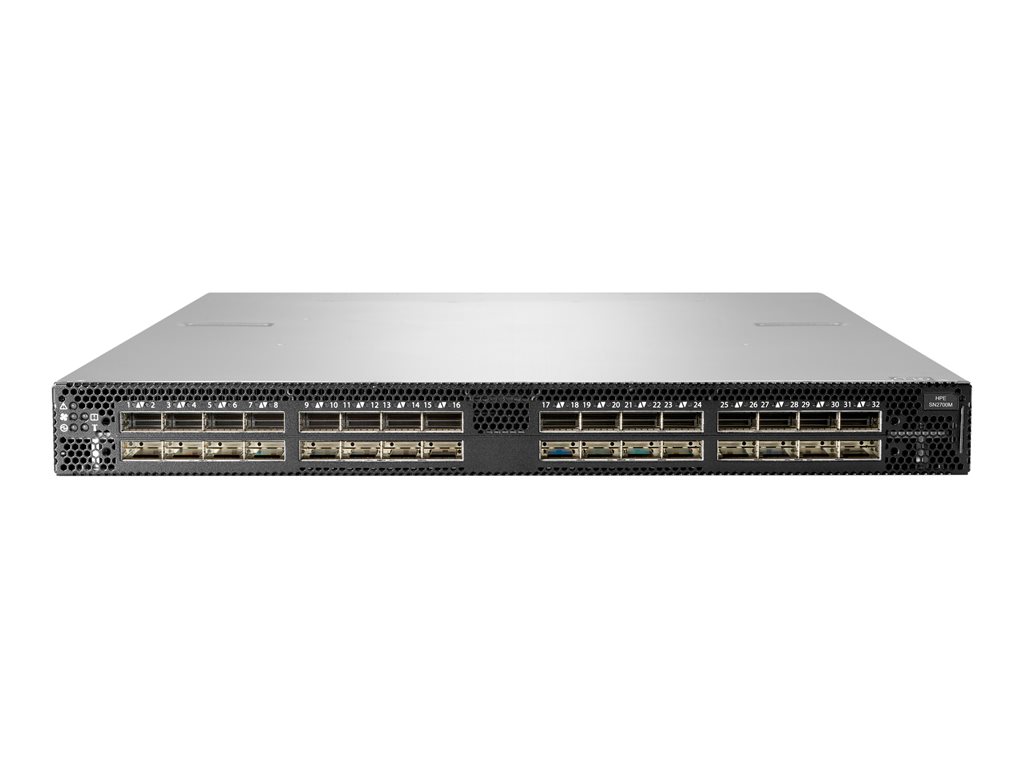

M-Series - switch - L3 - unmanaged - 32 x 100 Gigabit QSFP28 - back to front airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE SN2745M 100GbE 32QSFP28 Switch - M-Series - switch - 32 ports - unmanaged - rack-mountable |
| Device Type | Switch - 32 ports - L3 - unmanaged |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 6.4 Tbps ¦ Processing capacity: 4.76 Bpps ¦ Latency (100 Gbps): 300 ns |
| Capacity | Packet buffer size: 16 MB |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, BGP-4, MP-BGP, OSPFv2, PIM-SM, ECMP, IGMP, IGMPv3 |
| Remote Management Protocol | CLI, JSON, XML, TFTP, SCP, SNMP 1, SNMP 2, SNMP 3, DHCP, Syslog, Telnet, MIB |
| Features | ToR, layer 2 switching, layer 3 switching, NTP, CoPP, port isolation, LAG, VRF, OpenFlow support, VXLAN, SDN, LLDP, QoS, ACL support, port mirroring, sFlow v5, RoCE v2, IPv6 support, IPv4 support, OSPF, AS, BGP, VRRP support, BFD, DHCPv4 relay, DHCPv6 relay, LLDP support, flow control, auto-negotiation, RoCE, PIM, DHCP relay, MSTP support, DCBX support, 802.1x authentication, Storm Control, Protocol-based VLANs support, Root Guard, BPDU Guard, BPDU Filter, Loop Guard, Voice VLAN, TFTP support, AAA, FTP support |
| Compliant Standards | X.509, IEEE 802.3x, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3ae |
| Power | AC 100-264 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 1.7 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Switch - 32 ports - L3 - unmanaged |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 |
| Performance | Switching capacity: 6.4 Tbps ¦ Processing capacity: 4.76 Bpps ¦ Latency (100 Gbps): 300 ns |
| Capacity | Packet buffer size: 16 MB |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, BGP-4, MP-BGP, OSPFv2, PIM-SM, ECMP, IGMP, IGMPv3 |
| Remote Management Protocol | CLI, JSON, XML, TFTP, SCP, SNMP 1, SNMP 2, SNMP 3, DHCP, Syslog, Telnet, MIB |
| Authentication Method | RADIUS, TACACS+, LDAP, Secure Shell v.2 (SSH2), Secure Shell (SSH) |
| Features | ToR, layer 2 switching, layer 3 switching, NTP, CoPP, port isolation, LAG, VRF, OpenFlow support, VXLAN, SDN, LLDP, QoS, ACL support, port mirroring, sFlow v5, RoCE v2, IPv6 support, IPv4 support, OSPF, AS, BGP, VRRP support, BFD, DHCPv4 relay, DHCPv6 relay, LLDP support, flow control, auto-negotiation, RoCE, PIM, DHCP relay, MSTP support, DCBX support, 802.1x authentication, Storm Control, Protocol-based VLANs support, Root Guard, BPDU Guard, BPDU Filter, Loop Guard, Voice VLAN, TFTP support, AAA, FTP support |
| Compliant Standards | X.509, IEEE 802.3x, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3ae |
| RAM | 8 GB |
| Flash Memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit LAN QSFP28 ¦ 1 x USB Type A ¦ 2 x Gigabit LAN RJ-45 management ¦ 1 x serial RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Included Accessories | 4 fans |
| Rack Mounting Kit | Included |
| Compliant Standards | IEEE 802.1x, RoHS, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013, UL 60950-1:2007, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, LV CU TR 004/2011, EMC CU TR 020/2011, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 55032:2012 Class A, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2:2002, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2014, EN 61000-4-11:2004, FCC CFR47 Part 15:2017 Sub-part B:2019 Class A, ICES-003:2016 issue 6 Class A, VCCI V-3/2015.04 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009, IEC 60950-1:2005 Second Edition + A1:2009 + A2:2013, FIPS 140-2 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-264 V (50/60 Hz) |
| Power Consumption Stand by | 150 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Height | 1.7 in |
