Switch - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - side to side airflow - rack-mountable - PoE+ (740 W)
| Main Specifications | |
|---|---|

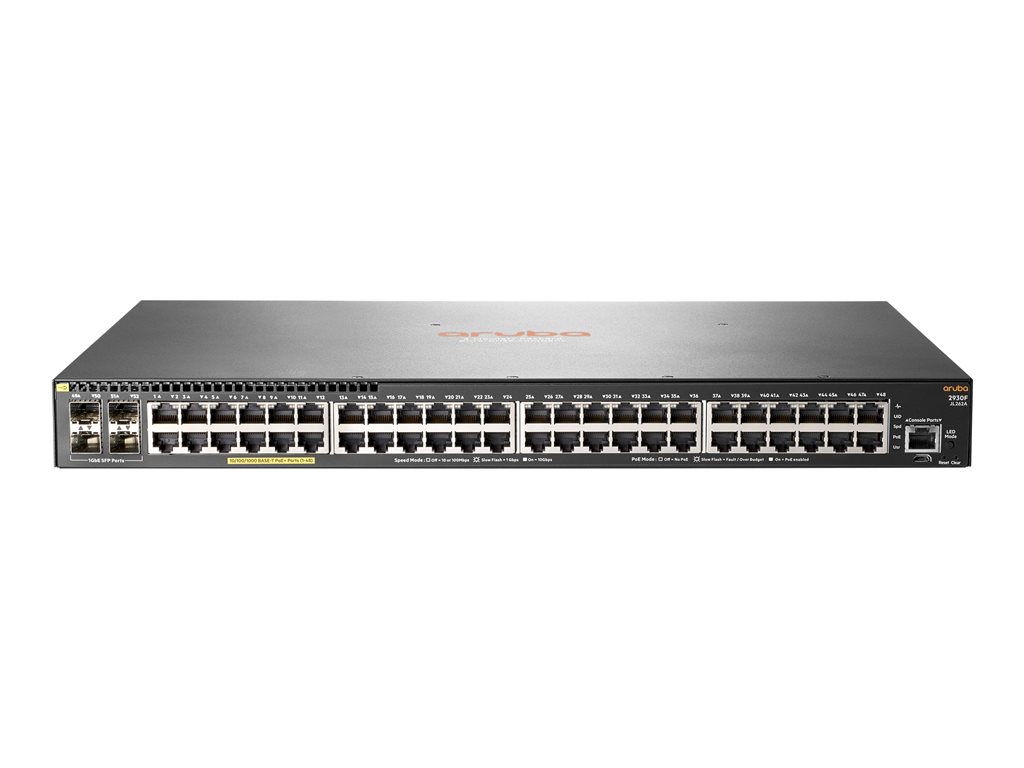

| Product Description | HPE Aruba 2930F 48G PoE+ 4SFP - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Throughput: 77.4 Mpps ¦ Switching capacity: 104 Gbps ¦ Latency (1000 Mbps): < 3.8 µs |
| Capacity | Jumbo frame size: 9220 ¦ OSPF: 200 ¦ Routing table entries (static): 256 ¦ IPv4 routing table size: 2000 ¦ IPv6 routing table size: 1000 ¦ Packet buffer size: 12.38 MB |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3ab |
| Dimensions (WxDxH) | 17.4 in x 12.8 in x 1.7 in |
| Weight | 10.56 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Throughput: 77.4 Mpps ¦ Switching capacity: 104 Gbps ¦ Latency (1000 Mbps): < 3.8 µs |
| Capacity | Jumbo frame size: 9220 ¦ OSPF: 200 ¦ Routing table entries (static): 256 ¦ IPv4 routing table size: 2000 ¦ IPv6 routing table size: 1000 ¦ Packet buffer size: 12.38 MB |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Features | Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, DHCP server, MLD snooping, STP Root Guard, UDLD, LLDP support, DHCP relay, LACP, MIB, MAC address lockout, dynamic ARP protection, DHCP protection, GVRP, MVRP, NDP, CoS, SNMP support, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3ab |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 4 x Gigabit LAN SFP uplink ¦ 2 x serial (console) RJ-45/Micro-USB Type B dual-personality ports |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL 60950-1 Second Edition, UL 62368-1 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 62368-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, IEC 62368-1 Second Edition, EN 60825-1:2014, IEC 60825-1:2014 Class 1, EN 55032:2012, CISPR 32 Class A, FCC CFR 47 Part 15 Class A, VCCI Class A, ICES-003 Class A, CNS 13438, EN 55024:2010, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-2, EN 61000-3-3 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% @ 40 °C (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% @ 65 °C (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 12.8 in |
| Height | 1.7 in |
| Weight | 10.56 lbs |
