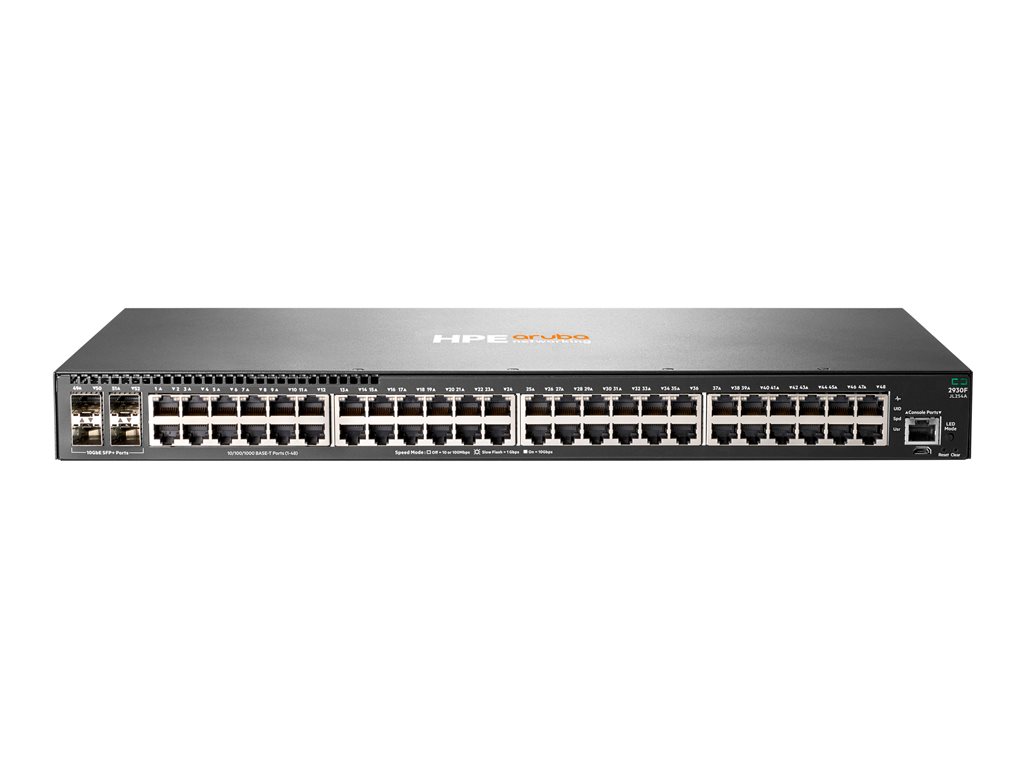

Switch - L3 - managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - side to side airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba 2930F 48G 4SFP+ - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Performance | Throughput: up to 112 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1000 Mbps): < 3.8 µs ¦ Latency (10 Gbps): < 1.6 µs |
| Capacity | IPv4 routing table size: 2000 ¦ IPv6 routing table size: 1000 ¦ Packet buffer size: 12.38 MB ¦ OSPF: 200 ¦ RIP routes: 10000 |
| MAC Address Table Size | 32768 entries |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, full duplex mode, half duplex mode, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Power | AC 100-127/200-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 9.7 in x 1.7 in |
| Weight | 6.83 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Performance | Throughput: up to 112 Mpps ¦ Switching capacity: 176 Gbps ¦ Latency (1000 Mbps): < 3.8 µs ¦ Latency (10 Gbps): < 1.6 µs |
| Capacity | IPv4 routing table size: 2000 ¦ IPv6 routing table size: 1000 ¦ Packet buffer size: 12.38 MB ¦ OSPF: 200 ¦ RIP routes: 10000 |
| MAC Address Table Size | 32768 entries |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, PAP, CHAP, TACACS, TACACS+ |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, STP support, MSTP support, ACL support, QoS, Jumbo Frames support, DHCP server, STP Root Guard, UDLD, LLDP support, LACP, MIB, MAC address lockout, dynamic ARP protection, full duplex mode, half duplex mode, DHCP protection, GVRP, MVRP, NDP, CoS, ToS, OpenFlow support, CPU protection, ICMP, ICMP IRDP, VXLAN, MIB II |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Processor | 1 x ARM Cortex-A9: 1.016 GHz |
| RAM | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 4 x Gigabit / 10Gbit LAN SFP+ PHY-less ¦ 1 x serial (console) RJ-45/Micro-USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL 60950-1 Second Edition, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, IEC 60950-1:2005 + A1:2009 + A2:2013, CSA C22.2 No. 60950-1-07 Second Edition, EN 60825-1:2007, IEC 60825-1:2007 Class 1, EN 55032:2012, CISPR 32 Class A, FCC CFR47 Part 15 A, VCCI Class A, ICES-003 Class A, CNS 13438, EN 55024:2010, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-2, EN 61000-3-3 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-127/200-240 V (50/60 Hz) |
| Power Consumption Stand by | 32.7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 15 - 95% @ 40 °C (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 15 - 95% @ 65 °C (non-condensing) |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 9.7 in |
| Height | 1.7 in |
| Weight | 6.83 lbs |
