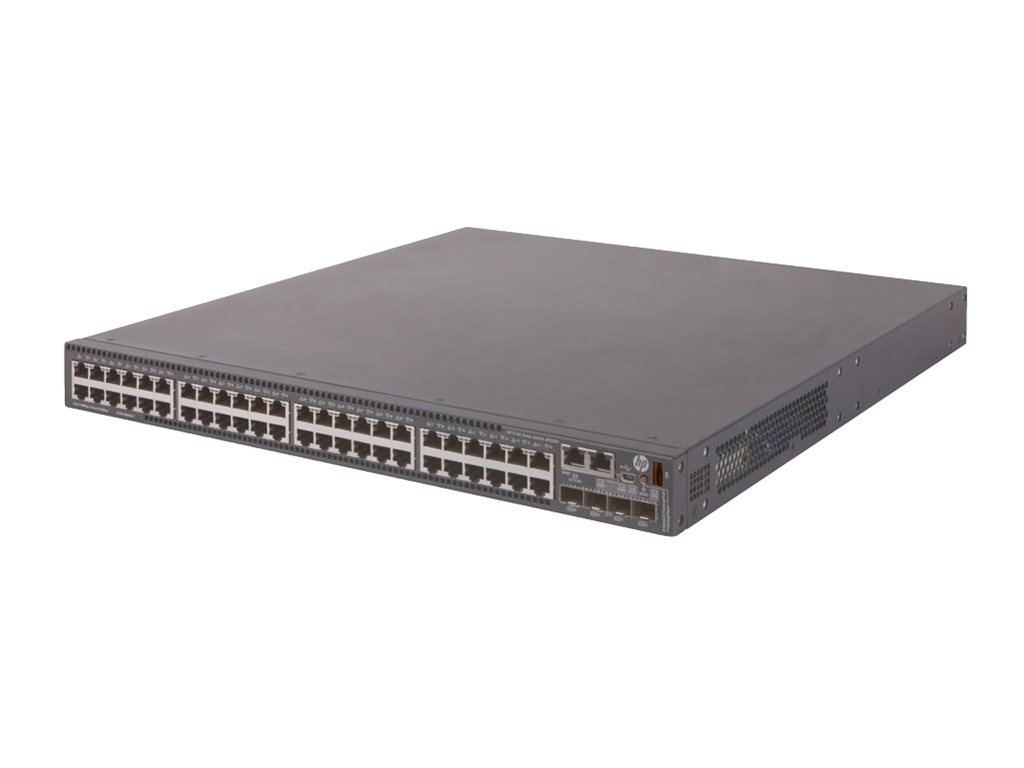

Switch - L3 - managed - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | HPE FlexNetwork 5130 HI - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Throughput: up to 190.5 Mpps ¦ Routing/switching capacity: 256 Gbps |
| Capacity | Simultaneous VLANs: 4094 ¦ IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, IGMPv3, MSDP, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, WRR queuing, IPv6 support, sFlow, STP support, RSTP support, VRRP support, MSTP support, PAgP support, ACL support, QoS, CAR, DHCP server, DLDP support, ECMP, STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, SP, GARP, IRF technology, OpenFlow support, IP source guard |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 14.2 in x 1.7 in |
| Weight | 16.53 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Throughput: up to 190.5 Mpps ¦ Routing/switching capacity: 256 Gbps |
| Capacity | Simultaneous VLANs: 4094 ¦ IPv4 routing table entries: 32768 ¦ IPv6 routing table entries: 16384 |
| Jumbo Frame Support | 9KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, IGMPv3, MSDP, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, WRR queuing, IPv6 support, sFlow, STP support, RSTP support, VRRP support, MSTP support, PAgP support, ACL support, QoS, CAR, DHCP server, DLDP support, ECMP, STP Root Guard, IPv4 support, LLDP support, Smart Link Pass-Through, dynamic ARP protection, DHCP protection, port isolation, non blocking ports, SP, GARP, IRF technology, OpenFlow support, IP source guard |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az |
| RAM | 2 GB SDRAM |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 10Gbit LAN SFP+ ¦ 1 x serial (console) ¦ 1 x USB 2.0 ¦ 1 x management (LAN) RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Installed Modules Qty (Max) | 1 (installed) / 1 (max) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 3 years |
| Miscellaneous | |
| Compliant Standards | VCCI, EN 61000-3-2, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, ANSI C63.4-2009, EN 60825-2, EN 61000-3-3:2008, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, CISPR 24:2010, EN 55022:2010 Class A, FCC CFR47 Part 15 A, EN 61000-4.4:2012, CAN/CSA-C22.2 No. 60950-1 |
| Power | |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 14.2 in |
| Height | 1.7 in |
| Weight | 16.53 lbs |
