Security appliance - 22 ports - 10GbE, 25GbE - 1U - rack-mountable
| Main Specifications | |
|---|---|

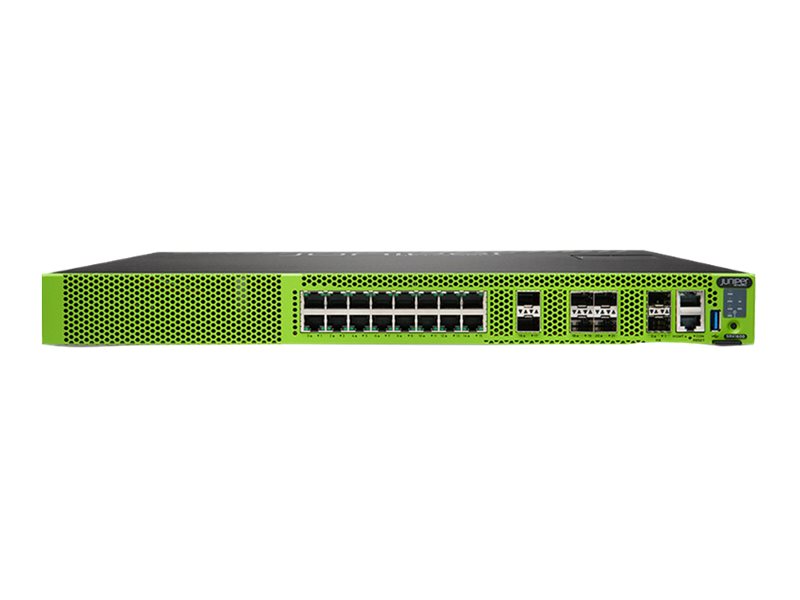

| Product Description | Juniper Networks SRX1600 - security appliance |
| Device Type | Security appliance |
| Form Factor | Rack-mountable - 1U |
| Hard Drive | 120 GB |
| Ports Qty | 22 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Firewall throughput (IMIX): 12 Gbps ¦ Firewall throughput (1518-byte packet size): 24 Gbps ¦ VPN throughput (IMIX): 8 Gbps ¦ VPN throughput (1400 B IPSec): 18 Gbps ¦ Security performance (TPS): 20 Gbps ¦ Next-generation firewall performance (TPS): 19 Gbps ¦ Next-generation firewall performance (CPS): 4 Gbps |
| Dimensions (WxDxH) | 17.3 in x 18.2 in x 1.7 in |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.3 in |
| Depth | 18.2 in |
| Height | 1.7 in |
| Expansion / Connectivity | |
| Interfaces | 16 x 10Gb Ethernet - RJ-45 ¦ 4 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28 ¦ 1 x USB 3.0 ¦ 1 x management ¦ 1 x console - RJ-45 ¦ 2 x SFP |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Compliant Standards | RoHS, FCC Class A certified |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 22 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | OSPF, OSPFv3, RIP-1, RIP-2, BGP, IGMP, IGMPv2, DVMRP, VRRP, PIM-SSM, MSDP, ECMP |
| Remote Management Protocol | SSH, Telnet, SNMP, HTTP |
| Performance | Firewall throughput (IMIX): 12 Gbps ¦ Firewall throughput (1518-byte packet size): 24 Gbps ¦ VPN throughput (IMIX): 8 Gbps ¦ VPN throughput (1400 B IPSec): 18 Gbps ¦ Security performance (TPS): 20 Gbps ¦ Next-generation firewall performance (TPS): 19 Gbps ¦ Next-generation firewall performance (CPS): 4 Gbps |
| Features | VPN support, PAT support, IPv6 support, URL filtering, DDos attack prevention, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), DHCP server, IPv4 support, LLDP support, DHCP relay, DHCP client, J-Flow, Inspect SSL Encrypted Traffic, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, anti-virus protection |
| Encryption Algorithm | DES, Triple DES, MD5, IKEv1, IKEv2, SHA-1, PKI, 256-bit AES |
| Authentication Method | Secure Shell (SSH), X.509 certificates |
| Compliant Standards | IEEE 802.1p, IEEE 802.1x |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 120 GB |
