Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, 5 Gigabit Ethernet, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
| Main Specifications | |
|---|---|

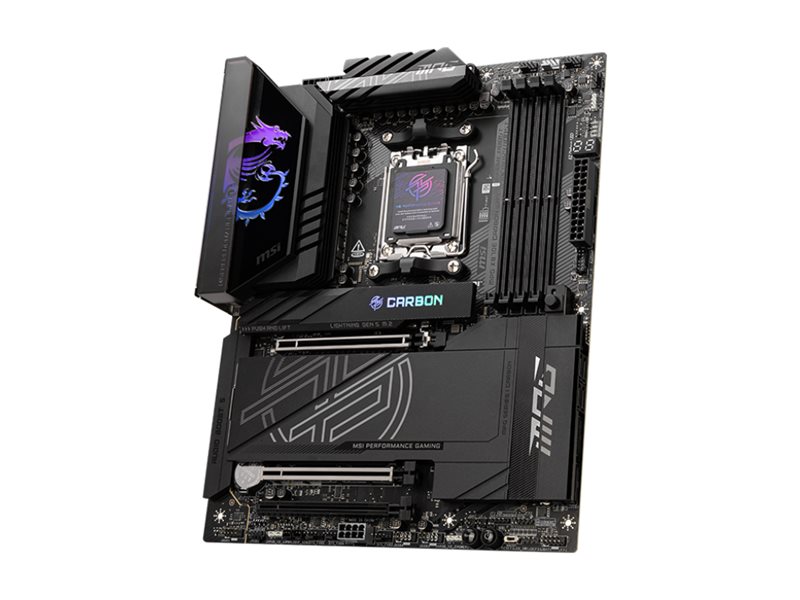

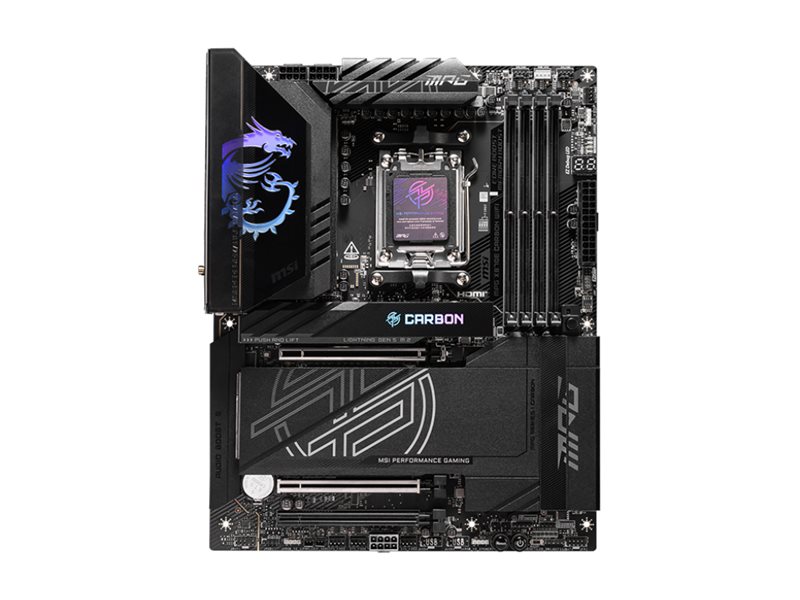

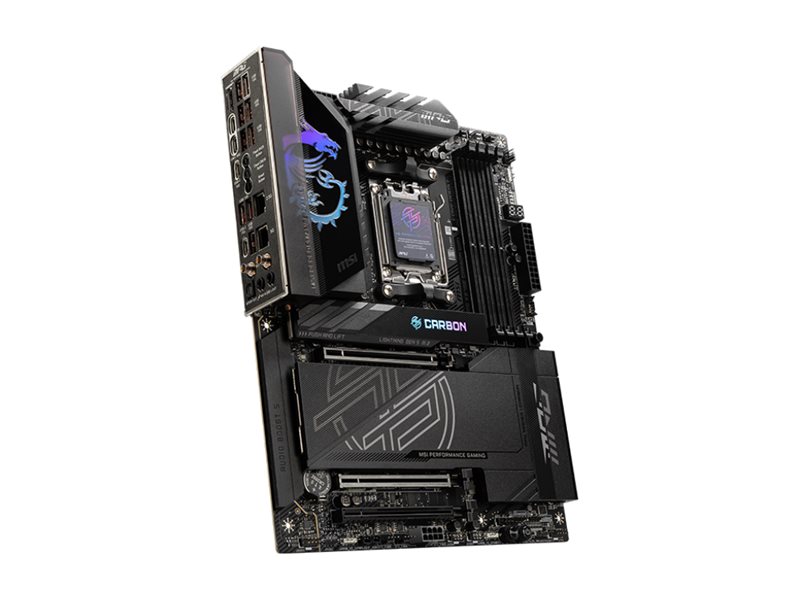

| Product Description | MSI MPG X870E CARBON WIFI - motherboard - ATX - Socket AM5 - AMD X870E |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E / Nuvoton NCT6687-R |
| Processor Socket | 1 x Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size | 256 GB |
| RAM Supported | 4 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 4 x M.2 |
| USB / FireWire Ports | 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 9 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| General | |
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E / Nuvoton NCT6687-R |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x4 ¦ 1 x PCIe 4.0 x4 ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI ¦ 9 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 2 x USB-C 3.2 Gen 2 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x antenna ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories | USB drive, ARGB RGB extension cable, 1 to 2 RGB LED extension Y cable, 1 to 3 EZ Conn-Cable, EZ front panel cable, Wi-Fi antenna, cable sticker, EZ M.2 clip, EZ M.2 clip remover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, MSI App Player, Norton 360, Voicemod |
| Compliant Standards | DisplayPort 1.4 |
| Width | 12 in |
| Depth | 9.6 in |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | MSI ClickBIOS, UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support |
| Hardware Features | CUDIMM support, MSI Audio Boost 5, MSI AI Engine, MSI Mystic Light, Frozr AI Cooling, Super Charger, MSI LAN Manager, M.2 Shield FROZR, EZ M.2 Clip II, EZ PCIe Release, Clear CMOS Button, flash BIOS button, pre-mounted I/O shield, Smart Button, EZ Debug LED, EZ LED control, Extended Heatsink Design, 2oz Copper PCB, lightning gen5 solution, MSI Core Boost, MSI Memory Boost, 18+2+1 Phase Power Design, 8 Layer PCB, AMD Precision Boost Overdrive (PBO), DIY Friendly Design, Enlarged Chipset Heatsink, EZ Conn-Design, MSI Steel Armor II |
| LAN | |
| Network Controller | Realtek RTL8125 / Realtek RTL8126 |
| Network Interfaces | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4200 MHz (O.C.), 2800 MHz (O.C.), 2800 MHz, 2400 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
