SFF Core i7 i7-14700 / up to 5.4 GHz - RAM 16 GB - SSD 256 GB - TCG Opal Encryption 2, NVMe - DVD-Writer - UHD Graphics 770 - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - Win 11 Pro - monitor: none - keyboard: English - black (chassis), gray (bezel) - Lenovo TopSeller
| Main Specifications | |
|---|---|
| Product Description | Lenovo ThinkCentre neo 50s Gen 5 - SFF Core i7 i7-14700 2.1 GHz - 16 GB - SSD 256 GB - English |
| Type | Personal computer - SFF |
| Localization | Language: English / region: United States |
| Processor | Intel Core i7 (14th Gen) i7-14700 / 2.1 GHz (up to 5.4 GHz, (20-core) |
| Cache Memory | 33 MB |
| Cache Per Processor | 33 MB |
| RAM | 16 GB (installed) / 64 GB (max) - DDR5 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express 4.0 x4 - M.2 2280 - TCG Opal Encryption 2, NVM Express (NVMe) |
| Optical Storage | DVD-Writer |
| Graphics Controller | Intel UHD Graphics 770 shared video memory (UMA) |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Wi-Fi 6E, Bluetooth 5.3 |
| Keyboard | English |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Color | Black (chassis), gray (bezel) |
| Dimensions (WxDxH) | 3.6 in x 11.5 in x 13.4 in |
| Weight | 9.26 lbs |
| Manufacturer Selling Program | Lenovo TopSeller |
| Environmental Standards | TCO Certified Desktops 9, ENERGY STAR Qualified EPEAT Silver |
| General | |
| Type | Personal computer |
| Product Form Factor | SFF |
| Built-in Devices | Speaker |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black (chassis), gray (bezel) |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 PCIe 3.0 x1 - low-profile ¦ 1 PCIe 3.0 x16 - low-profile |

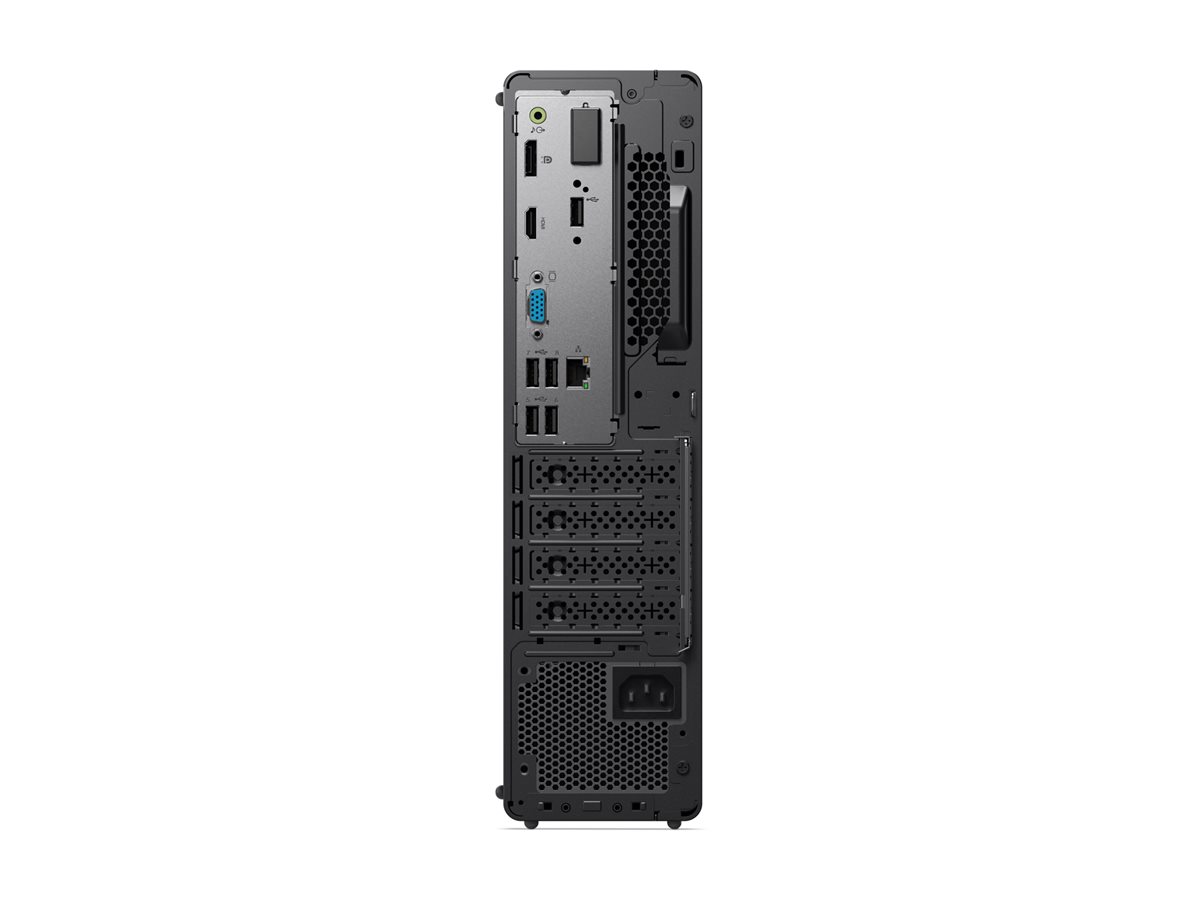

| Interfaces | 1 x USB-C 3.2 Gen 1 (1 front) (15W charging) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 1 x headphones/microphone (1 front) ¦ 1 x microphone (1 front) ¦ 3 x USB 2.0 (3 rear) ¦ 1 x HDMI (1 rear) (TMDS compatible) ¦ 1 x DisplayPort 1.4 (1 rear) ¦ 1 x VGA (1 rear) ¦ 1 x LAN (1 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x USB 2.0 (1 rear) (supports SmartPower On) |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | TCG Certified |
| Manufacturer Selling Program | Lenovo TopSeller |
| RAM | |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 5600 MT/s |
| Rated Memory Speed | 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 2 (total) / 1 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 260 watt |
| Efficiency | 90% |
| Cache Memory | |
| Installed Size | 33 MB |
| Cache Per Processor | 33 MB |
| Optical Storage | |
| Type | DVD±RW DVD-Writer - SATA |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Hard Drive | |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | TCG Opal Encryption 2, NVM Express (NVMe) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 3.6 in |
| Depth | 11.5 in |
| Height | 13.4 in |
| Weight | 9.26 lbs |
| Keyboard | |
| Keyboard Name | Lenovo Traditional Keyboard |
| Interface | USB |
| Localization & Layout | English |
| Mouse | |
| Mouse Name | Lenovo Calliope Mouse |
| Interface | USB |
| Processor / Chipset | |
| CPU | Intel Core i7 (14th Gen) i7-14700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 20-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel B760 |
| Sustainability Information | |
| TCO Certified | TCO Certified Desktops 9 |
| EPEAT Compliant | EPEAT Silver |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
