Video/audio extender - over CAT 6 - up to 230 ft - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series 3-Port DisplayPort to DisplayPort Splitter/Extender Kit over Cat6, MST Hub, 8K/4K 60 Hz, DP 1.4, Up to 230 ft. (70 m), TAA - video/audio extender - TAA Compliant |
| Device Type | Video/audio extender |
| Form Factor | External |
| Localization | North America, Europe, United Kingdom, Australia |
| Transmission Medium | CAT 6 |
| Max Transfer Distance | 230 ft |
| Power | AC 100-240 V |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: P568FA-100M-WR, P568FA-10M, P568FA-20M, P568FA-30M-W, P568FA-50M-W, P568FA-70M-WR |
| General | |
| Device Type | Video/audio extender |
| Form Factor | External |
| Localization | North America, Europe, United Kingdom, Australia |
| Expansion / Connectivity | |

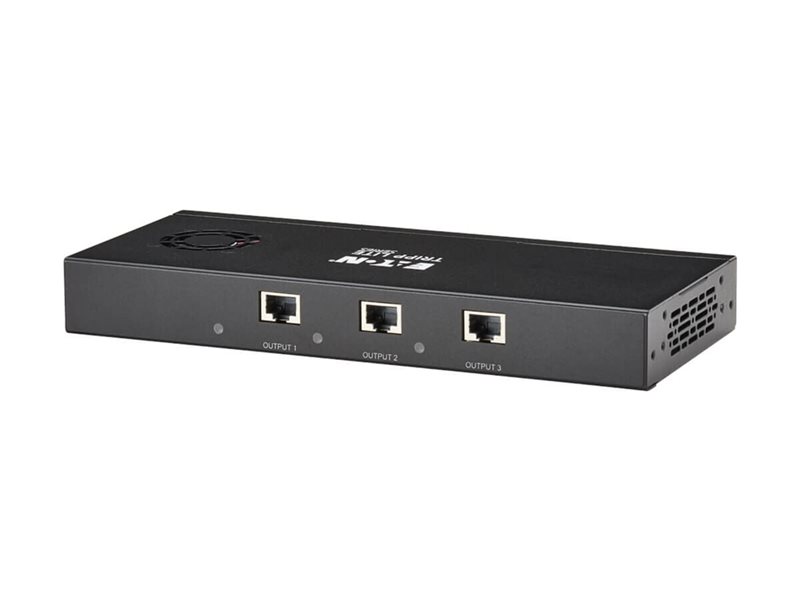

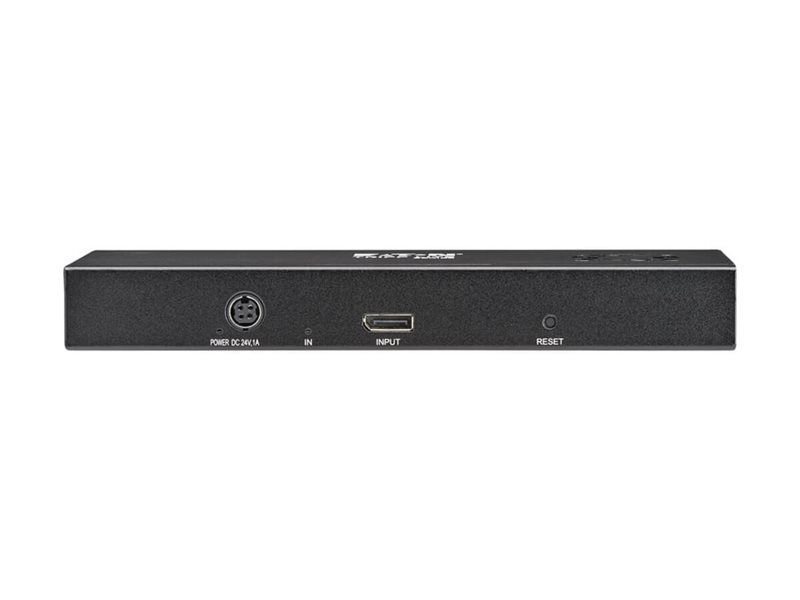

| Interfaces | 3 x DisplayPort (output) male ¦ 1 x DisplayPort (input) female ¦ 3 x network (output) - RJ-45 female ¦ 3 x network (input) - RJ-45 female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

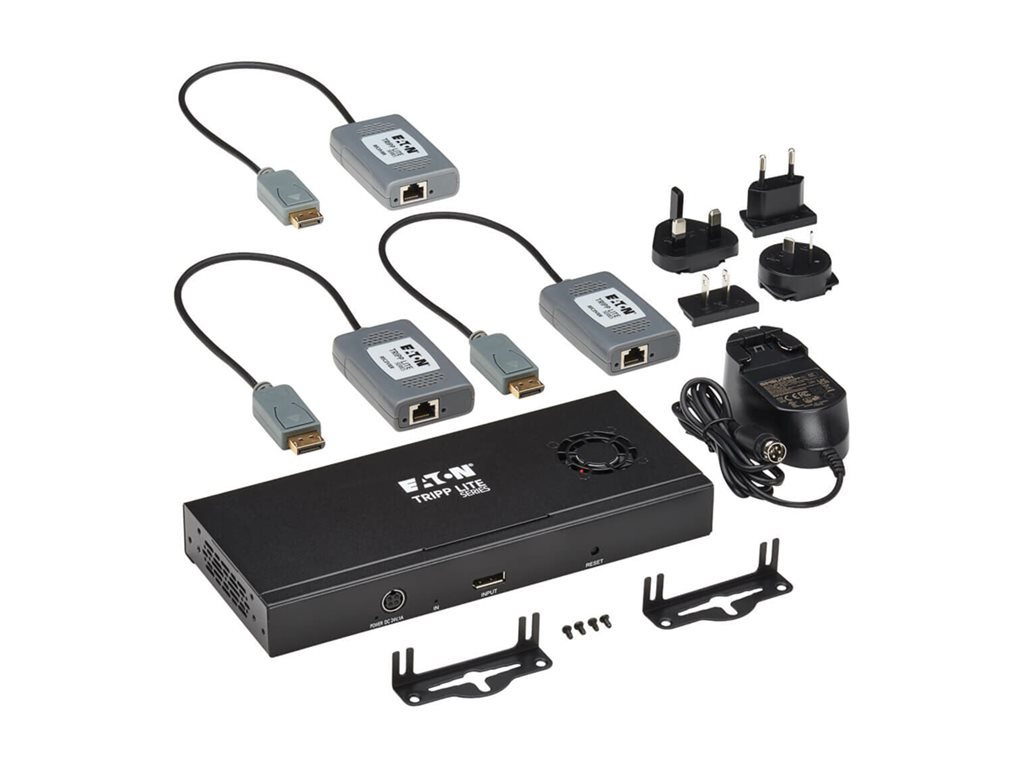

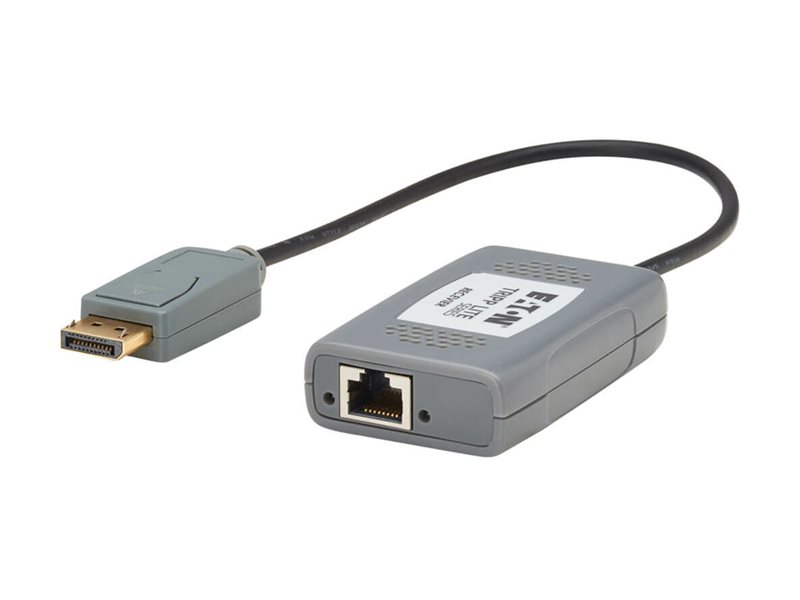

| Included Accessories | 3 x DisplayPort receivers, 4 power plug adapters |
| Cables Included | 1 x power cable - 4.6 ft |

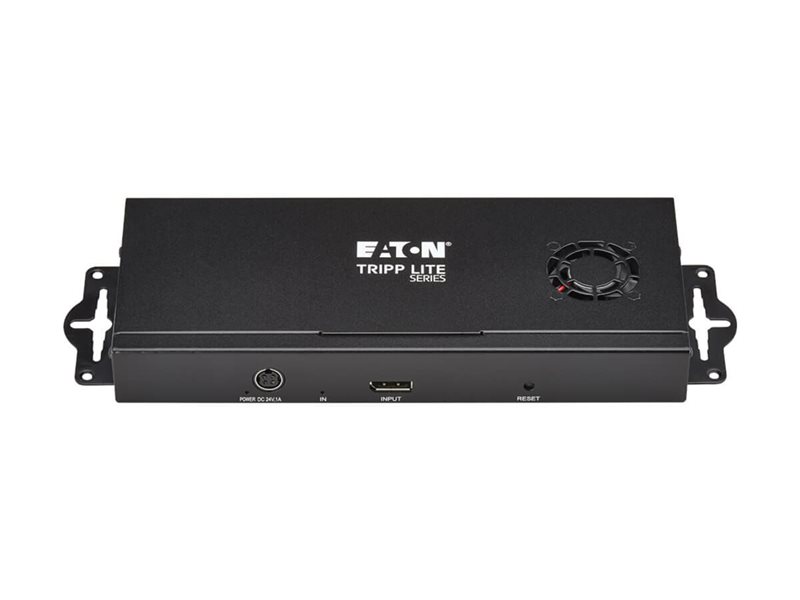

| Mounting Kit | Included |
| Compliant Standards | Plug and Play, DisplayPort 1.4, DisplayPort 1.2, FCC, UL, cUL, RoHS, WEEE, GSA |
| TAA Compliant | Yes |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 230 ft |
| Status Indicators | Signal, power |
| Features | DisplayPort Multi-Stream Transport (MST) support, video mirror mode, video wall function, extended display mode, power over cable (PoC), 12-bit Deep Color support, LPCM 2.0 support, HDR support, metal housing, rugged, 3D support, 4:4:4 chroma subsampling support, 4:2:2 chroma subsampling support, 4:2:0 chroma subsampling support, AC3 support, DTS support, reset button |
| Compliant Standards | HDCP 2.3, HDCP 1.4 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 26.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details | Transmitter: 3.9 in x 1.2 in x 9.3 in / 2.5 lbs ¦ Receiver: 1.8 in x 0.7 in x 3 in / 7.8 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.3 in |
| Shipping Depth | 13.7 in |
| Shipping Height | 4.2 in |
| Shipping Weight | 4.85 lbs |
| Compatibility Information | |
| Designed For | P/N: P568FA-100M-WR, P568FA-10M, P568FA-20M, P568FA-30M-W, P568FA-50M-W, P568FA-70M-WR |
