4K 60 Hz, HDCP, IEC Compliant, TAA - Surge protector - output connectors: 1 - black - TAA Compliant
| Main Specifications | |
|---|---|

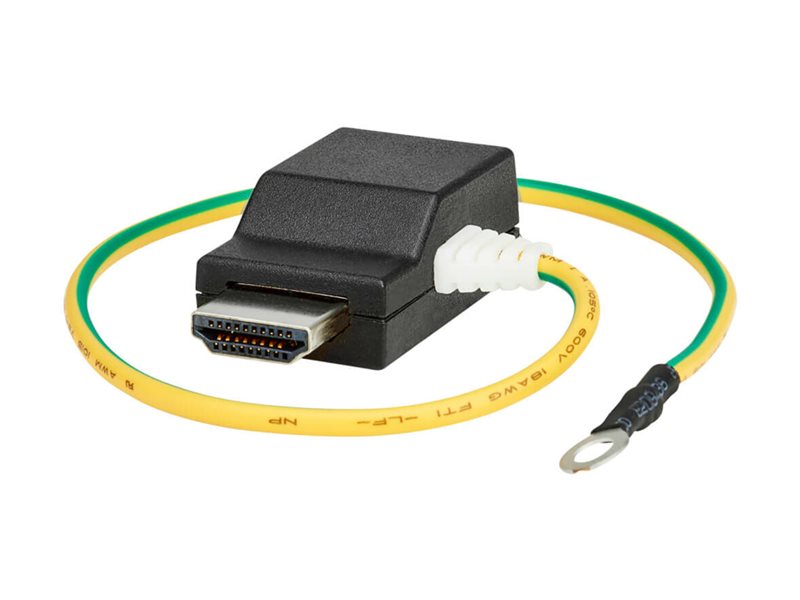

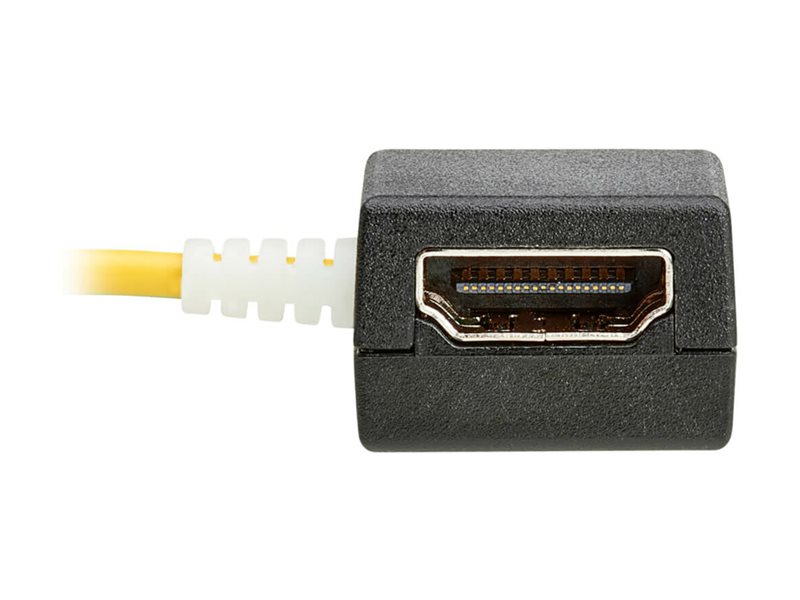

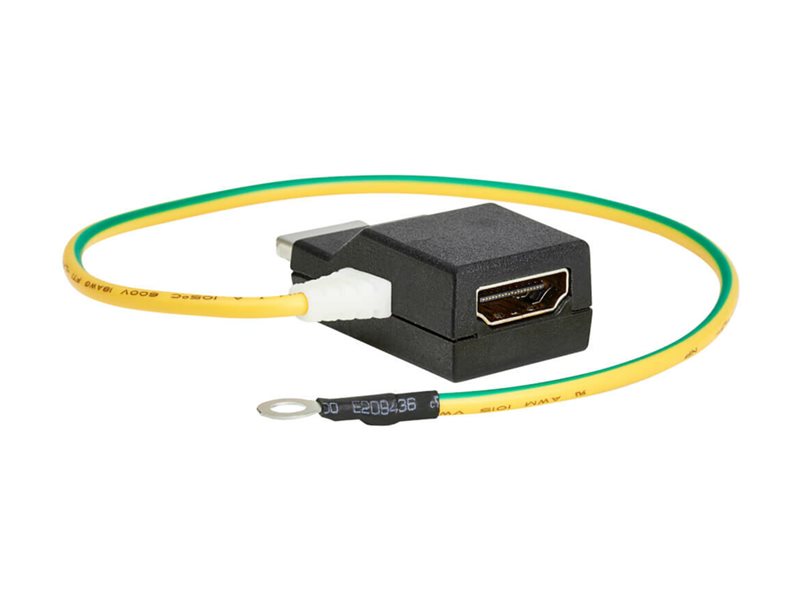

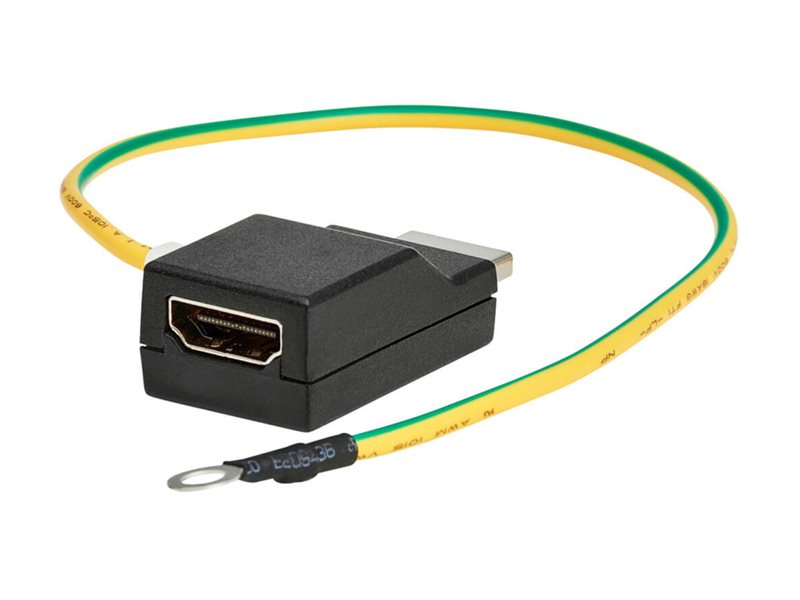

| Product Description | Eaton Tripp Lite Series In-Line HDMI Surge Protector - 4K 60 Hz, HDCP, IEC Compliant, TAA - surge protector - TAA Compliant |
| Device Type | Surge protector - external |
| Weight | 15.87 oz |
| Input Connectors | 1 x 19 pin HDMI Type A |
| Included Accessories | Ground wire screw |
| Color | Black |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 1.4 in x 0.9 in x 0.6 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Surge protector - external |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Ground wire screw |
| Cables Included | Ground cable - integrated - 1 ft |
| Features | ESD protection, 4K60Hz support, ABS housing, 5m signal range, silicon avalanche diodes (SAD), 15kV ESD protection (Air), 8kV ESD protection (Contract), 40A (5/50ns) EFT Protection, 5A (8/20?s) lightning protection |
| Compliant Standards | Plug and Play, HDCP, GSA, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55032, EN 55035, ICES, IEC 61000, FCC Part 15 Class B, RoHS |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% RH (non-condensing) |
| Power Device | |
| Input Connectors | 1 x 19 pin HDMI Type A |
| Dataline Surge Protection | Audio/video - 19 pin HDMI Type A - 1 input line / 1 output line |
| Surge Suppression | Yes |
| Surge Response Time | 1 ns |
| Dimensions & Weight | |
| Width | 1.4 in |
| Depth | 0.9 in |
| Height | 0.6 in |
| Weight | 15.87 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.1 in |
| Shipping Depth | 4.8 in |
| Shipping Height | 1.3 in |
| Shipping Weight | 26.81 oz |
