DLP projector - laser/phosphor - 3D - 25000 ANSI lumens - 2560 x 1600 - 16:10 - no lens
| Main Specifications | |
|---|---|

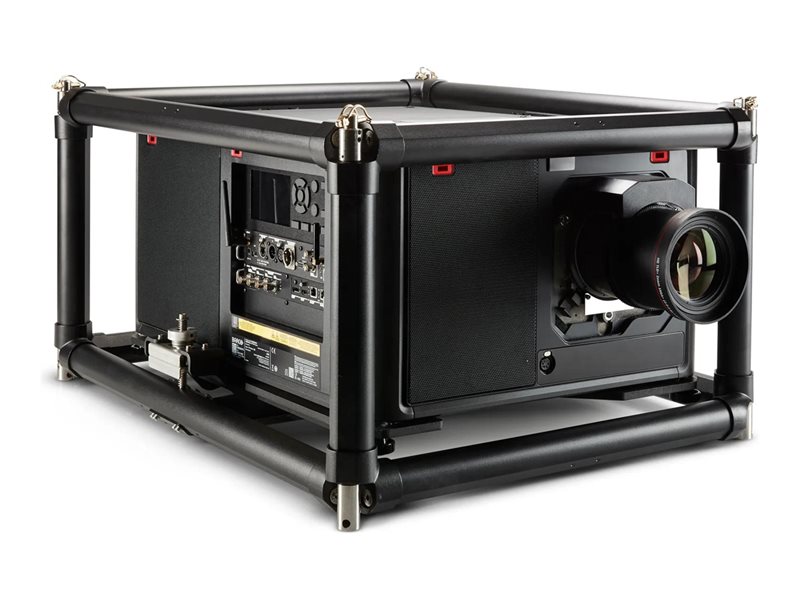

| Product Description | Barco UDM-4K30 - DLP projector - no lens - 3D |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Built-in Devices | Status LCD, keypad |
| Microdisplay | DMD Chip |
| Brightness | 25000 ANSI lumens |
| Contrast Ratio | 2000:1 / 20000:1 (dynamic) |
| Resolution | 2560 x 1600 |
| Native Aspect Ratio | 16:10 |
| Lens | No lens |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Power | AC 120-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 28.5 in x 21.3 in x 13.3 in |
| Weight | 105.82 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Built-in Devices | Status LCD, keypad |
| Networking | Ethernet |
| Expansion / Connectivity | |
| Interfaces | 1 x HDBaseT - RJ-45 ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x DisplayPort - 20 pin DisplayPort ¦ 1 x network - RJ-45 ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ Remote control - 3 pin XLR ¦ 1 x BarcoLink ¦ 1 x SDI input ¦ 1 x 3G-SDI input - BNC ¦ 1 x 12G-SDI input - BNC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Wireless / wired remote control |
| Compliant Standards | DisplayPort 1.2, HDCP 2.2, HDCP1.3 |
| Power | |
| Power Source | AC |
| Voltage Required | AC 120-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Sound Emission | 49 dB |
| Video Input | |
| Video Interfaces | 12G-SDI, 3G-SDI, DisplayPort, HDBaseT, HDMI |
| Dimensions & Weight | |
| Width | 28.5 in |
| Depth | 21.3 in |
| Height | 13.3 in |
| Weight | 105.82 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 33.5 in |
| Shipping Depth | 26.2 in |
| Shipping Height | 24.1 in |
| Shipping Weight | 134.48 lbs |
| Projector | |
| Microdisplay | DMD Chip |
| Brightness | 25000 ANSI lumens |
| Contrast Ratio | 2000:1 / 20000:1 (dynamic) |
| Uniformity | 95 % |
| Resolution | WQXGA - 2560 x 1600 (native) / 5120 x 3200 (resized) |
| Native Aspect Ratio | 16:10 |
| Video Bandwidth | 240 Hz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Keystone correction |
| Features | DynamicBlack technology, ScenergiX, picture by picture, 3-chip DLP technology, 24/7 operation, HDR10 compatibility |
| Lens | |
| Type | No lens |
