Screen management system
| Main Specifications | |
|---|---|

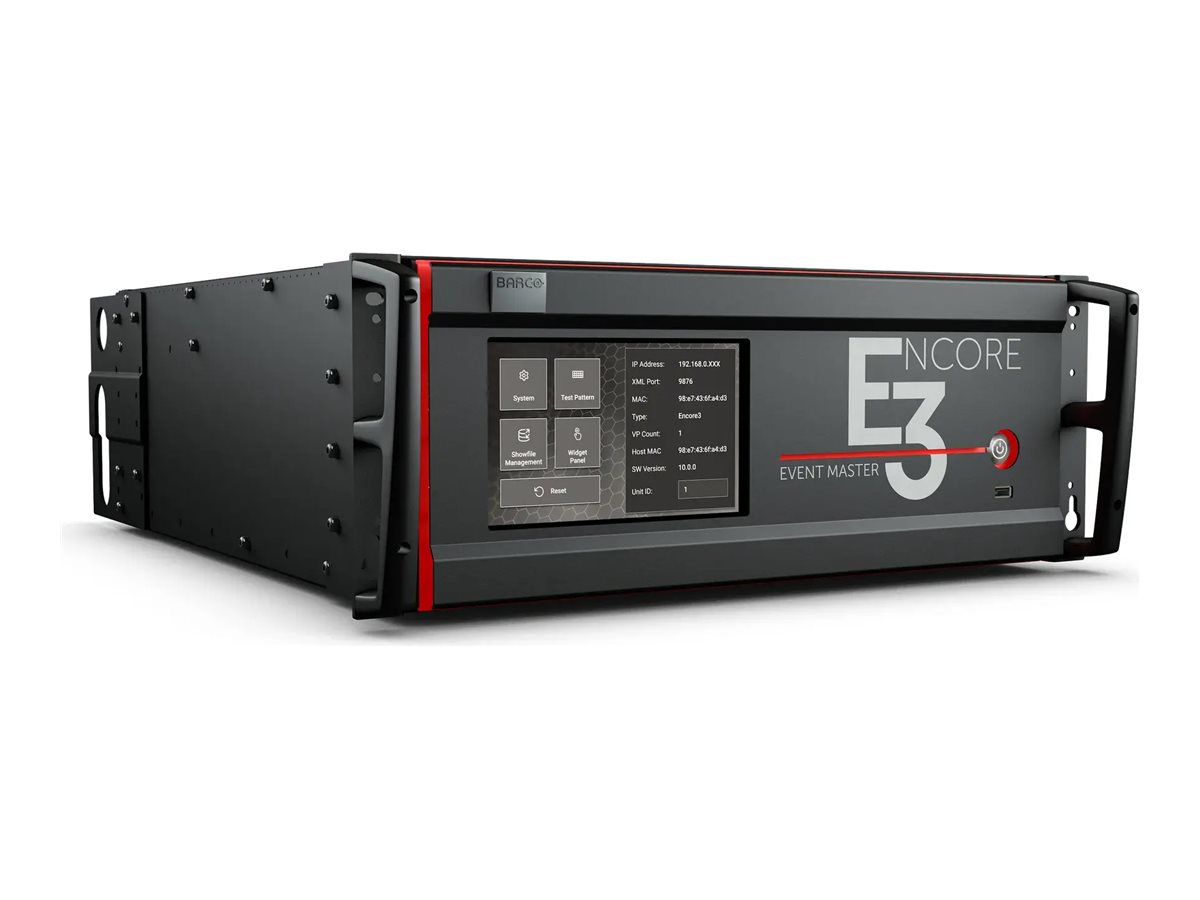

| Product Description | Barco Event Master Encore 3 screen management system |
| Type | Screen management system |
| Dimensions (WxDxH) | 17.4 in - 24.6 in - 7 in |
| Manufacturer Warranty | 3 years |
| General | |
| Type | Screen management system |
| Width | 17.4 in |
| Depth | 24.6 in |
| Height | 7 in |
| Manufacturer Warranty | |
| Warranty | 3 years |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Installed Qty | 2 |
| Frequency | 50/60 Hz |
| Power Consumption | 1100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Terminals | |
| Terminals | (1) x Control-L (LANC) - RJ-45 ¦ (2) x Data input / output - RJ-45 ¦ (1) x LTC Input ¦ (1) x genlock input - BNC ¦ (1) x genlock output - BNC ¦ (1) x USB - USB-C ¦ (4) x SDI input - BNC ¦ (9) x HDMI input - 19 pin HDMI Type A ¦ (5) x DisplayPort input - 20 pin DisplayPort ¦ (4) x SDI output - BNC ¦ (5) x HDMI output - 19 pin HDMI Type A ¦ (1) x DisplayPort output - 20 pin DisplayPort |
| Studio & Production Equipment | |
| Features | 7 input module slots, 4 output module slots, 4K60 signal support, edge blending, multiview support, HDCP compliant, HDR (High Dynamic Range) support, hot-swappable, redundant power supply (optional), rack-mountable, web interface |
