DLP projector - laser/phosphor - 3D - 11500 ANSI lumens - WUXGA (1920 x 1200) - 16:10 - no lens - LAN - black
| Main Specifications | |
|---|---|
| Product Description | Barco G62-W14 - DLP projector - no lens - 3D - LAN - black |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Color | Black |
| Localization | United States |
| Microdisplay | DLP Chip |
| Brightness | 11500 ANSI lumens |
| Contrast Ratio | 1200:1 / 6000:1 (dynamic) |
| Resolution | WUXGA (1920 x 1200) |
| Native Aspect Ratio | 16:10 |
| Lens | No lens |
| Lens Shift Direction | Horizontal, vertical |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Video Input | LAN |
| Video Modes | 4K |
| Platform | Crestron, XiO Cloud |
| Power | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 810 Watt |
| Dimensions (WxDxH) | 19.1 in x 20.8 in x 7.7 in |
| Weight | 50.04 lbs |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | DLP projector |
| 3D Capable | Yes (3D glasses sold separately) |
| Networking | Ethernet |
| Enclosure Color | Black |
| Localization | United States |
| Expansion / Connectivity | |

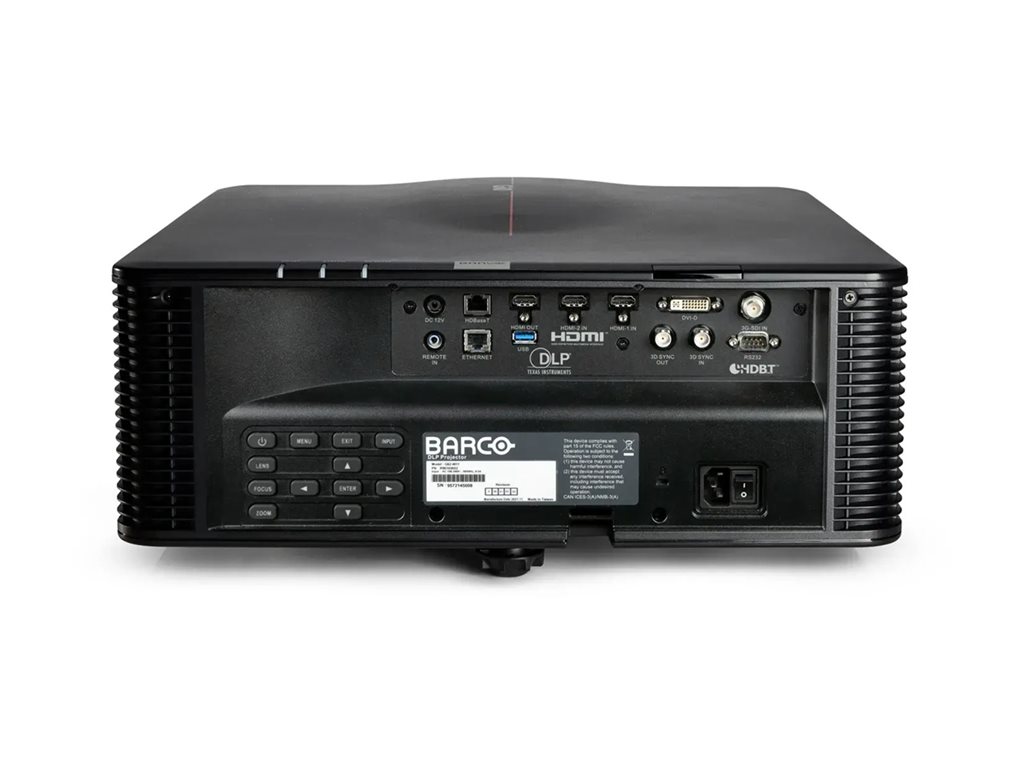

| Interfaces | 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x DVI-D (dual link) - DVI-D ¦ 1 x HDBaseT - RJ-45 ¦ 1 x network - RJ-45 (management) ¦ 1 x 3G-SDI input - BNC ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 1 x remote control - mini-phone 3.5 mm ¦ 1 x 3D Sync in - BNC ¦ 1 x HDMI output - 19 pin HDMI Type A ¦ 1 x 3D Sync out - BNC ¦ 1 x USB - 4 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Included Accessories | Wireless remote control |
| Security Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC-A, cTUVus, CCC, EAC, KCC, RCM, BIS, BSMI |
| Power | |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 810 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Sound Emission | 39 dBA |
| Sound Emission (Economic Mode) | 35 dBA |
| Video Input | |
| Video Interfaces | HDMI, DVI, HDBaseT, 3G-SDI |
| Video Modes | 4K |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Dimensions & Weight | |
| Width | 19.1 in |
| Depth | 20.8 in |
| Height | 7.7 in |
| Weight | 50.04 lbs |
| Projector | |
| Microdisplay | DLP Chip |
| Brightness | 11500 ANSI lumens |
| Contrast Ratio | 1200:1 / 6000:1 (dynamic) |
| Uniformity | 90 % |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Max Sync Rate (V x H) | 60 Hz |
| Lamp Type | Laser/phosphor |
| Lamp Life Cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Keystone correction |
| Features | ExtremeBlack mode, Constant Light Output (CLO), sealed DLP core, wall color correction, embedded warp and blend, Active Stereo 3D, 360° projection |
| Lens | |
| Type | No lens |
| Focus Type | Powered |
| Lens Shift Type | Powered |
| Lens Shift Direction | Horizontal, vertical |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | Crestron, XiO Cloud |
