Wi-Fi system - (router) - up to 3,000 sq.ft - mesh Wi-Fi 7, 2.5GbE, 5GbE, 10GbE Multi-Band
| Main Specifications | |
|---|---|
| Product Description | ASUS ZenWiFi BT10 - Wi-Fi system - Wi-Fi 7 - desktop |
| Device Type | Wi-Fi system - mesh |
| Enclosure Type | Desktop |
| Wi-Fi System Components | Router |
| Wi-Fi System Coverage | Up to 3,000 sq.ft |
| WAN Ports Qty | 2 |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Performance | 5 GHz transfer rate (4x4): 5764 Mbps ¦ 6 GHz transfer rate (4x4): 11529 Mbps ¦ 2.4 GHz transfer rate (2x2): 688 Mbps |
| Network / Transport Protocol | PPTP, L2TP, DDNS, DHCP, PPPoE |
| Intelligent Assistant | Google Assistant |
| Features | Built-in heatsink, IPv6 support, IPv4 support, WPS button, reset button, parental control, scheduler, ASUS Router App, VPN support, Let's Encrypt, Adaptive QoS, 3G/4G USB Dongle Support, 5G/4G router mode, beamforming technology, 320MHz bandwidth support, router mode, AiMesh node mode, Access Point operational mode, ASUS AiMesh, Guest Network, ASUS AiProtection Pro, malicious site blocking, IPSec server, L2TP client, OpenVPN client, OpenVPN server, PPTP client, PPTP VPN server, VPN Fusion, WireGuard, Airtime Fairness, Apple Time Machine compatible, ASUS AiCloud, ASUS AiDisk, Bandwidth Limiter, Bandwidth Monitor, DHCP server, dual WAN connection, external HDD hibernation, FTP server, IGMP snooping, IPTV support, MAC address filtering, MU-MIMO technology, port forwarding, port triggering, RADIUS support, Samba support, Traffic Analyzer, traffic monitoring, WOL, Wireless Scheduler, QoS, OFDMA, ASUS Instant Guard, system log, Explicit Beamforming, auto firmware update, login captcha, PPTP VPN client, IPSec VPN server, L2TP VPN client |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Power | AC 110-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 6.3 in x 2.8 in x 7.3 in |
| General | |
| Device Type | Wi-Fi system - mesh |
| Wi-Fi System Components | Router |
| Wi-Fi System Coverage | Up to 3,000 sq.ft |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6), Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Frequency Band | 2.4 GHz / 5 GHz / 6 GHz |
| Performance | 5 GHz transfer rate (4x4): 5764 Mbps ¦ 6 GHz transfer rate (4x4): 11529 Mbps ¦ 2.4 GHz transfer rate (2x2): 688 Mbps |
| Network / Transport Protocol | PPTP, L2TP, DDNS, DHCP, PPPoE |
| Encryption Algorithm | WPA2-Enterprise, WPA3-Personal, WPS, WPA-Enterprise, WPA2-Personal, WPA-Personal |
| Wi-Fi Rating | BE18000 |
| Mesh Networking | Yes |
| Features | Built-in heatsink, IPv6 support, IPv4 support, WPS button, reset button, parental control, scheduler, ASUS Router App, VPN support, Let's Encrypt, Adaptive QoS, 3G/4G USB Dongle Support, 5G/4G router mode, beamforming technology, 320MHz bandwidth support, router mode, AiMesh node mode, Access Point operational mode, ASUS AiMesh, Guest Network, ASUS AiProtection Pro, malicious site blocking, IPSec server, L2TP client, OpenVPN client, OpenVPN server, PPTP client, PPTP VPN server, VPN Fusion, WireGuard, Airtime Fairness, Apple Time Machine compatible, ASUS AiCloud, ASUS AiDisk, Bandwidth Limiter, Bandwidth Monitor, DHCP server, dual WAN connection, external HDD hibernation, FTP server, IGMP snooping, IPTV support, MAC address filtering, MU-MIMO technology, port forwarding, port triggering, RADIUS support, Samba support, Traffic Analyzer, traffic monitoring, WOL, Wireless Scheduler, QoS, OFDMA, ASUS Instant Guard, system log, Explicit Beamforming, auto firmware update, login captcha, PPTP VPN client, IPSec VPN server, L2TP VPN client |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be |
| Processor | 1 x 2 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Power |
| Expansion / Connectivity | |

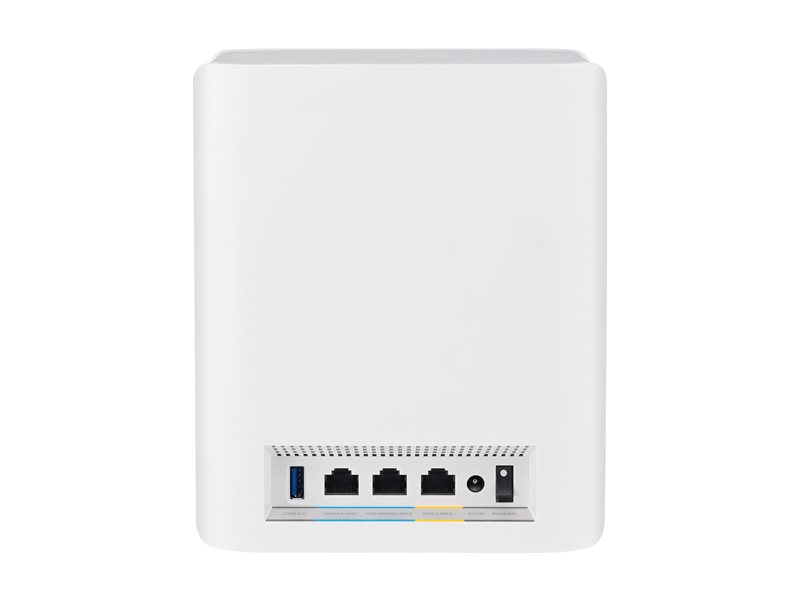

| Interfaces | WAN / LAN: 1 x 10GBase-T - RJ-45 ¦ LAN: 1 x 10GBase-T - RJ-45 ¦ WAN / LAN: 1 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 110-240 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 6.3 in |
| Depth | 2.8 in |
| Height | 7.3 in |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 8 |
| Line Properties | |
| Line Coding Format | 4096 QAM, OFDMA |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Intelligent Assistant | Google Assistant |
