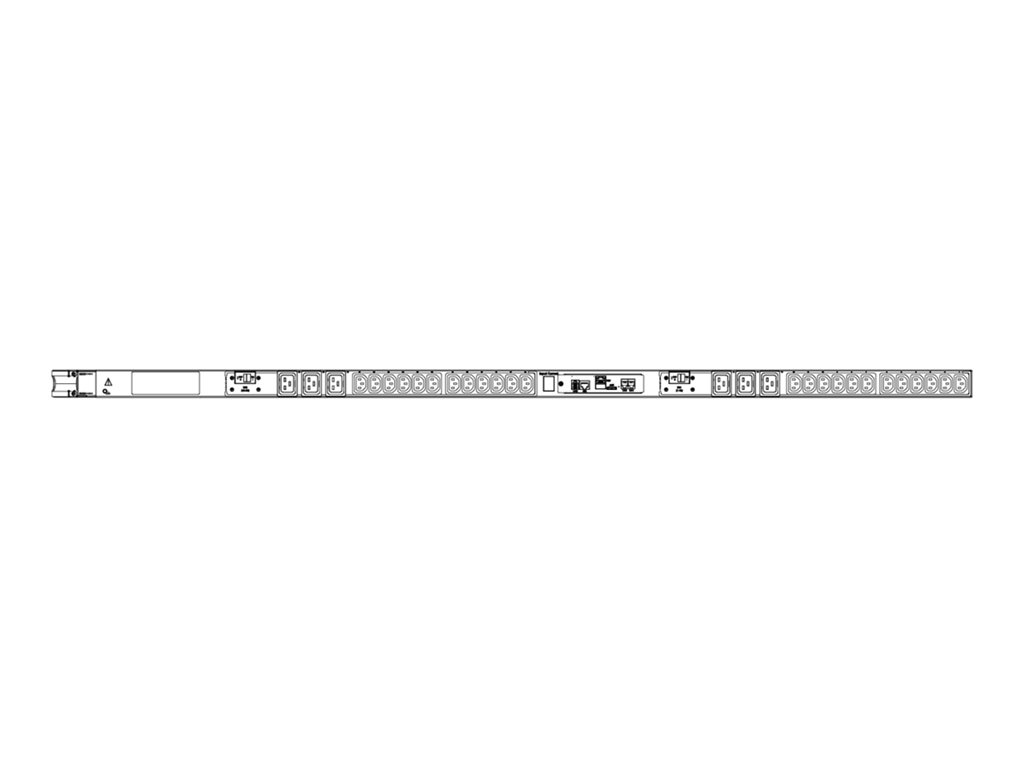

Link - power distribution unit expansion module (rack-mountable) - AC 230 V - 3.6 kW - Ethernet 10/100/1000, RS-232 - output connectors: 30 (24 x IEC 60320 C13, 6 x IEC 60320 C19)
| Main Specifications | |
|---|---|
| Product Description | Server Technology PRO1 Smart PDU SEV-3531J - Link - power distribution unit expansion module - 3.6 kW |
| Device Type | Power distribution unit expansion module - rack-mountable |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V |
| Power Capacity | 3.6 kW |
| Output connectors | 24 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, CLI, SSH-2, Telnet, SNMP 3, SNMP 2c, SFTP |
| Dimensions (WxDxH) | 1.8 in x 2.3 in x 60 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit expansion module - rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x sensor ¦ 1 x cascading - RJ-12 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 2 years |
| Miscellaneous | |
| Features | Current meter, active power meter, energy meter |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | HTTP, HTTPS, CLI, SSH-2, Telnet, SNMP 3, SNMP 2c, SFTP |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Power Device | |
| Input Voltage | AC 230 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 24 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 16 A |
| Power Capacity | 3.6 kW |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 1.8 in |
| Depth | 2.3 in |
| Height | 60 in |
