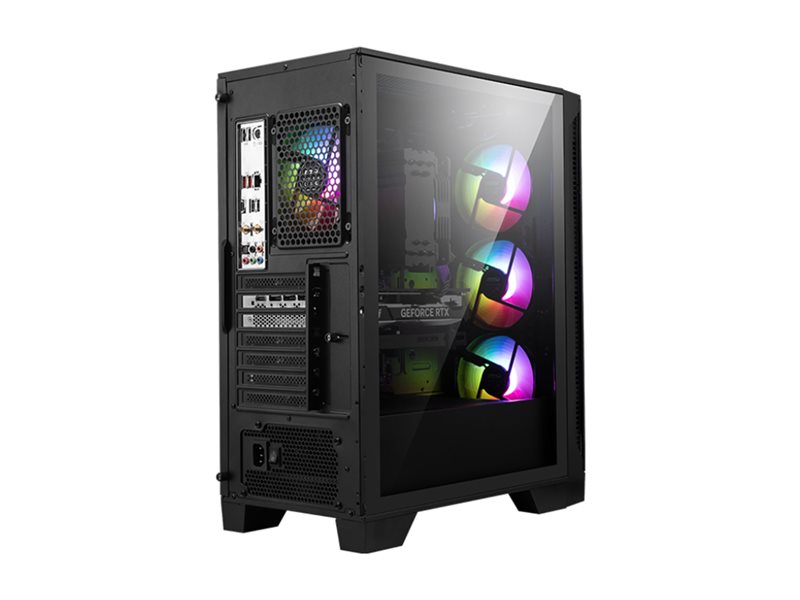

Tower gaming - Core i5 13400F / up to 4.6 GHz - RAM 16 GB - SSD 1 TB - NVMe - GeForce RTX 4060 - IEEE 802.11ax (Wi-Fi 6E), Bluetooth, Gigabit Ethernet - Win 11 Home - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MSI Codex R2 C13NUC5 266US - tower Core i5 13400F 2.5 GHz - 16 GB - SSD 1 TB |
| Type | Personal computer - tower |
| Processor | Intel Core i5 (13th Gen) 13400F / 2.5 GHz (up to 4.6 GHz, (10-core) |
| Cache Memory | 20 MB L3 cache |
| Cache Per Processor | 20 MB |
| RAM | 16 GB DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | NVIDIA GeForce RTX 4060 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Gaming | Yes |
| Audio Output | 7.1 channel surround |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, Bluetooth, 1GbE |
| OS Provided | Windows 11 Home |
| Dimensions (WxDxH) | 8.4 in x 16 in x 19 in |
| Weight | 21.3 lbs |
| Manufacturer Warranty | Limited warranty - 1 year |
| General | |
| Type | Personal computer |
| Product Form Factor | Tower |
| Built-in Devices | Air cooling solution |
| Gaming | Yes |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x internal 2.5" / 3.5" shared ¦ 3 (total) / 3 (free) x internal 2.5" |
| Slots | 2 (total) / 1 (free) x PCIe 4.0 x16 ¦ 3 (total) / 3 (free) x PCIe 3.0 x1 ¦ 2 (total) / 1 (free) x PCIe 4.0 x4 - 2242/2260/2280/22110 |
| Interfaces | 4 x USB 2.0 (4 rear) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 1 x USB-C 3.2 Gen 2 (1 rear) ¦ 2 x microphone - mini-jack (1 front, 1 rear) ¦ 1 x audio line-in - mini-jack (1 rear) ¦ 2 x audio line-out - mini-jack (1 front, 1 rear) ¦ 1 x audio line-in (center/subwoofer) - mini-jack (1 rear) ¦ 1 x audio line-out (rear) - mini-jack (1 rear) ¦ 2 x antenna (2 rear) ¦ 1 x SPDIF output (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x PS/2 keyboard / mouse (1 rear) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Gaming | Yes |
| RAM | |
| Installed Size | 16 GB |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 2 (empty) |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Wireless LAN Supported | Yes |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11g, IEEE 802.11n, Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b |
| Power | |
| Device Type | Power supply |
| Power Provided | 650 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Storage Controller | |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| Cache Memory | |
| Installed Size | L3 cache - 20 MB |
| Cache Per Processor | 20 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | NVIDIA GeForce RTX 4060 |
| Video Memory | 8 GB GDDR6 SDRAM |
| Video Interfaces | DisplayPort, HDMI |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Input Device | |
| Type | Keyboard, mouse |
| Dimensions & Weight | |
| Width | 8.4 in |
| Depth | 16 in |
| Height | 19 in |
| Weight | 21.3 lbs |
| Processor / Chipset | |
| CPU | Intel Core i5 (13th Gen) 13400F |
| Clock Speed | 2.5 GHz (P-core) / 1.8 GHz (E-core) |
| Max Turbo Speed | 4.6 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Chipset Type | Intel H610 |
