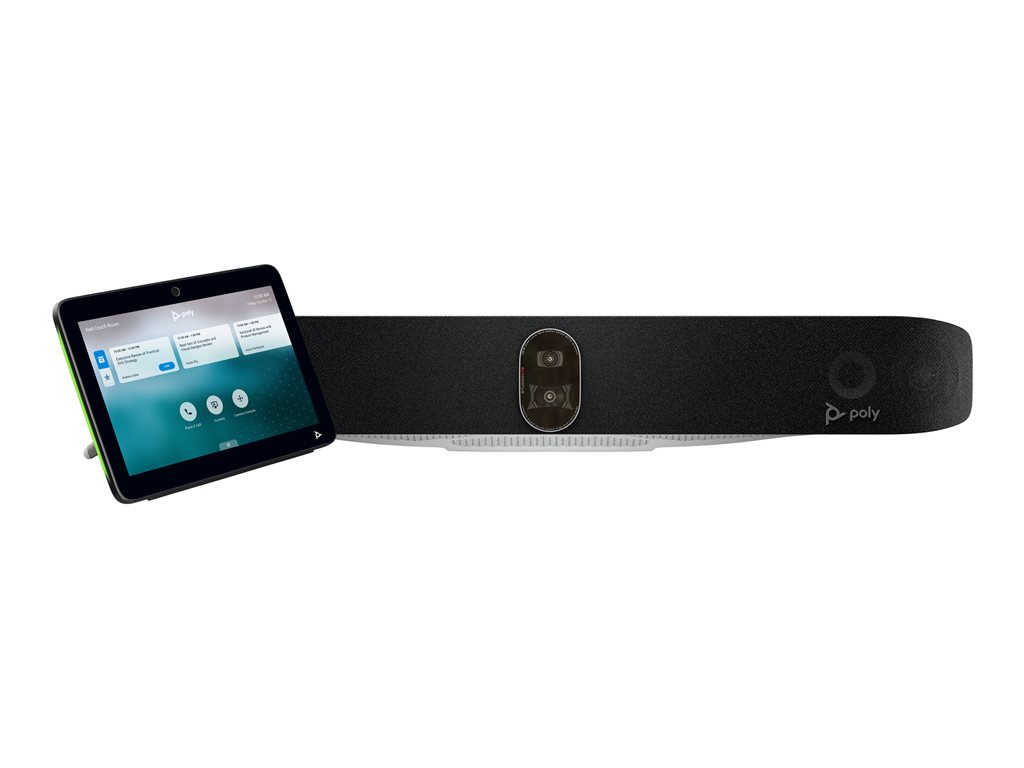

All-in-One video bar (video bar, Poly TC10 touch controller) - Zoom Certified, Certified for Microsoft Teams - black - TAA Compliant - power adapter included
| Main Specifications | |
|---|---|
| Product Description | HP Poly Studio X72 No Radio - TAA Compliant - power adapter included |
| Device Type | All-in-One video bar |
| Kit Content | Video bar, Poly TC10 touch controller |
| VoIP Protocols | H.323, SIP |
| Codec | H.265, H.264 High Profile, H.264 AVC, G.711, G.722, G.728, G.729a, Siren, G.722.1, G.722.1c, G.719 |
| Localization | English / United States |
| Video Input | Digital camera - HDMI |
| Video Output | 3840 x 2160 |
| Audio Input | Four microphones |
| Audio Output | Speaker(s) - stereo |
| Input Device | 10.1" touchscreen |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Power | AC 120/230 V (50/60 Hz) |
| TAA Compliant | Yes |
| Software Certification | Zoom Certified, Certified for Microsoft Teams |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | All-in-One video bar |
| Kit Content | Video bar, Poly TC10 touch controller |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.728, G.729a, Siren, G.722.1, G.722.1c, G.719 |
| Video Codecs | H.265, H.264 High Profile, H.264 AVC |
| Security | 128-bit AES, 256-bit AES, TLS, H.235.6 |
| Network Features | Local account password policy configuration, security profiles, secure defaults, remote logging with support for TLS, active directory external authentication |
| Dimensions & Weight Details | Touch screen - Width 10.2 in Depth 7.2 in Height 2.5 in Weight 2.8 lbs ¦ Video bar - Width 33.1 in Depth 5.3 in Height 4.6 in Weight 7.3 lbs |
| Built-in Devices | Stereo speakers, dual camera, 2 MEMS microphones, 2 2nd order microphones |
| Enclosure Color | Black |
| Localization | English / United States |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - line-in ¦ 1 x audio - line-out |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x network cable ¦ 2 x HDMI cable |
| Included Accessories | Wall mount kit |
| Software Certification | Zoom Certified, Certified for Microsoft Teams |
| Compliant Standards | JITC |
| TAA Compliant | Yes |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPv4, IPv6 |
| Features | MIMO technology, Polycom Lost Packet Recovery (LPR) technology, Simple Certificate Enrollment Protocol (SCEP), digest authentication, Automatic Media-Dependent Interface Crossover (MDIX), dynamic bandwidth allocation, reconfigurable MTU size, NT LAN Manager (NTLM) |
| Performance | Frame rate: 5 - 30 fps |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Poly Lens management software |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% |
| Audio Output | |
| Type | Speaker(s) |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | Four microphones - integrated |
| Input Device | |
| Type | 10.1" touchscreen |
| Video Input | |
| Type | Digital camera - integrated |
| Interface Type | HDMI |
| Digital Video Capture Resolution | 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050 |
| Video Modes | 1080/30p, 720/30p, 4K/30p |
| Digital Zoom | 7.3 |
| Features | 120° field of view (horizontal), 70° field of view (horizontal), 78° diagonal field of view, 140° field of view (diagonal), Poly NoiseBlockAI technology, Poly Acoustic Fence technology, Poly DirectorAI technology, 2x 20 megapixels sensors, security slot (Kensington security lock compatible), speaker framing, USB Device mode, Group framing, People framing, 7.62 m microphone pickup range |
| Video Output | |
| Max External Resolution | 3840 x 2160 |
| Supported Display Graphics | XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.4 in |
| Shipping Depth | 10.6 in |
| Shipping Height | 37 in |
| Shipping Weight | 19.84 lbs |
