Video conferencing kit (video bar, Poly TC10 touch controller) - Zoom Certified, Certified for Microsoft Teams - black - TAA Compliant - power adapter included
| Main Specifications | |
|---|---|
| Product Description | HP Poly Studio X72 - video conferencing kit - TAA Compliant - power adapter included |
| Device Type | Video conferencing kit |

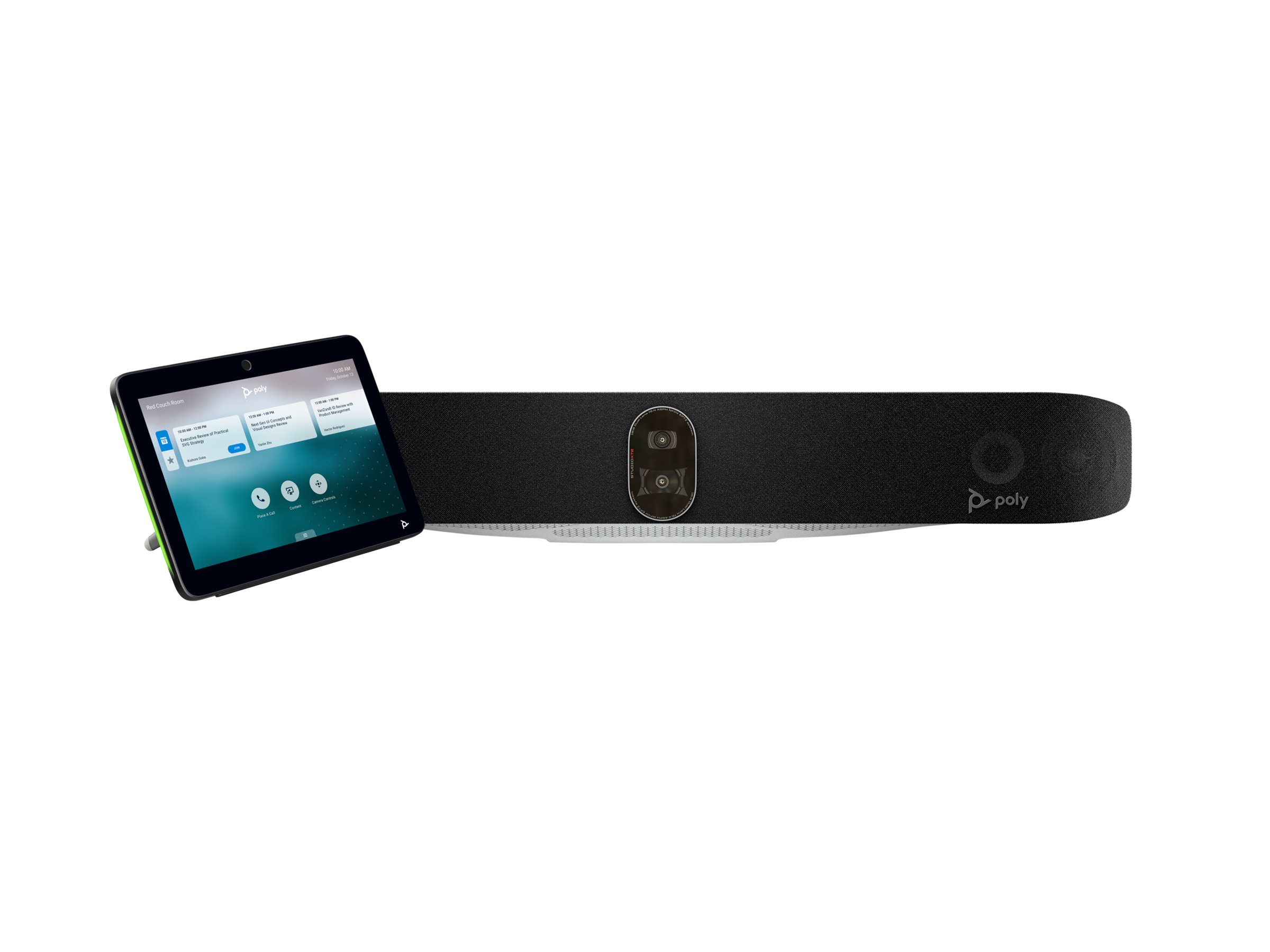

| Kit Content | Video bar, Poly TC10 touch controller |
| VoIP Protocols | H.323, SIP |
| Codec | H.265, H.264 High Profile, H.264 AVC, G.711, G.722, G.728, G.729a, Siren, G.722.1, G.722.1c, G.719 |
| Localization | English / United States |
| Video Input | Digital camera - HDMI |
| Video Output | 3840 x 2160 |
| Audio Input | Four microphones |
| Audio Output | Speaker(s) - stereo |
| Input Device | 10.1" touchscreen (wireless, wired) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Power | AC 120/230 V (50/60 Hz) |
| TAA Compliant | Yes |
| Software Certification | Zoom Certified, Certified for Microsoft Teams |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | Video bar, Poly TC10 touch controller |
| VoIP Protocols | H.323, SIP |
| Voice Codecs | G.711, G.722, G.728, G.729a, Siren, G.722.1, G.722.1c, G.719 |
| Video Codecs | H.265, H.264 High Profile, H.264 AVC |
| Security | 128-bit AES, 256-bit AES, TLS, H.235.6 |
| Dimensions & Weight Details | Touch screen - Width 10.2 in Depth 2.5 in Height 7.2 in Weight 2.8 lbs ¦ Video bar - Width 33.1 in Depth 5.3 in Height 4.6 in Weight 7.3 lbs |
| Built-in Devices | Stereo speakers, dual camera, 2 MEMS microphones, 2 2nd order microphones |
| Enclosure Color | Black |
| Localization | English / United States |
| Expansion / Connectivity | |

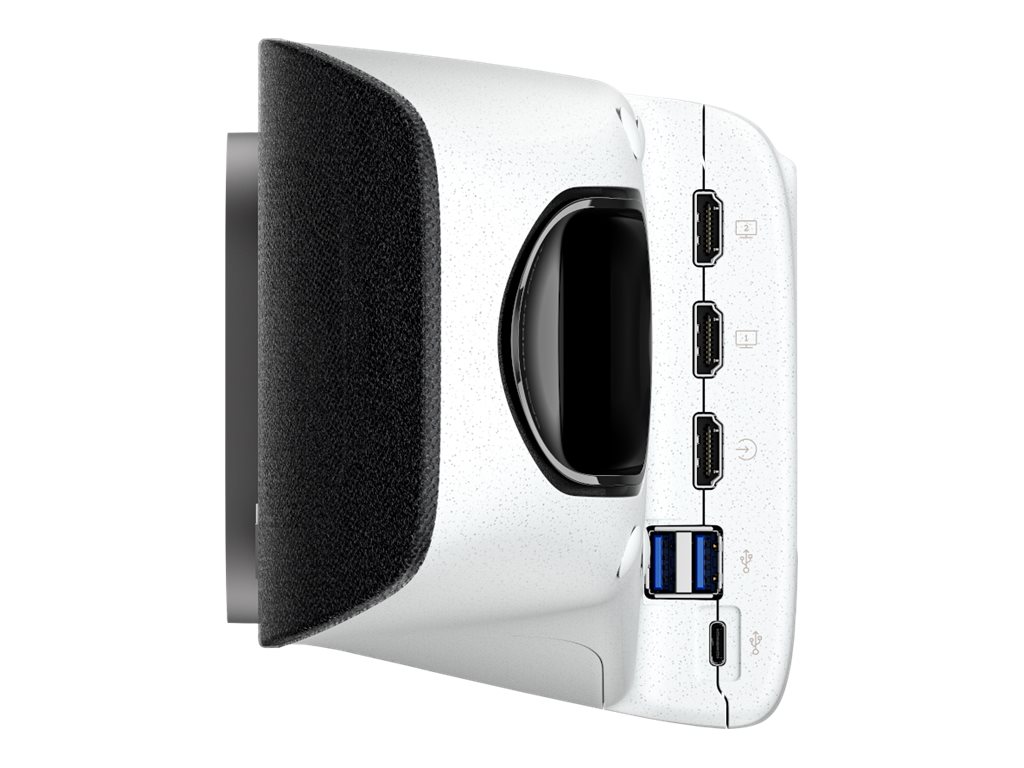

| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 1 - 24 pin USB-C ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - line-in - mini-phone 3.5 mm ¦ 1 x audio - line-out |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x network cable ¦ 2 x HDMI cable |
| Included Accessories | Wall mount kit |
| Software Certification | Zoom Certified, Certified for Microsoft Teams |
| TAA Compliant | Yes |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPv4, IPv6 |
| Features | Polycom Lost Packet Recovery (LPR) technology, Simple Certificate Enrollment Protocol (SCEP), digest authentication, Automatic Media-Dependent Interface Crossover (MDIX), dynamic bandwidth allocation, reconfigurable MTU size, NT LAN Manager (NTLM) |
| Performance | Frame rate: 5 - 30 fps |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Poly Lens management software |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% |
| Audio Output | |
| Type | Speaker(s) |
| Sound Output Mode | Stereo |
| Audio Input | |
| Type | Four microphones - integrated |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wireless, wired |
| Features | LED backlight, 1280 x 800 resolution, IPS screen |
| Video Input | |
| Type | Digital camera (color) - integrated |
| Interface Type | HDMI |
| Digital Video Capture Resolution | 1280 x 720, 1600 x 1200, 1024 x 768, 1280 x 1024, 800 x 600, 1280 x 768, 1920 x 1080, 3840 x 2160, 1680 x 1050 |
| Video Modes | 1080/30p, 720/30p, 4K/30p |
| Digital Zoom | 7.3 |
| Features | 120° field of view (horizontal), 70° field of view (horizontal), 78° diagonal field of view, 140° field of view (diagonal), Poly NoiseBlockAI technology, Poly Acoustic Fence technology, Poly DirectorAI technology, 2x 20 megapixels sensors, security slot (Kensington security lock compatible) |
| Video Output | |
| Max External Resolution | 3840 x 2160 |
| Supported Display Graphics | XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), WUXGA (1920 x 1200), HD (1280 x 720), WSXGA+ (1680 x 1050), UHD (3840 x 2160) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.4 in |
| Shipping Depth | 10.6 in |
| Shipping Height | 37 in |
| Shipping Weight | 19.84 lbs |
