Video signal processor
| Main Specifications | |
|---|---|

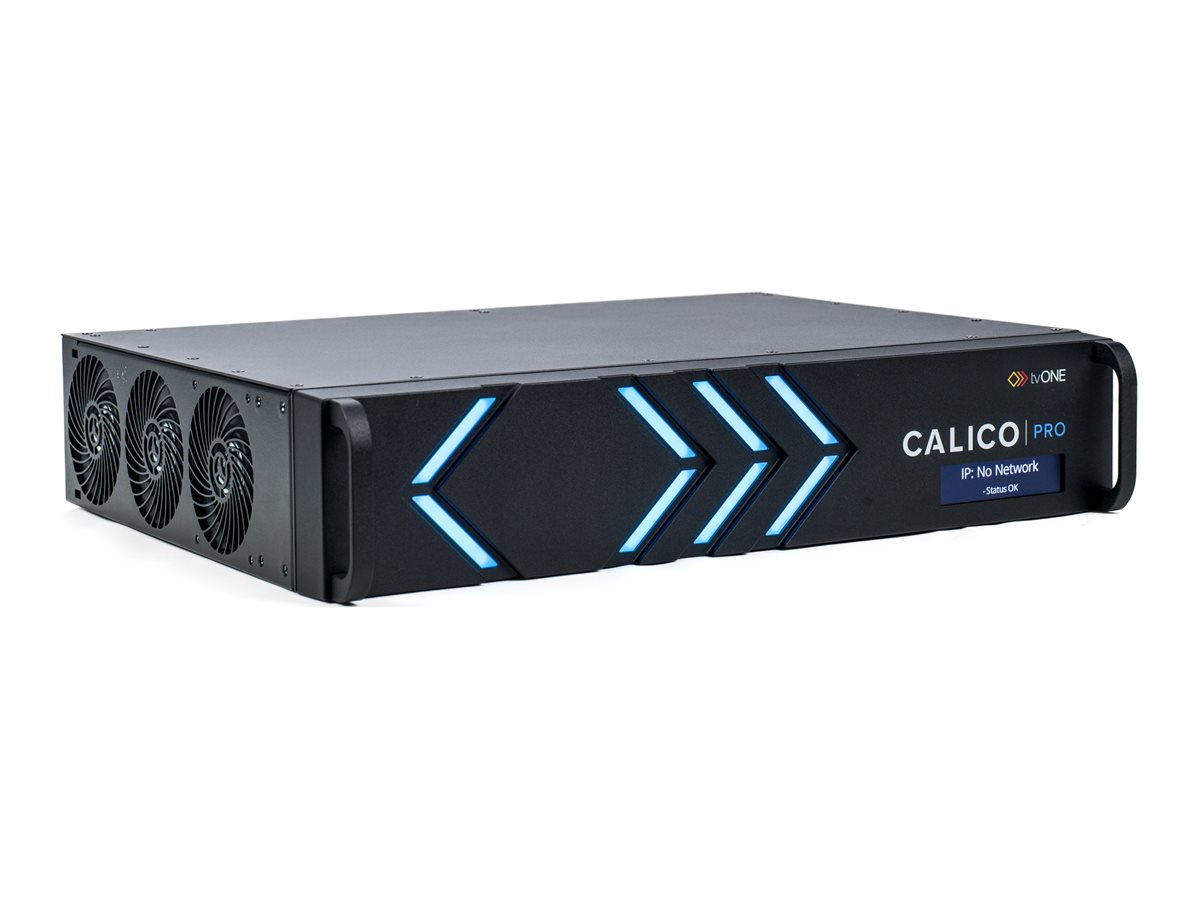

| Product Description | TV One CALICO PRO C7-PRO-2200 video signal processor |
| Type | Video signal processor |
| Dimensions (WxDxH) | 17.1 in - 14.3 in - 3.5 in |
| Weight | 22.05 lbs |
| Manufacturer Warranty | 5 year limited warranty |
| General | |
| Type | Video signal processor |
| Width | 17.1 in |
| Depth | 14.3 in |
| Height | 3.5 in |
| Weight | 22.05 lbs |
| Manufacturer Warranty | |
| Warranty | 5 year limited warranty |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 250 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Terminals | |
| Terminals | (8) x HDMI input - 19 pin HDMI Type A ¦ (1) x REF input - BNC ¦ (1) x loop terminal - BNC ¦ (4) x HDMI output - 19 pin HDMI Type A ¦ (2) x NET - RJ-45 ¦ (1) x USB 3.0 - 9 pin USB Type A ¦ (1) x console - Micro-USB Type B |
| Studio & Production Equipment | |
| Features | 2U rack-mountable, 4K60 4:2:2 10 bit signal support, 4K60 4:4:4 8 bit signal support, modular design, LED indicators, HDCP 2.2 compliant, HDCP 1.4 compliant, FTP support, BMP format support, JPEG format support, HDR (High Dynamic Range) support, IPv4 support, HTTP support, HTTPS support, TCP/IP support, redundant power supply (optional), HDR10 support, HLG support, EDID support, AES-128 encryption, TLS suport, aluminum front panel, metal enclosure, 24/7 operation, fan cooling |
